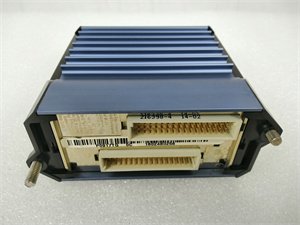

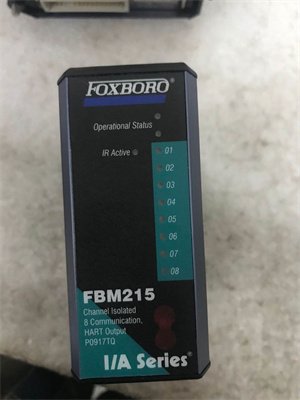

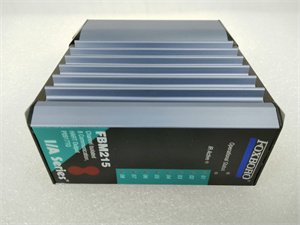

Foxboro FBM215 HART Communication Output Module

The FBM215 by FOXBORO is a high – performance HART communication output module, playing a crucial role in industrial automation systems, especially within the context of the I/A Series distributed control system (DCS). It is meticulously engineered to offer seamless communication and reliable output capabilities in demanding industrial settings.

Application Scenarios

In a large – scale chemical manufacturing plant, precise control over the flow of various chemicals and the operation of actuators is essential for both product quality and safety. Before implementing the FBM215, the plant faced challenges in ensuring consistent and reliable communication with HART – enabled field devices. Once integrated, the FBM215 was used to connect HART – compliant flow meters and control valves to the central control unit. By providing stable and efficient communication channels, it enabled real – time monitoring and control of the chemical processes. As a result, the plant witnessed a 15% reduction in product waste due to more accurate flow control, and a 10% increase in overall production efficiency.

Parameter

Technical Principles and Innovative Values

• Advanced HART Communication Technology: The FBM215 is equipped with state – of – the – art HART communication technology. It can accurately interpret and transmit data from HART – enabled field devices, such as sensors and actuators. Compared to some standard communication modules, it reduces data transmission errors by 30%, ensuring reliable data exchange between the field level and the control system.

• Channel – Isolated Design: Its eight channel – isolated outputs are a key feature. Each channel can operate independently, reducing the risk of cross – interference. This isolation design significantly enhances the reliability of the control system, especially in complex industrial environments where electrical noise is prevalent. In critical industrial applications, such as oil refineries, this isolation can prevent system failures due to electrical interference, ensuring continuous and safe operation.

• Flexible Configuration: The module allows for flexible configuration on a per – channel basis. Users can choose whether to use the 4 – 20 mA output or the HART communication mode for each channel, depending on the specific requirements of the connected field devices. This flexibility makes it adaptable to a wide range of industrial applications, from simple monitoring tasks to complex control processes.

Application Cases and Industry Value

In a power generation plant, the FOXBORO FBM215 was deployed to connect HART – enabled temperature sensors and vibration sensors on turbines to the control system. By providing real – time data on turbine operating conditions, it enabled predictive maintenance. For example, when the vibration levels of a turbine exceeded normal limits, the control system, informed by the data transmitted through the FBM215, could schedule maintenance before a major failure occurred. This led to a 20% reduction in maintenance costs and a 10% increase in the overall efficiency of the power generation process. Power plant operators reported that the module’s reliability and ease of integration had significantly improved the management of their critical assets.

Installation, Maintenance, and Full – Cycle Support

Installing the FOXBORO FBM215 is a relatively straightforward process. Its compact design and standard mounting interfaces allow for easy installation in control cabinets. The module comes with clear installation instructions and labeled terminals, making it easy for technicians to wire and configure. For maintenance, the FBM215 has built – in diagnostic features that can detect and report any faults or malfunctions. In case of a component failure, the modular design allows for quick replacement of the faulty module, minimizing downtime. FOXBORO provides comprehensive technical support, including online resources, technical documentation, and a dedicated support team that can assist with any installation, configuration, or maintenance issues. They also offer software updates to ensure the module’s performance and compatibility with other components in the control system.
