GE Fanuc IC693CPU363 Series 90-30 CPU Module

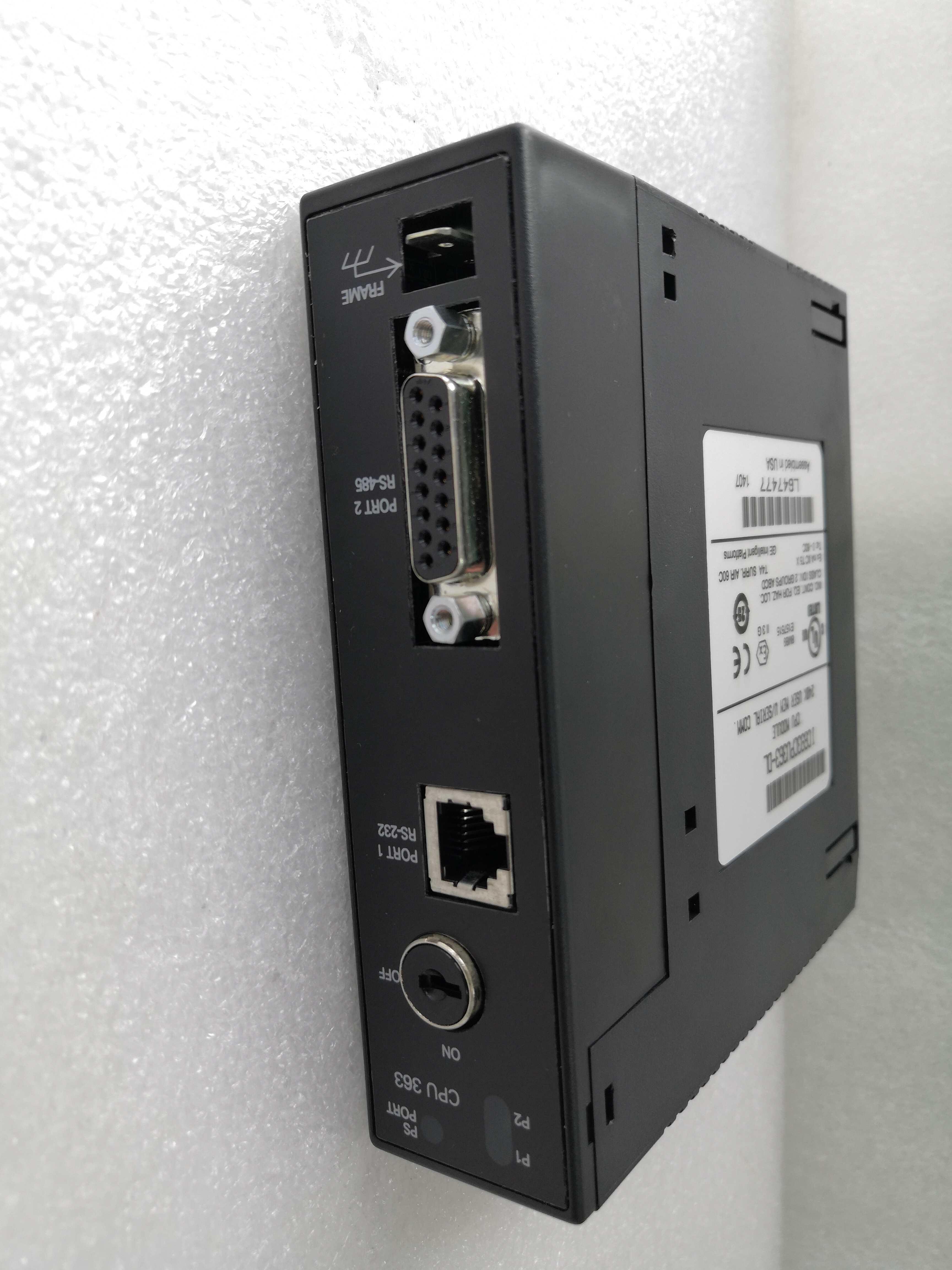

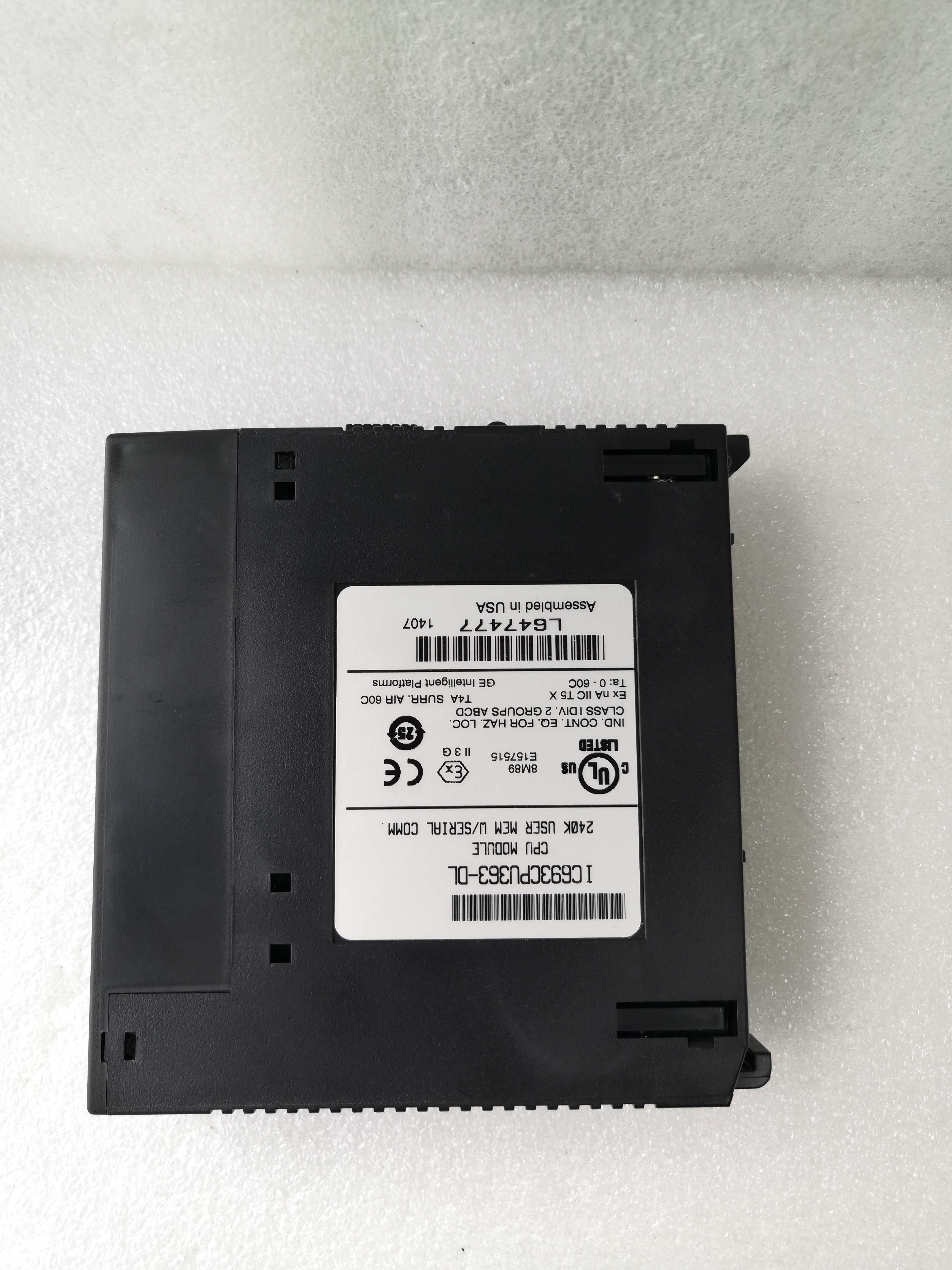

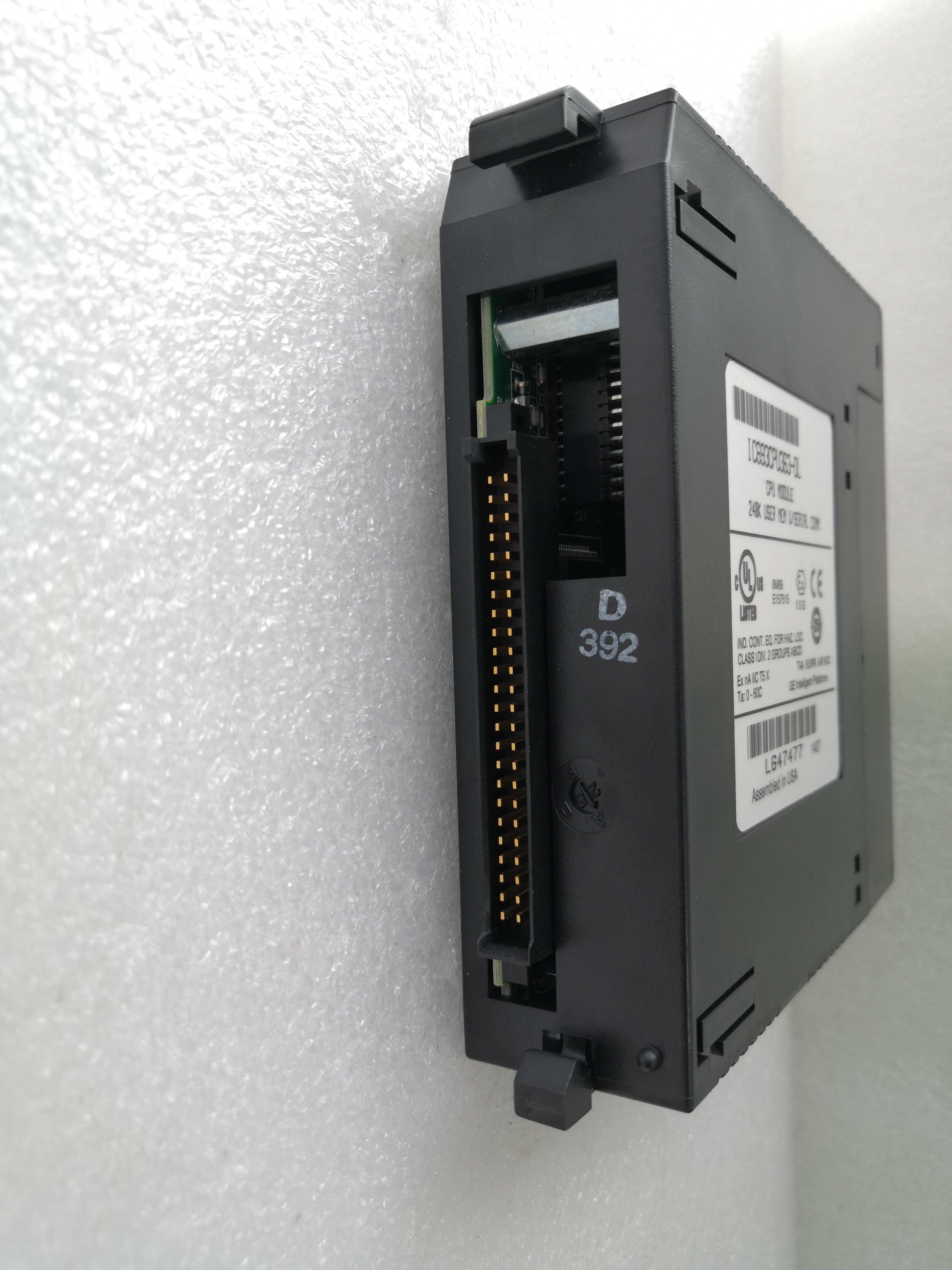

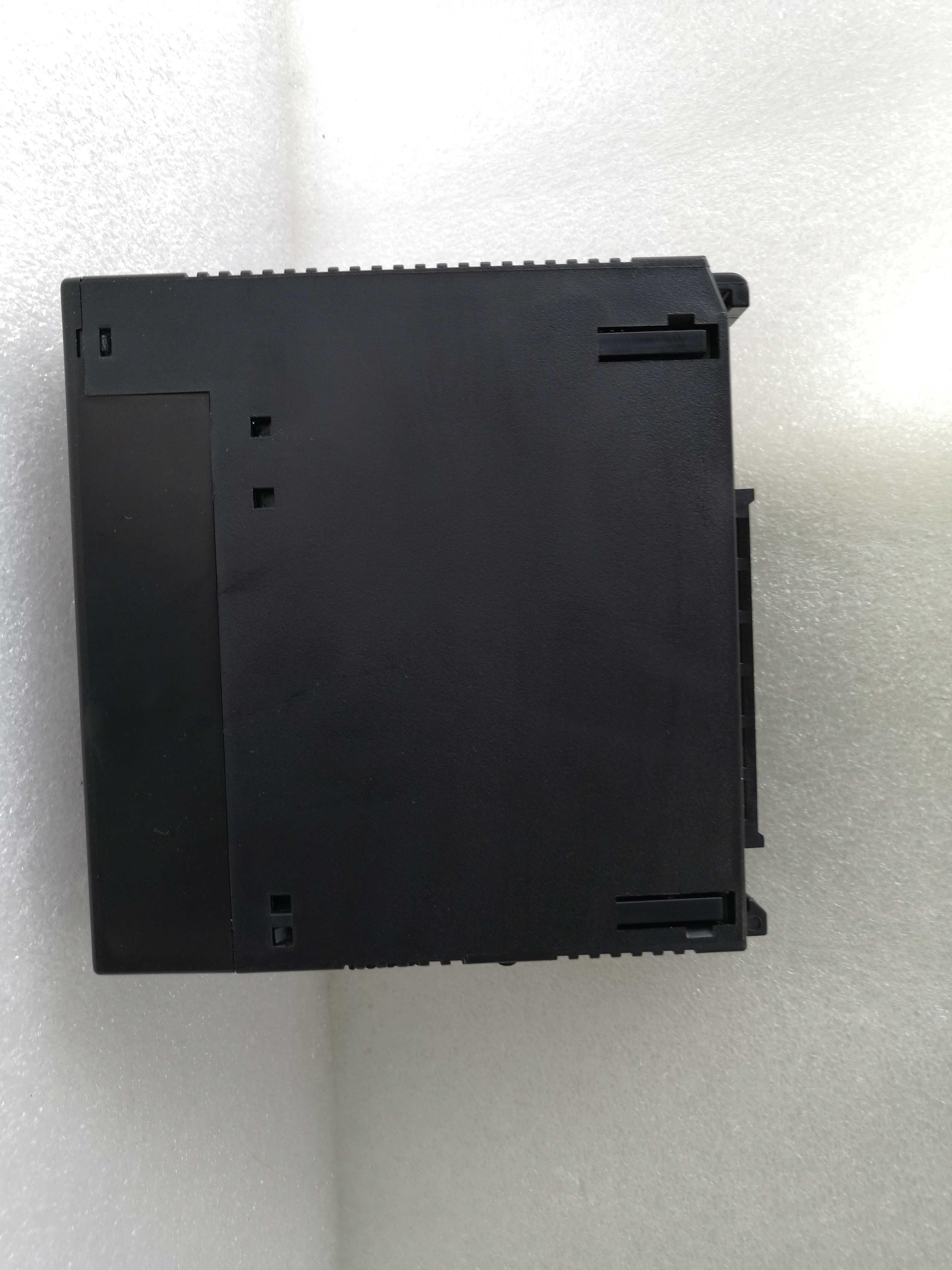

The GE Fanuc IC693CPU363 is a high-performance single-slot CPU module designed for industrial automation, part of the Series 90-30 PLC family. Equipped with a 25 MHz 80386EX processor and 240 KB configurable user memory, the IC693CPU363 delivers advanced control capabilities for complex logic, high-speed data processing, and multi-protocol communication. Its three built-in serial ports (RS232/RS485) and support for protocols like Ethernet, Profibus, and FIP enable seamless integration with HMIs, SCADA systems, and remote I/O modules. Ideal for harsh environments (0–60°C operation), the module features flash memory for firmware updates, battery-backed real-time clock, and floating-point math support (via firmware v9.0+), making it suitable for manufacturing, energy, and process control applications.

Product Parameters

Advantages and Features

1. Multi-Protocol Connectivity: Three serial ports (2 front-panel, 1 power-supply) support SNP/SNP-X, RTU, and legacy GE protocols, reducing hardware costs.
2. Flexible Memory Configuration: 240 KB user memory configurable via LogicMaster (16,384 words) or Control V2.2 (32,640 words) for complex applications.
3. High Reliability: Industrial-grade design with wide temperature range and flash memory for firmware updates without EPROM replacement.

Application Areas and Use Cases

• Industries: Manufacturing, packaging, water treatment, and material handling.
• Use Case:

  A water treatment plant integrated the IC693CPU363 to manage pump systems and chemical dosing. Its three serial ports enabled simultaneous communication with sensors (RS485), HMIs (RS232), and a SCADA system (Ethernet module). The module’s 240 KB memory stored complex PID algorithms, reducing manual adjustments by 30% and improving process efficiency.

Competitor Comparison

Compared to similar CPUs (e.g., Allen-Bradley Micro830 or Siemens S7-1200):

• Higher I/O Density: 2,048 points vs. ~256 in entry-level models.
• Legacy Compatibility: Seamless integration with GE Fanuc Series 90-30 I/O (e.g., IC693MDL730, IC693PWR330H) and software.
• Multi-Port Architecture: Three serial ports (vs. 1–2 in competitors) for concurrent device connectivity.

Selection Recommendations

1. Compatibility: Ensure alignment with Series 90-30 baseplates (e.g., IC693CHS392) and I/O modules.
2. Memory Requirements: Choose based on application complexity (e.g., 128–32,640 words for register memory).
3. Communication Needs: Use optional Ethernet/Profibus modules for networked systems.
4. Environment: Verify temperature/humidity conditions (0–60°C operation).

Precautions

1. Power Stability: Use a regulated +5 VDC supply (890 mA max) to avoid voltage drops.

2. Firmware Updates: Regularly update flash firmware via serial port for protocol support (e.g., floating-point math in v9.0+).

3. Grounding: Connect frame ground to reduce EMI interference.

4. Battery Replacement: Replace the clock battery (GE part 44A725214-001) every 5–7 years.
