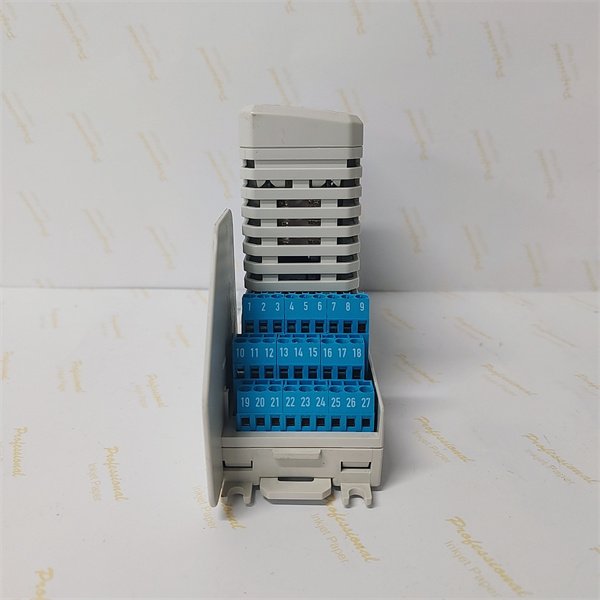

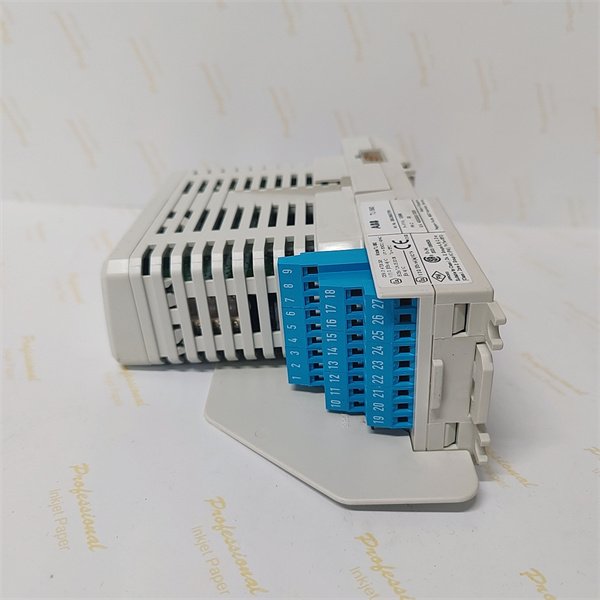

ABB AI895 3BSC690089R1 8-Channel Analog Input Module

The ABB AI895 3BSC690089R1 is a high-precision analog input module designed for ABB’s AC 800M distributed control system (DCS) and S800 I/O platform, serving as a critical interface for converting real-world process signals into digital data for industrial automation. Engineered to handle up to 8 channels of analog input signals, the ABB AI895 3BSC690089R1 supports a wide range of signal types, including 4–20 mA current loops, 0–10 V DC voltage signals, and resistive sensors, making it ideal for applications requiring precise measurement of parameters such as temperature, pressure, flow, and level in industries like chemical, pharmaceutical, and energy. As part of ABB’s modular automation ecosystem, this module ensures seamless integration with control processors, HMIs, and cloud-based monitoring systems via industrial protocols, enabling real-time process optimization and predictive maintenance.

Featuring a rugged, DIN rail-mountable design, the ABB AI895 3BSC690089R1 incorporates advanced signal conditioning, electrical isolation (2.5 kV AC), and anti-aliasing filters to deliver ±0.05% measurement accuracy with 16-bit resolution. Its hot-swappable functionality allows for live replacement without disrupting system operation, minimizing downtime in critical processes. The module’s compatibility with ABB’s Control Builder M software enables easy configuration of signal scaling, linearization, and alarm thresholds, while built-in diagnostics (e.g., open circuit, short circuit detection) enhance system reliability by identifying faults proactively.

Technical Specifications

Main Features and Advantages

Ultra-precision signal conditioning: The AI895 3BSC690089R1 leverages advanced digital filtering to eliminate noise from analog signals, critical for high-precision applications like pharmaceutical batch processing. A biotech company achieved ±0.1% measurement repeatability in fermentation tank pressure monitoring, reducing quality control deviations by 25%.

Flexible multi-signal compatibility: Each channel can be independently configured for current, voltage, or RTD inputs via software, eliminating the need for dedicated modules. A food processing plant used this feature to standardize on a single module for monitoring conveyor belt speeds (4–20 mA), steam pressure (0–10 V), and oven temperatures (Pt100 RTDs), reducing inventory costs by 30%.

Rugged industrial resilience: With 2.5 kV AC isolation and surge protection (4 kV), the module withstands extreme electromagnetic interference (EMI) from high-power motors and welding equipment. A steel mill reported a 60% reduction in signal anomalies after deploying the AI895 3BSC690089R1 in its rolling mill’s temperature monitoring system, ensuring uninterrupted data flow during peak production.

Hot-swappable design and diagnostics: The module supports live replacement, allowing maintenance teams to replace faulty channels during operation, as demonstrated in a beverage bottling plant that avoided a $10,000 production loss by replacing a channel without stopping the line. Its front-panel LED indicators and Control Builder M’s diagnostic interface provide real-time status updates, including channel-specific fault codes for rapid troubleshooting.

Application Field

Process industries: In chemical refineries, the AI895 3BSC690089R1 monitors critical process variables like reactor pressure (4–20 mA) and distillation column temperatures (Pt500 RTDs), enabling precise control of exothermic reactions. A petrochemical plant achieved a 5% improvement in energy efficiency by using the module’s real-time data to optimize cooling water flow rates, reducing annual energy costs by $200,000.

High-precision manufacturing: For semiconductor fabrication, the module measures cleanroom humidity (0–5 V signals) and gas flow rates (mass flow controllers) with sub-millivolt resolution. A leading chipmaker reduced process variability by 18% in thin-film deposition by leveraging the AI895 3BSC690089R1’s low-drift design, ensuring tight control of deposition thickness.

Energy and utilities: In combined-cycle power plants, the module monitors turbine inlet temperatures (via RTDs) and steam flow rates (4–20 mA), enabling predictive maintenance of critical assets. A 400 MW plant reduced unplanned outages by 30% by using trend analysis of module data to identify early signs of heat exchanger fouling.

Installation and Maintenance

Pre-installation preparation: Mount the AI895 3BSC690089R1 in a grounded S800 I/O rack, ensuring 20 mm clearance for airflow. Use shielded twisted-pair cables for analog signals, segregating them from power cables to mitigate EMI. Configure channel parameters (e.g., signal type, calibration factors) via Control Builder M, and validate connections using the module’s built-in self-test function to ensure accurate signal acquisition.

Maintenance recommendations: Perform quarterly inspections of terminal connections using a torque wrench (2–4 Nm) to ensure secure wiring, particularly in high-vibration environments. In dusty or humid settings, clean module vents with compressed air and check for corrosion on terminal blocks. Leverage the module’s diagnostic tools to verify signal integrity (e.g., loop current checks) and update firmware annually to access enhanced noise filtering and new signal compatibility.

Product Guarantee

ABB guarantees the AI895 3BSC690089R1 to meet performance specifications for 36 months from delivery, backed by rigorous testing for EMC compliance (IEC 61000-6-2), thermal stability, and long-term reliability. The module’s design adheres to IEC 61131-2 standards, ensuring suitability for SIL 2-rated safety systems when paired with compatible components.
