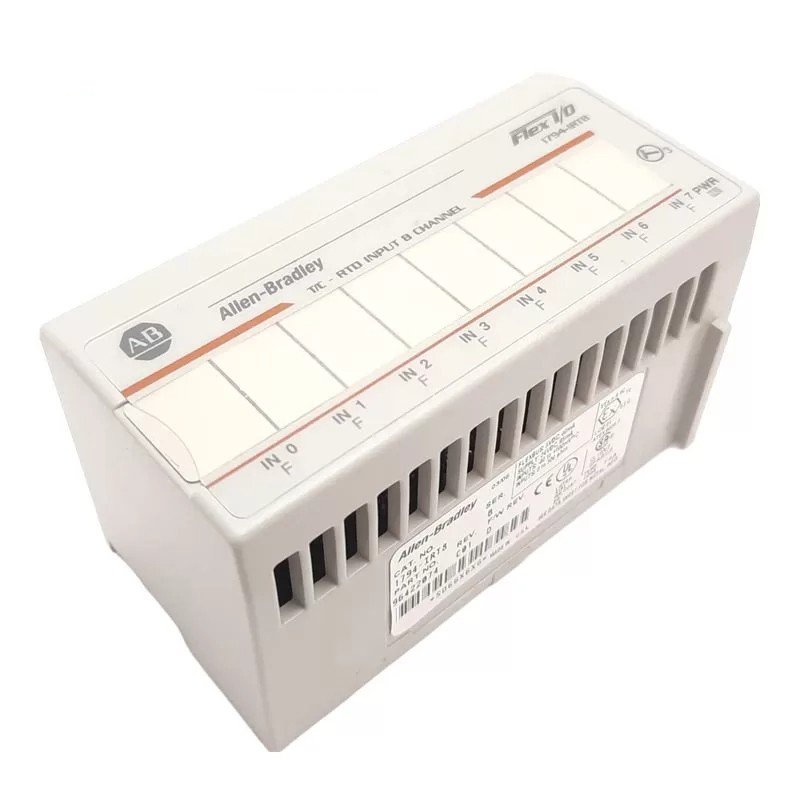

Allen-Bradley 1794-IRTB Flex I/O Combination Module

The Allen-Bradley 1794-IRTB is a versatile Flex I/O combination module that excels in industrial automation. It supports both RTD and Thermocouple sensors, making it ideal for precise temperature measurement and control.

Key Features

• Combination Module: It supports RTD and Thermocouple sensors, providing flexibility for temperature measurement.
• RIUP (Removal and Insertion Under Power): This feature allows you to replace modules and connect cables without powering down the system.
• Wide Electrical Range: It accommodates various electrical signals, ensuring compatibility across different industrial settings.
• Individually Configurable Channels: Customize each analog channel to match your specific measurement parameters.
• Selectable Input Filters: This feature reduces noise and enhances signal quality for more accurate measurements.
• Single-Ended or Differential Inputs: It supports both input configurations, accommodating various signal types.
• On-Board Scaling: Built-in scaling capabilities facilitate easy integration into control systems.
• Internal Calibration: Ensures measurements remain accurate and reliable over time.

Technical Specifications

• Dimensions: 7.6 cm x 5.1 cm x 5.1 cm
• Weight: 0.1 kg
• Country of Origin: USA
• Operating Temperature: -20 to 70 °C (-4 to 158 °F) for FLEX I/O-XT models
• Certifications: Various industry certifications for safety and compliance

Applications

The 1794-IRTB is suitable for numerous applications, including:

• Process control
• Machine automation
• Building automation
• Environmental monitoring
• Temperature control systems
