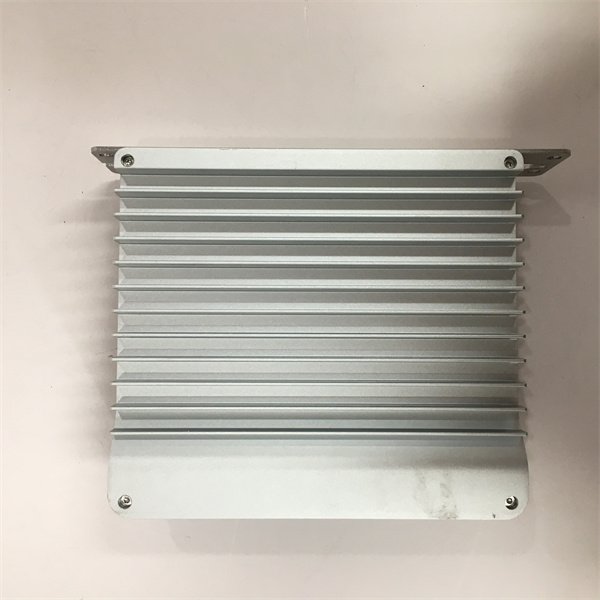

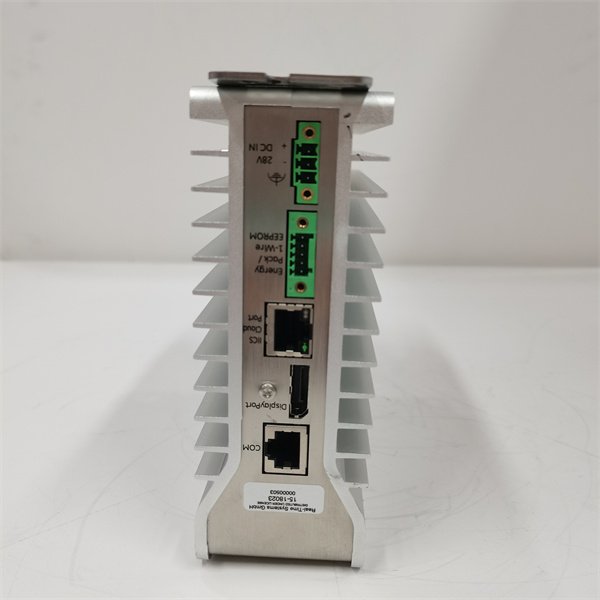

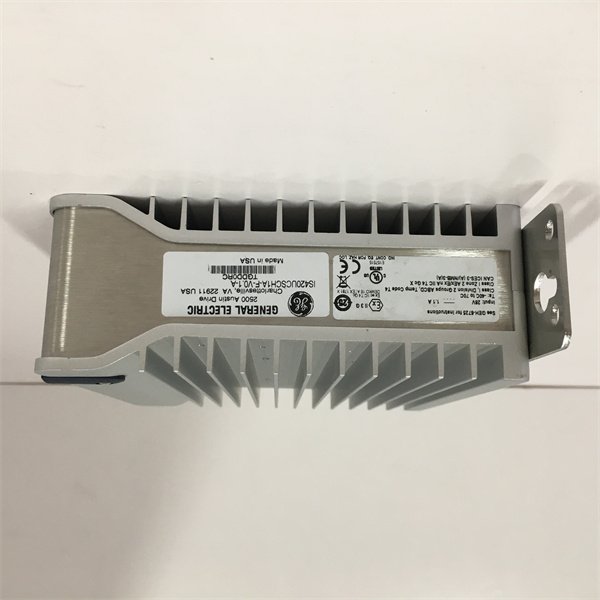

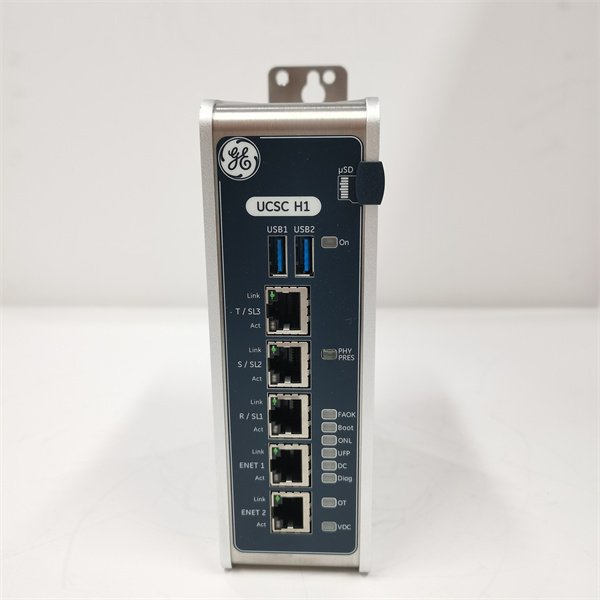

General Electric IS420UCSCH1A Controller Module

The GE IS420UCSCH1A is a high – performance industrial controller module belonging to the Mark VIe series of General Electric. It is a compact, standalone unit designed for industrial automation applications. Powered by the QNX Neutrino operating system, it offers high – speed operation and precise control capabilities2. The controller is equipped with a 1.2 – GHz AMD G – series quad – core processor, providing powerful computing power to meet the demands of complex control tasks3. It supports multiple communication interfaces and protocols, such as Profinet, EtherCAT, HSSL, and IONet, facilitating seamless data exchange and remote monitoring with other devices24. With its reliable performance and flexible functionality, the GE IS420UCSCH1A plays a crucial role in various industrial control scenarios, adding value to the automation system.

Technical Specifications

Main Features and Advantages

High – performance processing: The GE IS420UCSCH1A is equipped with a quad – core processor, which provides strong computing power and can handle complex control tasks with ease, meeting the high – speed and high – precision control requirements of industrial automation.

Reliable operation: Using the QNX Neutrino operating system, this controller ensures stable and reliable system operation in harsh industrial environments. In addition, it adopts advanced hardware design and manufacturing processes, with high – quality components, which can operate continuously for a long time with a low failure rate.

Flexible communication: Supporting a variety of communication protocols, the GE IS420UCSCH1A can be easily integrated with other controllers and devices in the industrial network, enabling seamless data exchange and remote monitoring. This allows for efficient integration into different automation systems, improving overall system flexibility and interoperability.

Function expansion: It can be used in conjunction with multiple I/O modules, which can be flexibly configured according to different application scenarios to meet various control needs. Whether it is motor control, temperature control, pressure control, or other industrial processes, it can provide effective control solutions.

Application Field

The GE IS420UCSCH1A has a wide range of applications in the fields of industrial automation and process control. In the power generation industry, it can be used to monitor and control the operation of generators, steam turbines, and other equipment to ensure the stable operation of the power generation system. In the oil and gas industry, it is used for the control of oil extraction, gas separation, and other processes, helping to improve production efficiency and safety. In the metalworking industry, it is applied to the control of metal smelting, forging, and other processes, which is conducive to improving product quality and production efficiency. In addition, it also has excellent performance in other industrial fields such as chemical industry, water treatment, and transportation, and can provide reliable control support for various industrial processes.

Installation and Maintenance

Pre – installation preparation: Before installing the GE IS420UCSCH1A controller, make sure that the installation environment meets the requirements. The mounting base should be firm and flat, and the controller should be directly mounted on the mounting base. Leave a minimum of approximately four inches of air gap above and below the controller, and ensure that the operating temperature envelope is approximately an inch from any point on the controller. Also, make sure to wear anti – static gloves and take proper ESD safety precautions when handling the controller to avoid damage from static electricity.

Maintenance recommendations: Regularly check the operating status of the GE IS420UCSCH1A controller, including checking for any abnormal noises, vibrations, or temperature rises. Clean the controller regularly to remove dust and dirt on the surface. If any faults are found, they should be repaired in a timely manner. It is recommended to use professional repair services or replace the controller with a new one to ensure the normal operation of the system.

Product Guarantee

GE provides a comprehensive product guarantee for the GE IS420UCSCH1A. The company has full confidence in the quality of its products and promises to provide high – quality after – sales service. Within the warranty period, if the product has quality problems due to non – human factors, GE will provide free repair or replacement services. In addition, GE also provides professional technical support to help users solve various problems encountered during the use of the product, ensuring that the product can operate stably and reliably in the long term and bringing peace of mind to users.
