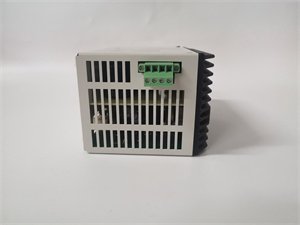

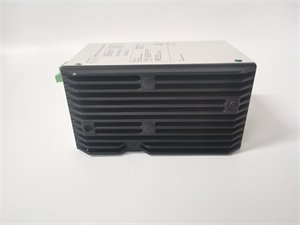

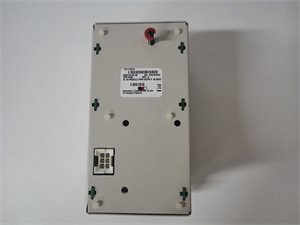

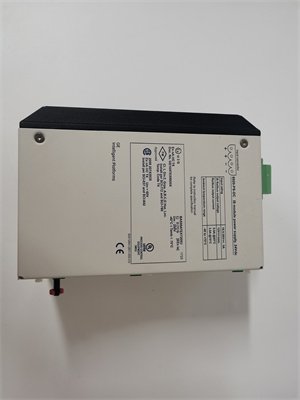

General Electric 8920-PS-DC Intrinsically Safe DC Power Supply Module

The GE 8920-PS-DC is an intrinsically safe DC power supply module, an offering from General Electric that caters to the exacting needs of industrial automation. This module is an integral part of the PAC8000 system, designed to function optimally in environments where safety is of utmost importance, such as in oil refineries, chemical plants, and mining sites. With a nominal input of 24 V DC and a broad input range spanning from 18.5 V to 36 V DC, it can adapt to diverse industrial power sources. It provides a stable 12 V DC output with a capacity of 5 A, making it capable of powering two 1 – channel intrinsically safe modules. This not only ensures continuous operation but also offers redundancy, enhancing the overall reliability of the system. The GE 8920-PS-DC is a key enabler for maintaining safety and efficient operation in hazardous industrial settings.

Technical Specifications

Intrinsically Safe Design

The GE 8920-PS-DC is engineered with intrinsic safety as a core feature. This design ensures that it can be safely deployed in hazardous areas where explosive gases or dust may be present. By preventing any potential ignition sources, it mitigates risks associated with power supply in such environments.

Stable Power Output

It offers a highly stable 12 V DC output, which is crucial for the reliable operation of connected equipment. The consistent power supply ensures that the intrinsically safe modules and other devices it powers function optimally, minimizing the chances of system failures due to power fluctuations.

Wide Input Voltage Tolerance

With its ability to handle input voltages from 18.5 V to 36 V DC, the module provides great flexibility. This wide input range allows it to be used in various industrial applications, adapting to different power supply conditions without the need for complex voltage regulation systems.

Load Sharing Capability

The support for load sharing is another significant advantage. In redundant power supply setups, multiple GE 8920-PS-DC modules can work together. If one module fails, the others can take over the load, ensuring uninterrupted power supply to the critical components in the PAC8000 system.

Oil and Gas Industry

In the oil and gas sector, the GE 8920-PS-DC is extensively used. It powers control systems in offshore platforms, where the presence of flammable gases is a constant concern. In refineries, it provides reliable power to safety – critical equipment, ensuring that operations can continue safely even in potentially explosive atmospheres.

Chemical Processing Plants

Chemical plants deal with a wide range of hazardous substances. The GE 8920-PS-DC is deployed to power sensors, actuators, and control modules that monitor and regulate chemical processes. Its intrinsically safe design is essential for maintaining a safe working environment while ensuring smooth process control.

Mining Operations

Underground mines are hazardous environments with the risk of gas leaks. The GE 8920-PS-DC is used to power communication systems, ventilation controls, and other safety – related equipment. Its ability to function in harsh conditions, including high humidity and vibrations, makes it suitable for mining applications.

Installation and Maintenance

Pre – installation preparation: Before installing the GE 8920-PS-DC, verify that the input power source voltage lies within the specified 18.5 – 36 V DC range. Ensure the installation area is free from dust, moisture, and excessive vibrations. Check the physical condition of the module for any signs of damage during transit. Follow the installation manual provided by GE carefully, ensuring proper grounding of the module to prevent electrical hazards.

Maintenance recommendations: Regularly inspect the GE 8920-PS-DC for any loose connections or signs of wear. Clean the module periodically to remove dust that could potentially affect its performance. Monitor the input and output voltages using appropriate measuring tools to detect any deviations. If any issues are detected, refer to the troubleshooting guide in the product manual. Replace the module if it shows signs of severe degradation or failure to maintain the integrity of the power supply system.

Product Guarantee

General Electric stands firmly behind the quality of the GE 8920-PS-DC. The module undergoes rigorous testing during the manufacturing process to ensure it meets high – quality standards. GE offers a standard warranty period, during which, if the module exhibits any manufacturing defects, they will provide repair or replacement services at no cost to the customer. Their team of technical experts is available to offer support for installation, operation, and troubleshooting. This comprehensive product guarantee reflects GE’s confidence in the reliability and durability of the GE 8920-PS-DC, providing customers with peace of mind when using this power supply module in their industrial applications.
