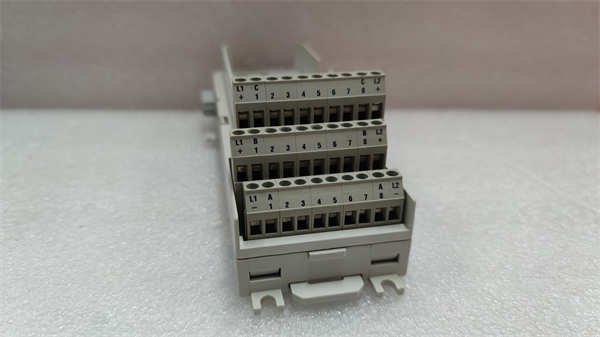

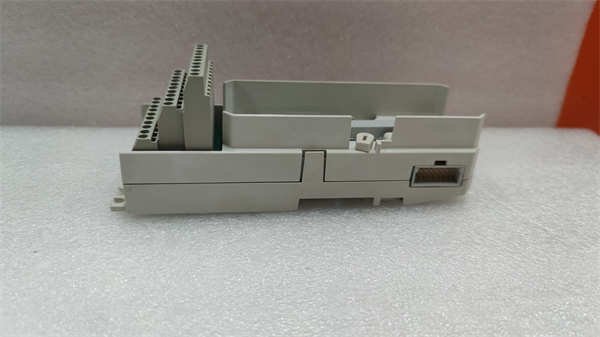

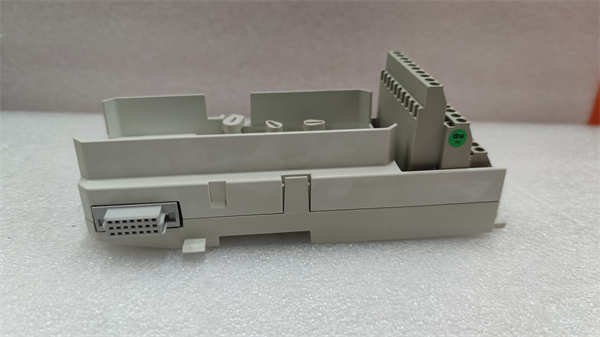

ABB TU810V1 3BSE013230R1 Compact Module Termination Unit

TheABB TU810V1 3BSE013230R1 is a compact module termination unit (MTU) designed for ABB’s S800 I/O system, a distributed process I/O solution for industrial automation. As part of ABB’s modular architecture, the TU810V1 3BSE013230R1 provides secure termination for signal cables, enabling seamless integration with digital/analog modules (e.g., DI810, AO810V2) in the S800 series. With 2×8 signal terminals and 50V isolation, this MTU supports field-level connectivity for sensors, actuators, and control devices in harsh environments. Its compact design (30×20×20 cm) and DIN-rail mounting simplify installation, while hot-swap capability allows module replacement without system downtime. The TU810V1 3BSE013230R1 is ideal for applications requiring reliable signal routing in industries such as manufacturing, energy, and water treatment.

Product Parameters

Advantages and Features

• Modular Design: Enables quick integration with S800 I/O modules, reducing cabling complexity.
• Hot-Swap Capability: Modules can be replaced during operation, minimizing downtime.
• Space-Saving: Compact size (30×20×20 cm) saves panel space in crowded installations.
• Reliable Isolation: 50V isolation protects against signal interference in noisy environments.
• Wide Temperature Range: Operates from -25°C to +60°C, suitable for harsh industrial settings.
• Easy Installation: DIN-rail mounting and standardized terminals simplify setup.

Case Study: A power plant reduced wiring costs by 30% using the TU810V1 3BSE013230R1 with AI810 analog modules, streamlining sensor connections in boiler control systems.

Application Areas and Use Cases

• Industries: Manufacturing, oil/gas, power generation, water/wastewater treatment.
• Scenarios: Termination for I/O modules in distributed control systems (DCS), PLCs, and field devices.
• Use Case: A chemical plant used the TU810V1 3BSE013230R1 to terminate 16-channel digital outputs (DO810) for valve actuators, ensuring reliable signal transmission in a corrosive environment.

Competitor Comparison

Compared to generic termination units:

• Superior Compatibility: Exclusive support for ABB’s S800 I/O ecosystem, ensuring plug-and-play integration.
• Higher Density: 16 terminals in a compact form factor vs. 8–12 terminals in standard MTUs.
• Enhanced Safety: G3-compliant construction for corrosive environments (vs. basic IP20-rated alternatives).
• Hot-Swap Support: Unique to ABB’s S800 series, enabling maintenance without system shutdown.

Selection Recommendations

• System Compatibility: Ensure use with ABB S800 I/O modules (e.g., DI810, AO810V2).
• Terminal Requirements: Choose 16-terminal configuration for medium-scale I/O needs; scale with TU847 (for Profibus modules) for advanced systems.
• Environment: Opt for G3-compliant MTUs (like TU810V1) for corrosive or dusty sites.
• Cost Efficiency: Balances performance (hot-swap, isolation) with budget-friendly pricing vs. premium-brand alternatives.

Precautions

• Installation: Follow ABB’s wiring guidelines (shielded cables for analog signals; torque terminals to 0.5 N·m).
• Safety: Disconnect power before module replacement; avoid contact with live terminals.
• Maintenance: Inspect terminals for corrosion or start (loose connections) quarterly.
• Temperature: Ensure ambient temperature ≤60°C; avoid direct sunlight or moisture.
