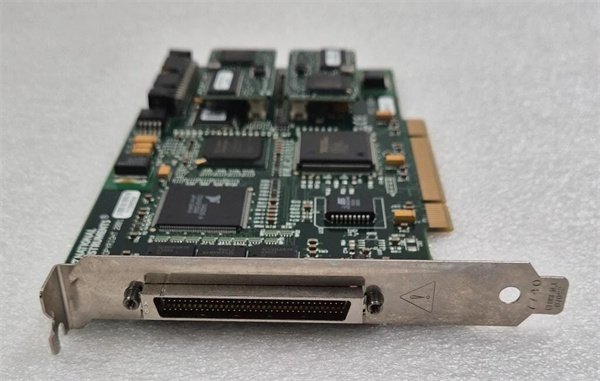

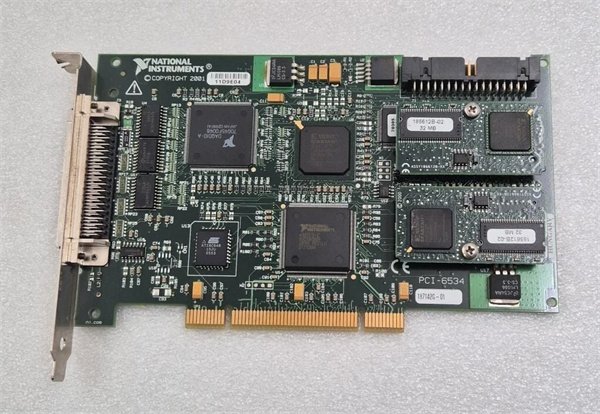

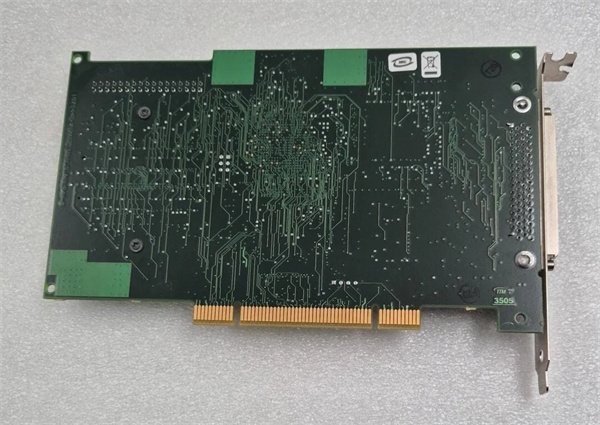

NI PCI-6534 High-Speed Pattern I/O & Handshaking Digital I/O Card

The NI PCI-6534 is a high-performance digital I/O card developed by National Instruments, designed specifically for industrial automation and test systems requiring ultra-fast, deterministic digital signal handling. As a flagship model in NI’s PCI-based digital I/O lineup, the NI PCI-6534 integrates specialized hardware—including the NI DAQ-DIO ASIC—and 32 MB of onboard memory to deliver pattern I/O and handshaking capabilities at speeds up to 100 MHz, outperforming entry-level cards like the NI PCI-6527 in high-throughput scenarios.

In automation systems, the NI PCI-6534 acts as a critical bridge between digital sensors/actuators and host controllers, enabling real-time data exchange and precise timing synchronization. Its 32 configurable I/O lines support both single-line control and multi-bit port operations (8-bit, 16-bit, 32-bit), making it adaptable to diverse protocols from simple digital triggering to complex serial communication. Whether used in semiconductor testing, 5G research, or industrial machine control, the NI PCI-6534 ensures reliable, high-speed digital signal processing that minimizes latency and maximizes system efficiency.

Detailed parameter table

Core advantages and technical highlights

ASIC-Powered Performance: The NI PCI-6534 leverages the NI DAQ-DIO ASIC, a custom integrated circuit optimized for digital I/O tasks. This hardware acceleration eliminates CPU bottlenecks, enabling the card to maintain 100 MHz I/O speeds without compromising signal integrity. Unlike generic digital I/O cards, the ASIC also handles low-level timing logic, ensuring deterministic operation—critical for applications like high-speed semiconductor test where nanosecond-level precision prevents false readings.

Large Onboard Memory for Complex Patterns: With 32 MB of onboard memory, the NI PCI-6534 stores extensive digital patterns (e.g., 16 million 2-bit signals) for standalone playback, reducing reliance on host PC memory. This is particularly valuable in 5G MIMO testbeds, where the NI PCI-6534 can preload hundreds of communication waveforms and play them back at 100 MHz, simulating real-world signal conditions without data transfer delays.

Versatile Handshaking & Synchronization: The NI PCI-6534 supports a full suite of handshaking protocols (RS-232, SPI, I2C, and custom) and integrates an 8-line RTSI bus for multi-device synchronization. In a multi-card test system, for example, the NI PCI-6534 can sync with NI digitizers or waveform generators via RTSI, ensuring all instruments trigger within <10 ns of each other. This capability is essential for industrial automation lines where multiple sensors and actuators must operate in lockstep.

Typical application scenarios

In semiconductor manufacturing, the NI PCI-6534 is a cornerstone of high-speed chip testing. It interfaces with automated test equipment (ATE) to generate and detect digital patterns at 100 MHz, validating the functionality of high-performance microprocessors and memory chips. For instance, when testing a 16-bit microcontroller, the NI PCI-6534 sends control signals to the chip’s pins (via 32-bit port configuration) and captures response data, identifying defects like timing errors or faulty logic gates—all while synchronizing with an oscilloscope via RTSI to measure signal integrity.

In 5G research labs, the NI PCI-6534 enables realistic MIMO system testing. Its 32 MB memory stores complex OFDM (Orthogonal Frequency-Division Multiplexing) waveforms, which it plays back at 100 MHz to simulate 5G base station signals. The card also captures feedback from prototype user equipment (UE), allowing researchers to optimize beamforming algorithms and test interference resilience. Unlike slower cards, the NI PCI-6534 handles the high data rates of 5G NR (New Radio) without dropping frames, ensuring accurate performance validation.

In industrial automation, the NI PCI-6534 controls high-speed packaging machines. It uses 8-bit port groups to trigger conveyor belts, sealers, and labelers, with 24 mA current output driving industrial relays directly. The card’s 10 ns setup time ensures precise timing between machine steps (e.g., labeling a package 50 ms after sealing), reducing waste and improving throughput. Its scatter-gather DMA also logs production data (e.g., packages per minute) to the host PC, enabling real-time quality monitoring.

Installation, commissioning and maintenance instructions

Installation preparation: Before installing the NI PCI-6534, power off the host PC and verify it has an empty PCI 2.1/2.2/2.3 slot (PCIe slots require a PCI-to-PCIe adapter). Wear an ESD wristband and work on a grounded surface to protect the card’s ASIC and memory components. Insert the NI PCI-6534 firmly into the slot, securing it with the chassis screw to prevent vibration-induced damage. Connect digital devices to the 68-pin SCSI-II connectors using shielded cables (to reduce noise), and attach an RTSI cable if syncing with other NI instruments. Download and install the latest NI-DAQmx driver from NI’s website, then use NI Measurement & Automation Explorer (MAX) to detect the NI PCI-6534 and run a self-test.

Maintenance suggestions: To preserve the NI PCI-6534’s performance, inspect the 68-pin and RTSI connectors quarterly for corrosion or loose pins—clean contacts with isopropyl alcohol (99.9% purity) and a lint-free cloth. Calibrate the card annually using NI’s calibration tool (or a third-party NIST-traceable calibrator) to ensure timing accuracy (e.g., verifying <5 ns channel skew). If the card fails to detect devices, check for driver conflicts (update NI-DAQmx) or damaged cables (replace with NI-certified cables). For memory-related issues (e.g., pattern playback errors), reformat the onboard memory via MAX. Avoid exposing the NI PCI-6534 to temperatures above 55 °C or humidity above 90%, as this can degrade the ASIC’s performance over time.
