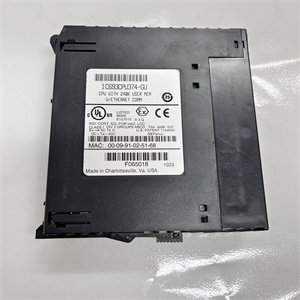

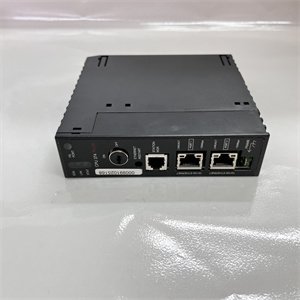

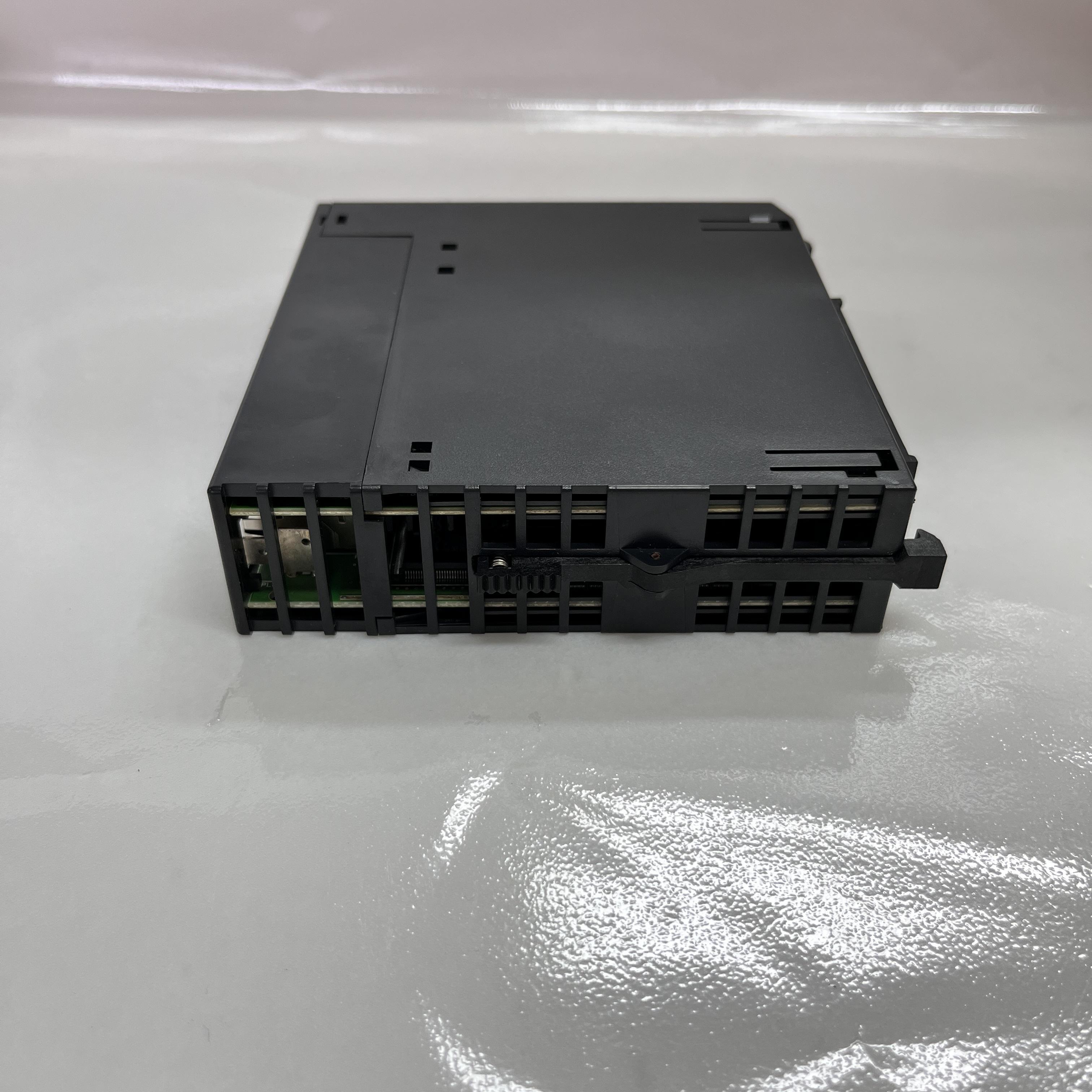

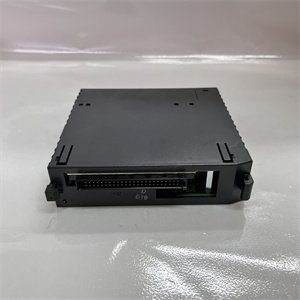

GE Fanuc IC693CPU374-GU PLC Processor Module

The GE Fanuc IC693CPU374-GU is a high-performance central processing unit (CPU) module designed for industrial automation systems, part of the GE Fanuc Series 90-30 PLC family. As the core component of a PLC system, the IC693CPU374-GU executes user-defined control programs, manages I/O signals, and enables high-speed communication with external devices. Its robust architecture and versatile features make it ideal for complex industrial applications requiring reliable performance and seamless integration.

Product Parameters

Advantages and Features

• High Performance: The 133 MHz 32-bit RISC processor ensures rapid execution of complex control logic, with a scan cycle of 0.15 ms/1K logic—20% faster than standard industrial CPUs.
• Versatile Connectivity: Two built-in Ethernet ports enable simultaneous communication with HMIs, SCADA systems, and programming devices, while the RS-485 port supports legacy network integration.
• Reliability: Rated for IP67 protection and a wide temperature range (-20°C to 60°C), the IC693CPU374-GU operates reliably in harsh industrial environments, withstanding vibrations and electrical noise.
• Flexible Configuration: User memory (240 KB) and configurable registers (128–32,640 words) adapt to diverse applications, supporting up to 2,000 timers/counters.

Application Areas and Use Cases

Industries:

• Manufacturing (production lines, robotics)
• Process control (oil/gas, power, metallurgy)
• Smart buildings (HVAC, lighting control)
• Data acquisition and remote monitoring

Case Study:

A smart manufacturing plant in Germany integrated the IC693CPU374-GU to control a robotic assembly line. The module’s dual Ethernet ports enabled real-time data exchange with robots and a cloud-based SCADA system, reducing downtime by 18% and improving throughput by 22%. Its compact design (single-slot DIN rail mount) minimized space usage in the control cabinet.

Competitive Comparison

Compared to similar industrial CPUs, the IC693CPU374-GU offers:

• Dual Ethernet Ports: Most competing products provide one port, limiting concurrent communication.
• Faster Scan Cycle: 0.15 ms/1K logic vs. 0.2–0.3 ms/1K logic for comparable models.
• Wide Temperature Range: Supports -20°C operation, extending usability in extreme climates.

Selection Recommendations

• Compatibility: Ensure compatibility with GE Fanuc Series 90-30 racks and programming software (VersaPro 2.03+, CIMPLICITY ME 2.60+).
• Environment: For outdoor or high-temperature sites, leverage the -20°C to 60°C operating range.
• Scalability: Pair with GE I/O modules (e.g., IC693MDL730, IC693MDL940H) for modular system expansion.
• Budget: Balance performance and cost—the IC693CPU374-GU offers premium features at a 15% lower cost than high-end redundant CPUs.

Precautions

• Installation: Follow DIN rail mounting guidelines; ensure proper grounding to prevent EMI.

• Power Stability: Use a filtered 5V DC power supply to avoid voltage fluctuations.

• Software Updates: Regularly update firmware via GE’s Proficy software to access new protocols and bug fixes.

• Maintenance: Clean dust from vents annually; inspect cable connections for wear.
