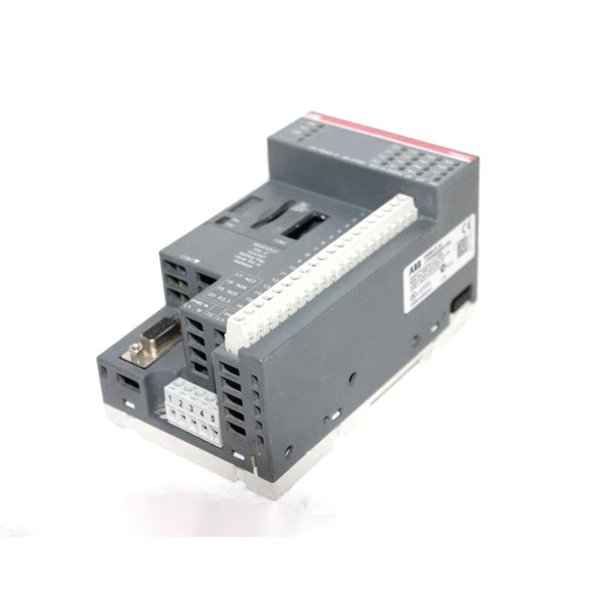

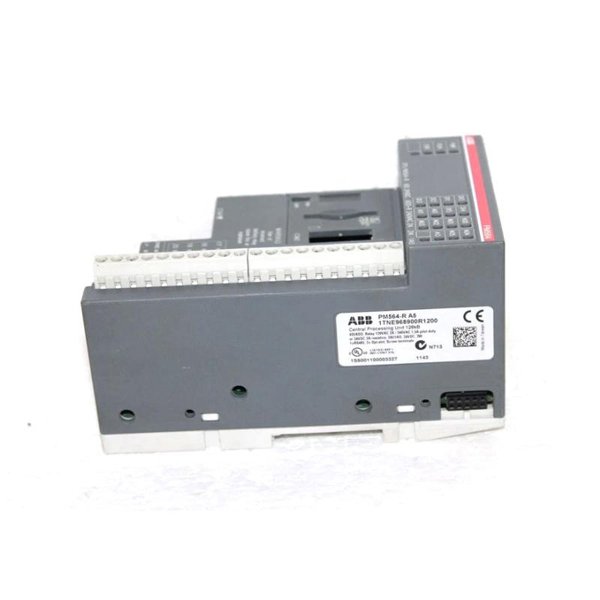

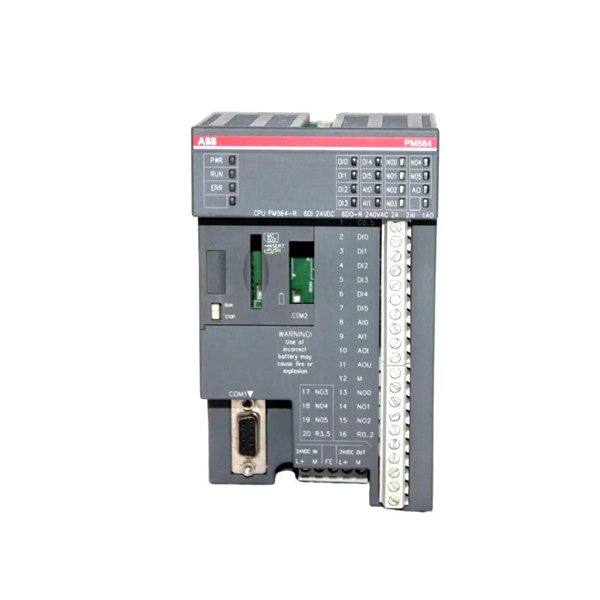

Manufacturer:ABB
Product Number:PM564-R 1TNE968900R1200
Product Type:AC500 PLC Processor Module
Origin:Sweden (SE)
Dimensions:74 × 135 × 82 mm
Weight:0.23 kg
Views:43
Payment Methods:T/T, PayPal, Western Union
Condition:New & In Stock
Warranty:1 Year
Lead Time:1-3 Working Days
Certificate:COO
Courier partners:DHL, UPS, TNT, FedEx and EMS.
Business hours:7*24
The ABB PM564-R is a robust processor module designed for the AC500 series PLC system. It offers high-speed processing and versatile communication options, suitable for demanding industrial automation tasks. The module supports complex control algorithms and integrates seamlessly with other AC500 components, ensuring efficient and reliable system performance.
| Parameter | Specification |
|---|---|
| Model | PM564-R |
| Dimensions | 74 × 135 × 82 mm |
| Weight | 0.23 kg |
| CPU Speed | Up to 100 MHz |
| Memory (RAM) | 512 KB |
| Communication Ports | Ethernet, Serial (RS232/RS485) |
| Power Supply | 24 V DC |
| Operating Temperature | 0°C to 55°C |
| Mounting | DIN rail |
Machine control in manufacturing plants
Process automation in chemical and pharmaceutical industries
Infrastructure automation such as water treatment and energy management
Food and beverage processing lines
Packaging and material handling systems
High processing speed ensures quick response times
Flexible communication ports for network integration
Compact size saves panel space
Reliable operation in industrial environments
Supports a wide range of I/O modules for customization
Easy integration with ABB’s AC500 ecosystem
1. What programming software is compatible with the PM564-R?
It supports ABB’s Automation Builder software, designed for AC500 series PLCs.
2. Can the PM564-R module be used in harsh industrial environments?
Yes, it operates reliably within 0°C to 55°C and industrial-grade conditions.
3. What communication protocols does the PM564-R support?
It supports Ethernet TCP/IP and serial communication protocols like Modbus.
4. How much memory does the PM564-R have?
The module comes with 512 KB of RAM.
5. Is it possible to expand the system with other AC500 modules?
Yes, the PM564-R supports seamless expansion with AC500 I/O and communication modules.
6. What power supply voltage is required?
The module requires a 24 V DC power supply.
7. How is the PM564-R mounted?
It is designed for easy DIN rail mounting.
8. Can the module handle complex control algorithms?
Yes, its high-speed CPU is suitable for advanced process control.
9. What is the physical size of the PM564-R?
Its dimensions are 74 × 135 × 82 mm.
10. How do I back up the program from the PM564-R module?
You can back up the program by connecting the module to a PC using Automation Builder software, then exporting the project data to your local storage. This ensures you can restore the configuration if needed.
