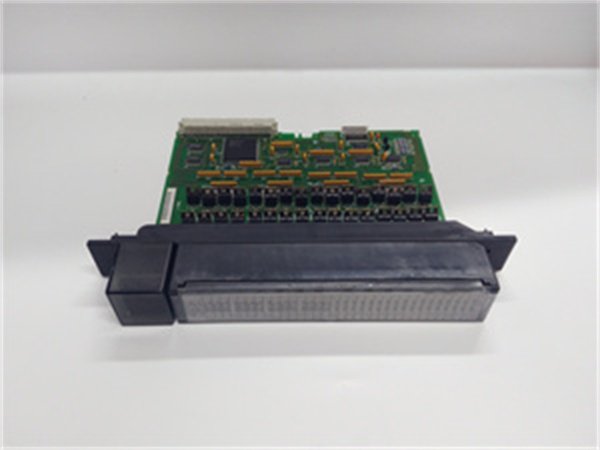

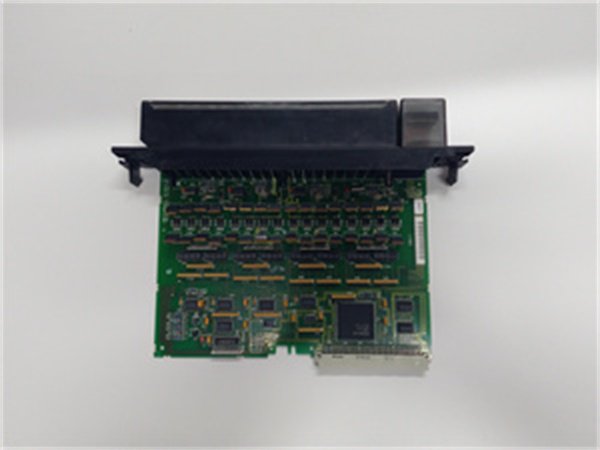

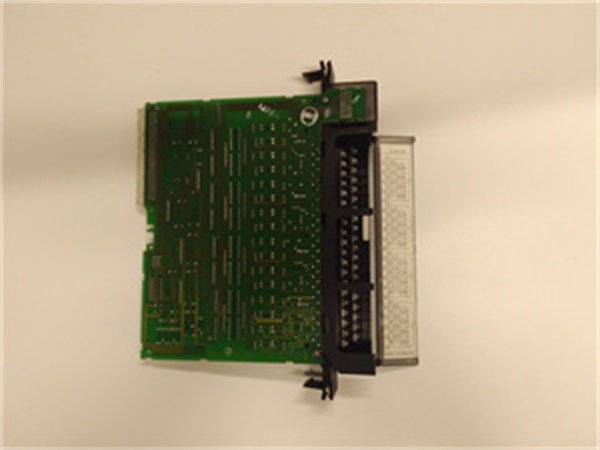

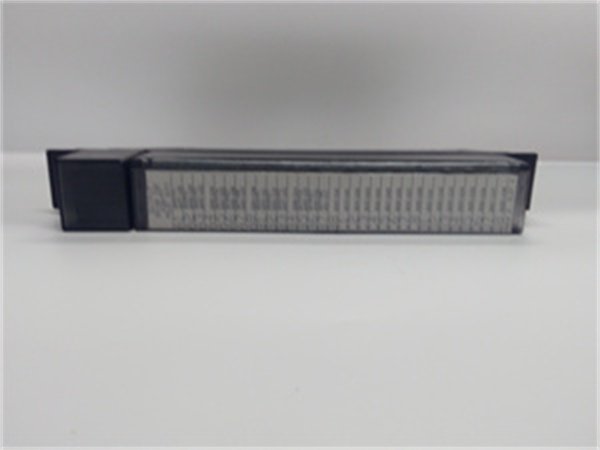

General Electric IC697MDL750 High-Density Digital Output Module

The GE IC697MDL750 is a high-density digital output module in GE’s Series 90-70 PLC family, designed to serve as the “discrete control interface” for industrial automation systems—connecting Series 90-70 CPUs to real-world execution devices (e.g., motors, solenoid valves, alarm lights). Unlike low-channel digital output modules (e.g., 16-channel models), the GE IC697MDL750 offers 32 independent relay channels, enabling centralized control of multiple discrete devices in a single chassis slot—ideal for small-to-medium systems like plastic injection lines, local water pump stations, or electronic assembly workshops.

Technical positioning for industries requiring reliable AC/DC load switching, the GE IC697MDL750 uses electromechanical relays to support mixed loads (24 V DC solenoids, 120 V AC motors) without signal conversion. It pairs seamlessly with entry-level Series 90-70 components: powered by IC697PWR710F (chassis logic power) and controlled by IC697CPU770 (CPU), it converts digital control signals into physical device actions. In automation architectures, the GE IC697MDL750 acts as a “multi-device driver hub,” reducing chassis slot usage by 50% compared to 16-channel modules and simplifying wiring—critical for space-constrained control cabinets.

Detailed Parameter Table

Core Advantages and Technical Highlights

32-Channel High Density for Space Savings: The GE IC697MDL750’s 32 independent channels fit in one Series 90-70 chassis slot, replacing two 16-channel modules. For a small plastic injection workshop controlling 24 solenoid valves (mold clamping) and 8 indicator lights, this reduces chassis slot usage from 2 to 1—freeing space for other modules (e.g., IC697BEM731U Ethernet module) and avoiding the need for a larger chassis (e.g., upgrading from 6-slot IC697CHS730 to 8-slot IC697CHS750), cutting hardware costs by 20%.

Dual-Voltage Load Compatibility: With 5–240 V AC/DC switching range and 2 A per-channel capacity, the GE IC697MDL750 drives mixed loads without external converters. A local water treatment station, for example, can use the same module to control 12 V DC pump relays (via IC697PWR710F-powered logic) and 120 V AC valve actuators (external power)—eliminating the need for separate DC-only and AC-only modules, and reducing wiring complexity by 30%.

Per-Channel Protection for Device Safety: The GE IC697MDL750 includes per-channel overcurrent protection (3 A trip) and short-circuit protection, preventing damage to expensive devices (e.g., $500 solenoid valves) from wiring errors or load surges. For an electronic assembly line using 16 soldering iron power relays, this protection shuts down faulty channels within 10 ms—avoiding fire risks and limiting downtime to a single station (vs. system-wide shutdown with unprotected modules).

Diagnostic Visibility for Fast Troubleshooting: Channel-level LED indicators (red = energized) let technicians visually verify relay status without software, while relay contact wear detection (via Proficy Machine Edition) alerts users to degraded contacts before failure. In a water treatment station, this means identifying a failing valve relay in 2 minutes (vs. 30 minutes with non-diagnostic modules)—reducing maintenance time and preventing untreated water discharge.

Typical Application Scenarios

In small plastic injection workshops, the GE IC697MDL750 (installed in IC697CHS730 chassis) is controlled by IC697CPU770 to drive 24 solenoid valves (mold clamping, injection) and 8 status lights. It draws 5V DC logic power from IC697PWR710F and uses external 24 V DC for valve power. Per-channel overcurrent protection prevents damage if a valve wire shorts, while 32-channel density keeps the chassis compact—ensuring the line runs 24/7 with minimal downtime.

For local water treatment stations (serving 3,000–8,000 residents), the GE IC697MDL750 (in IC697CHS750 chassis) controls 16 pump relays (120 V AC) and 16 valve actuators (24 V DC). It receives control signals from IC697CPU770 (e.g., “start pump 1” when water level is high) and feeds back relay status via chassis backplane. Diagnostic LEDs let on-site technicians quickly confirm pump activation, while contact wear detection alerts to replace aging relays during scheduled maintenance—avoiding unplanned pump failures.

In low-volume electronic component assembly lines, the GE IC697MDL750 drives 32 soldering iron power switches (120 V AC) and 8 conveyor motor relays (24 V DC). Controlled by IC697CPU770, it turns on/off tools based on part presence signals (from IC697DIA310 digital input module). Short-circuit protection prevents damage if a soldering iron wire frays, while the module’s compact design fits in the line’s 6-slot chassis—supporting 500+ PCBs per day with consistent performance.

Installation Commissioning and Maintenance Instructions

Installation preparation: Before installing GE IC697MDL750, power off the Series 90-70 chassis (e.g., IC697CHS730) and verify compatibility with the CPU (e.g., IC697CPU770) and power supply (IC697PWR710F). Required tools include an anti-static wristband (prevent ESD damage), torque screwdriver (0.8–1.2 N·m for chassis screws), wire strippers (18–14 AWG for load wires), and a multimeter (to test load power). Ensure the chassis slot is free of dust and debris.

Installation and wiring: Align GE IC697MDL750 with the chassis slot, push until it latches, and secure with front-panel screws. Connect 5V DC logic power (from chassis backplane, supplied by IC697PWR710F) and external load power (24 V DC/120 V AC) to the module’s terminal block. Wire load devices (valves, motors) to Form C contacts (NO for normal activation, NC for fail-safe). Tighten terminal screws to 0.5 N·m to avoid loose connections.

Commissioning and maintenance: Power on the chassis and use Proficy Machine Edition to send test signals (e.g., energize Channel 1) — verify LED indicators light red and loads activate. Daily maintenance involves checking channel LEDs (steady red = normal, flickering = contact wear). Every 6 months, inspect relay contacts for corrosion (clean with dry cloth if needed) and test overcurrent protection with a current injector. Replace GE IC697MDL750 if ≥5 relays show contact wear or overcurrent trips persist (after load/wiring checks).
