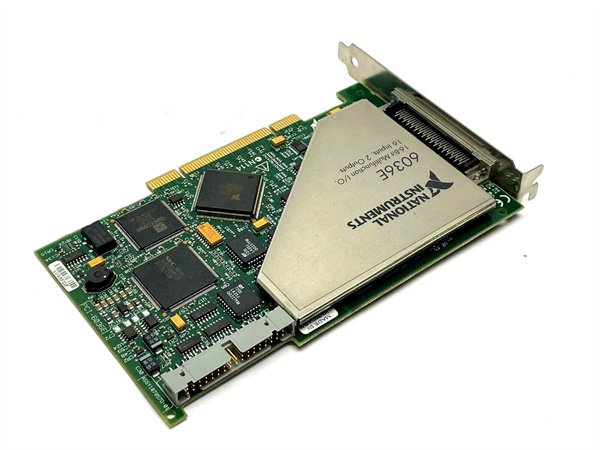

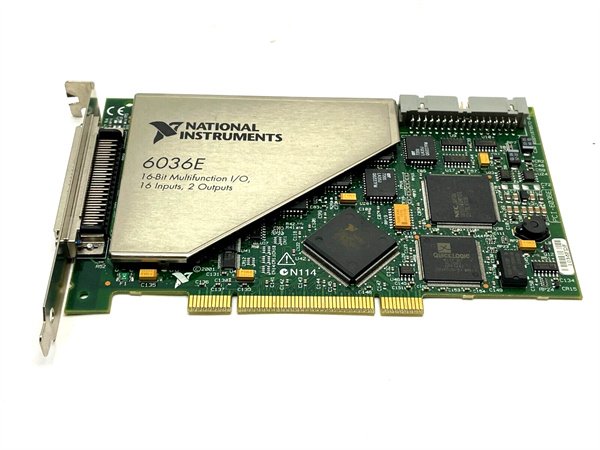

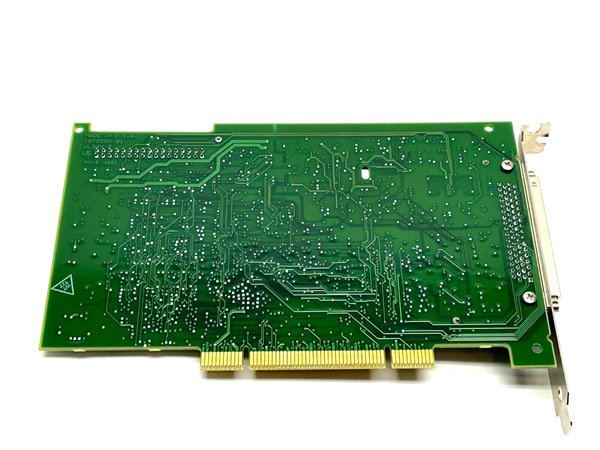

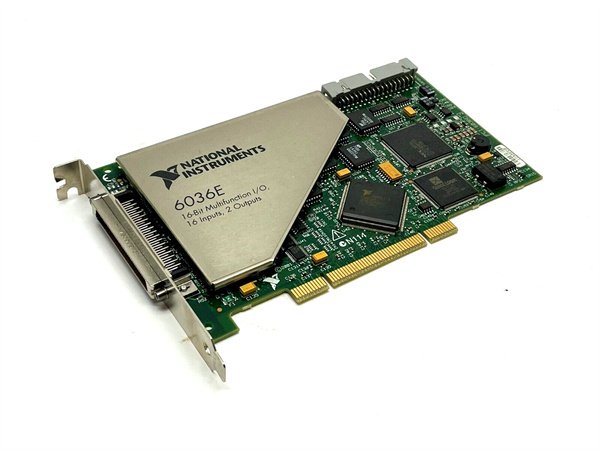

NI PCI-6036 PCI-Based Multifunctional Data Acquisition Card

The NI PCI-6036 is a cost-effective multifunctional DAQ card from National Instruments (NI), belonging to the company’s renowned E Series— a line trusted for balancing performance and affordability in industrial automation and academic testing. Designed for small-to-mid-scale applications, the NI PCI-6036 integrates analog input/output, digital I/O, and counter/timer functions into a single PCI card, eliminating the need for multiple specialized devices and reducing system complexity.

At its core, the NI PCI-6036 delivers reliable 16-bit precision, making it suitable for tasks like sensor signal capture (e.g., temperature, pressure) and low-speed control. When paired with NI’s NI-DAQmx driver, the NI PCI-6036 seamlessly integrates with common software tools like LabVIEW, enabling users to build custom test or monitoring systems without extensive programming expertise. This accessibility, combined with its robust industrial design, makes the NI PCI-6036 a go-to choice for budget-conscious teams needing accurate, all-in-one DAQ capabilities.

Detailed Parameter Table

Core Advantages and Technical Highlights

Cost-Effective All-in-One Design: The NI PCI-6036 combines analog I/O, digital I/O, and counters in a single card— a key advantage over discrete components that would require multiple PCI slots and higher costs. For example, a small manufacturing plant can use the NI PCI-6036 to measure 4 temperature sensors (analog input), control a relay (digital output), and track motor speed (counter)—all with one device. This integration cuts hardware expenses by up to 40% compared to standalone modules.

16-Bit Precision for Accurate Measurements: With 16-bit analog input resolution, the NI PCI-6036 captures subtle signal variations (down to ~1.2 μV in the ±0.05 V range) that 12-bit DAQ cards might miss. This precision is critical for applications like laboratory experiments, where students use the NI PCI-6036 to measure small voltage changes in circuit prototypes, or industrial quality control, where the card verifies tight tolerance levels in sensor outputs.

Flexible Voltage Ranges: The NI PCI-6036 offers four software-selectable input ranges (from ±0.05 V to ±10 V), adapting to diverse signal sources without external attenuators or amplifiers. For instance, users can switch from measuring a 50 mV strain gauge signal (±0.05 V range) to a 10 V motor control signal (±10 V range) via software—no hardware reconfiguration needed. This flexibility reduces setup time and minimizes signal loss from external components.

On-Board Self-Calibration: Unlike many budget DAQ cards that require manual potentiometer adjustments, the NI PCI-6036 features software-controlled self-calibration. This ensures measurement accuracy over time and temperature fluctuations, critical for long-term monitoring applications (e.g., tracking ambient conditions in a warehouse). Users can run calibration in minutes via NI-DAQmx, eliminating the need for specialized calibration tools.

Typical Application Scenarios

The NI PCI-6036 excels in cost-sensitive, small-scale automation and testing scenarios across industries. In academic research, it is a staple in electrical engineering labs: students use the NI PCI-6036 to conduct experiments like RC circuit time-constant analysis (measuring voltage decay via analog input) or digital logic testing (controlling LEDs via digital output). Its compatibility with LabVIEW lets educators create step-by-step tutorials, making it easy for beginners to learn DAQ fundamentals.

In small manufacturing, the NI PCI-6036 supports quality control (QC) stations for low-volume production. For example, a maker of portable medical devices uses the NI PCI-6036 to test battery voltage (analog input) and verify button functionality (digital input) of each unit. The card’s 200 kS/s sampling rate ensures fast QC throughput, while its 16-bit precision guarantees compliance with medical device voltage standards.

In industrial maintenance, the NI PCI-6036 is used for predictive monitoring of small machinery. A facility manager might connect the NI PCI-6036 to vibration sensors (analog input) on a small pump and a temperature sensor (another analog input) to track equipment health. The card’s counter function also monitors pump RPM, alerting staff to abnormal speeds that indicate wear—helping prevent unplanned downtime.

Installation Commissioning and Maintenance Instructions

Installation preparation: Before installing the NI PCI-6036, confirm the host PC has an available 32-bit PCI slot (3.3 V or 5 V compatible) and meets system requirements (Windows 7/10/11, 4 GB RAM, 200 MB free disk space for NI-DAQmx). Power off the PC and disconnect all power sources. Use an anti-static wristband to handle the NI PCI-6036, as electrostatic discharge can damage its components. Align the card’s edge connector with the PCI slot, press firmly until the bracket seats against the case, and secure with a screw. After installation, install the latest NI-DAQmx driver from NI’s website and run the hardware detection utility in NI Measurement & Automation Explorer (MAX) to verify connectivity.

Maintenance suggestions: Clean the NI PCI-6036’s PCI connector every 3 months with compressed air to remove dust, which can cause intermittent connectivity. Run self-calibration quarterly (or after significant temperature changes) to maintain accuracy. If the NI PCI-6036 fails to communicate, check for loose cables, verify the driver is up to date, and test the card in a different PCI slot. For hardware issues (e.g., unresponsive channels), contact NI support—do not open the card, as this voids the warranty. Replace damaged BNC cables or terminal blocks promptly to avoid signal distortion.
