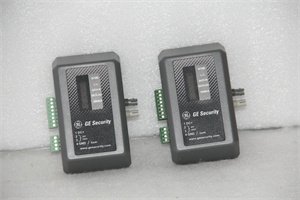

General Electric S710D-EST2 multiprotocol data transceiver

The GE S710D-EST2 is a high-performance multiprotocol data transceiver designed for industrial automation and control systems. Manufactured by GE (General Electric), this standalone device enables bidirectional transmission of data over two multimode fibers, supporting a wide range of protocols including RS-232, TTL, RS-422, RS-485, Manchester, Biphase, and SensorNet. Its core function is to facilitate reliable communication between industrial devices, making it ideal for applications requiring robust data transfer in harsh environments. The S710D-EST2 features a user-configurable data format and a unique data translation function, allowing seamless conversion between different protocols. With an optical budget of 13 dB and optical automatic gain control (AGC), it compensates for signal loss, ensuring consistent performance. Its compact design and rugged construction make it suitable for both standalone and rack-mounted installations.

Product Parameters

Advantages and Features

• Multiprotocol Flexibility: Supports diverse protocols, eliminating the need for multiple specialized transceivers.
• Data Translation Function: Converts data formats in real-time, enhancing interoperability between devices.
• Reliable Performance: 13 dB optical budget and AGC ensure stable signal transmission over long distances.
• Smart Diagnostics: SMARTS™ technology provides visual status updates via LEDs, simplifying troubleshooting.
• Durable Design: Aluminum construction and solid-state short-circuit protection ensure longevity in harsh environments.
• Case Study: In a smart distributed control system (DCS) upgrade project, the S710D-EST2 reduced integration costs by 20% by seamlessly translating legacy protocols to modern standards, improving system efficiency.

Application Areas and Use Cases

Industries: Energy, manufacturing, oil & gas, chemical processing, and water treatment.

Scenarios: Industrial network communication, DCS/PLC integration, remote monitoring, and fiber-optic data transmission.

Case Example: A power plant upgraded its DCS system using the S710D-EST2 to connect legacy sensors (RS-485) with a new smart control network (SensorNet). The transceiver’s protocol translation and high optical budget enabled reliable real-time data transfer, reducing downtime by 15%.

Competitor Comparison

Compared to similar transceivers, the S710D-EST2 offers superior protocol flexibility (supporting 7+ protocols vs. industry average of 4-5) and a built-in data translation function, eliminating the need for external converters. Its 13 dB optical budget exceeds most competing products (typically 10-12 dB), enabling longer transmission distances. Additionally, its compatibility with GE’s legacy and modern systems ensures seamless integration, reducing retrofit costs.

Selection Recommendations

• Compatibility: Ensure compatibility with existing protocols (e.g., RS-485, SensorNet) and network architecture.
• Installation Environment: Choose standalone or rack-mounted models based on space and cooling requirements.
• Budget: Balance features (e.g., protocol support, diagnostics) with project costs; the S710D-EST2 offers a cost-effective balance of performance and durability.
• Scalability: Plan for future expansions by selecting models with configurable data formats.

Precautions

• Fiber Installation: Use ST connectors and ensure proper fiber alignment to avoid signal loss.
• Electrostatic Discharge (ESD): Follow ESD protocols during handling to protect internal components.
• Software Configuration: Validate data format settings (via rotary switch) to prevent communication errors.
• Maintenance: Regularly inspect fiber connections and clean optical interfaces to maintain performance.
• Safety: Power off the system before modifying configurations or replacing components.

Conclusion: The GE S710D-EST2 is a versatile, reliable data transceiver designed for industrial control networks. Its multiprotocol support, smart diagnostics, and rugged design make it a top choice for mission-critical applications.
