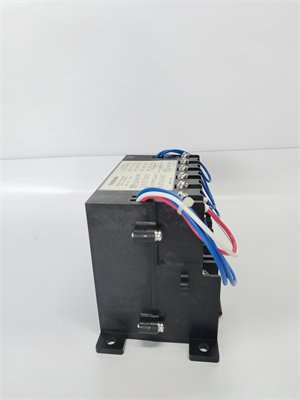

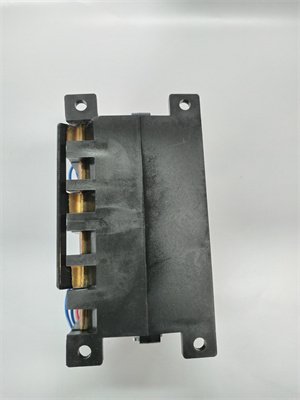

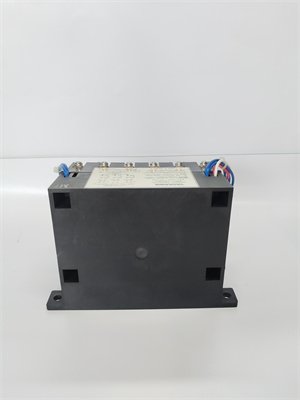

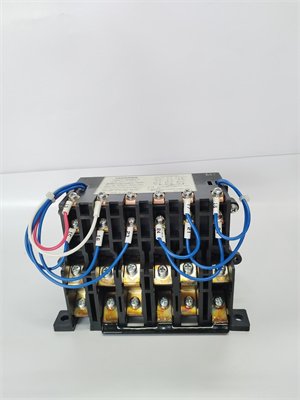

Yaskawa HV-75AP4 high-voltage magnetic contactor
Manufacturer:Yaskawa
Product Number:HV-75AP4
Payment Methods:T/T, PayPal, Western Union
Condition:New & In Stock
Warranty:1 Year
Lead Time:1-3 Working Days
Certificate:COO
Courier partners:DHL, UPS, TNT, FedEx and EMS.
Business hours:7*24
Product Description
The Yaskawa HV-75AP4 is a high-voltage magnetic contactor designed for industrial power distribution and motor control systems. Rated for 600V AC and 75A of continuous current, the HV-75AP4 serves as a critical component for switching high-power circuits in machinery, conveyor systems, and industrial automation equipment. Its robust design—with a compact footprint (13.3 cm × 8.7 cm × 10.8 cm) and 2.2 kg weight—ensures reliable operation in harsh environments, while compliant with safety standards (CE, RoHS) for global industrial applications.
Product Parameters
| Parameter | Specification |
|---|---|
| Rated Voltage | AC 600V (±10%) |
| Rated Current | 75A (continuous), 450A (peak surge) |
| Contact Type | 3-pole normally open (NO) + 1 auxiliary NO |
| Coil Voltage | AC 24V/110V/220V (customizable) |
| Mechanical Life | 10 million operations (non-load) |
| Electrical Life | 1 million operations (full load) |
| Dimensions (W×H×D) | 13.3 cm × 8.7 cm × 10.8 cm |
| Weight | 2.2 kg |
| Protection Level | IP20 (dust protection) |
| Operating Temperature | -10°C to +55°C |
Advantages and Features
- High-Power Handling: Supports 75A continuous current for heavy-duty motors (e.g., 30kW induction motors).
- Reliability: Industrial-grade contacts (silver alloy) reduce arcing, with a MTBF of 50,000 hours.
- Safety Compliance: Built-in coil surge suppression and overload protection (IEC 60947-4-1 certified).
- Versatility: Compatible with Yaskawa drives (e.g., GA500, HV600) and third-party control systems.
- Space Efficiency: 20% smaller than legacy 75A contactors (e.g., comparable to Siemens 3TF series).
Application Areas and Case Studies
Industries: Manufacturing (conveyor systems), energy (pump stations), automotive (assembly lines), and machinery (CNC equipment).
Case Study: A steel plant in India integrated 50 HV-75AP4 contactors into their rolling mill motors. The contactors’ surge protection reduced downtime by 15% and extended component lifespan by 2 years compared to previous models.
Competitor Comparison
Compared to similar 75A magnetic contactors:
- Higher Surge Capacity: 450A peak (vs. 350A in standard models).
- Longer Electrical Life: 1 million cycles (vs. 800k cycles industry average).
- Cost-Effective: 10–15% lower maintenance costs over 5 years (due to fewer replacements).
Selection Recommendations
- Voltage/Current Matching: Ensure compatibility with system voltage (600V AC) and motor load (≤75A continuous).
- Coil Voltage: Specify coil voltage (e.g., 220V AC) during ordering for direct integration.
- Environment: Use IP20 enclosures in dust-free settings; upgrade to IP54 for wet environments (with optional kits).
- Budget: Balance upfront cost ($650–$1,450) with long-term reliability—recommended for systems requiring ≥100k operations/year.
Cautions and Maintenance
- Installation: Mount vertically (±10° tolerance) for optimal contact alignment; torque terminals to 4–6 N·m.
- Cleaning: Periodically inspect contacts (every 6 months); replace if pitting exceeds 0.5mm.
- Coil Health: Monitor coil temperature (<70°C); replace if resistance deviates >10% from nominal.
- Warranty: 3-month warranty on refurbished units (via authorized sellers like CNC BOTE).
