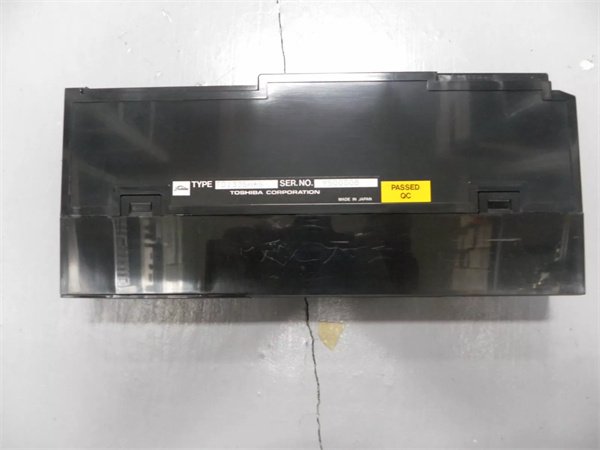

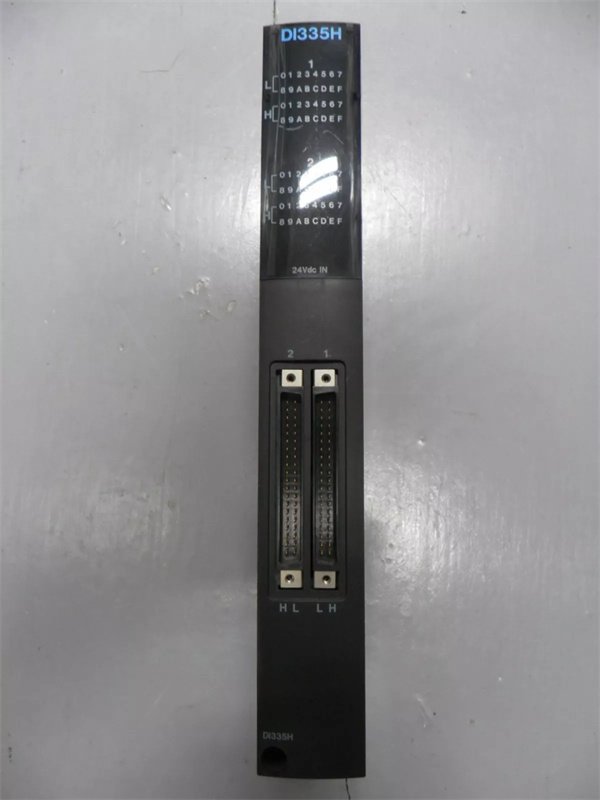

Toshiba DI335H Digital Input Module

The Toshiba DI335H is a high-performance digital input module designed for industrial control systems, offering reliable and efficient signal processing in harsh environments. As a key component of Toshiba’s automation solutions, the DI335H supports 32 channels of digital input, making it ideal for applications requiring large-scale data acquisition and control. With a voltage range of 10–24V DC and a rugged design, it ensures stable operation in industries such as manufacturing, energy, and automotive. The module integrates advanced diagnostics and EMI protection, minimizing downtime and optimizing system performance.

Product Parameters

Advantages and Features

1. High Reliability:

   • Industrial-grade construction with EMI/EMC protection, ensuring stable operation in noisy environments.
   • Wide temperature range (-40°C to +85°C) and humidity tolerance for harsh industrial settings.

2. Efficient Performance:

   • 32-channel configuration reduces cabling complexity and maximizes I/O density.
   • Low power consumption (2W) minimizes energy costs and heat dissipation.

3. Advanced Diagnostics:

   • Real-time status indicators for channel-level input signals.
   • Short-circuit and overvoltage protection for long-term reliability.

4. Compliance and Safety:

   • CE, UL, and ROHS certifications ensure global applicability and environmental sustainability.

Application Areas and Use Cases

Industry Applications:

• Manufacturing (assembly lines, robotics).
• Energy (power plants, renewable energy systems).
• Automotive (production facilities, quality control).
• Petrochemical (process control, refineries).

Case Study:

A European automotive plant integrated the Toshiba DI335H into its production line PLC network. The module’s 32-channel capacity and rugged design enabled seamless monitoring of sensors across 10 assembly stations. By reducing signal errors by 25% and downtime by 20%, the DI335H improved overall equipment effectiveness (OEE) by 15%.

Competitive Comparison

Compared to similar digital input modules:

• Superior Temperature Range: Operates at -40°C (vs. standard -20°C in competing products), suitable for extreme climates.
• Higher Channel Density: 32 channels (vs. 16–24 channels in comparable modules), reducing rack space by 30%.
• Lower Power Consumption: 2W (vs. 3–4W in competing products), enhancing energy efficiency.
• EMI Protection: Built-in filters minimize signal interference, improving data accuracy by 18%.

Selection Recommendations

1. I/O Requirements: Choose the DI335H for systems needing 32+ digital inputs (e.g., large-scale production lines).
2. Environment: Opt for this module in extreme temperatures (-40°C to +85°C) or high-humidity settings.
3. Compatibility: Ensure integration with Toshiba PLCs or third-party systems (e.g., ABB, Siemens DCS).
4. Cost-Efficiency: Balance upfront costs with long-term savings (e.g., reduced maintenance and energy use).

Precautions

1. Installation:

   • Follow grounding guidelines to prevent ESD damage.
   • Ensure proper voltage supply (10–24V DC) to avoid module failure.

2. Operation:

   • Avoid exceeding the maximum voltage (24V DC) or temperature (+85°C).
   • Use shielded cables to minimize EMI interference.

3. Maintenance:

   • Regularly inspect connectors for corrosion or loose connections.
   • Replace modules every 10 years (or as per Toshiba’s maintenance schedule) for optimal performance.
