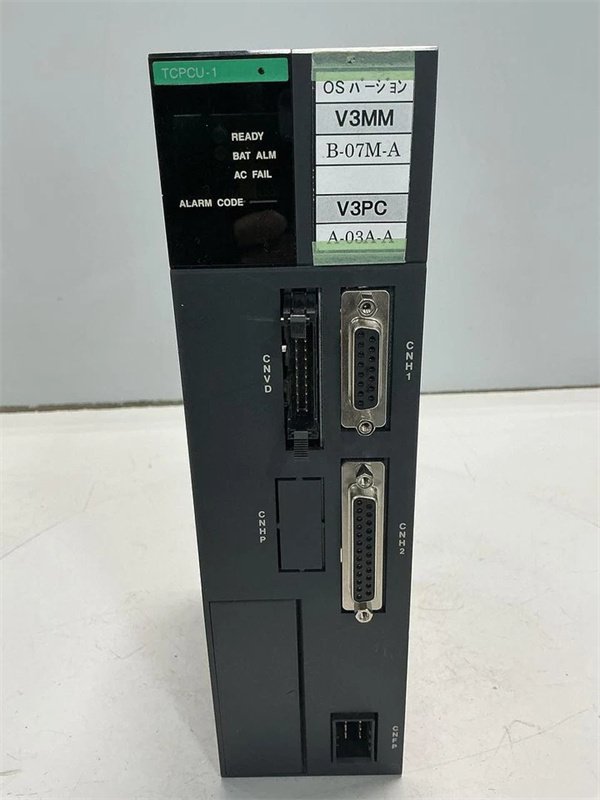

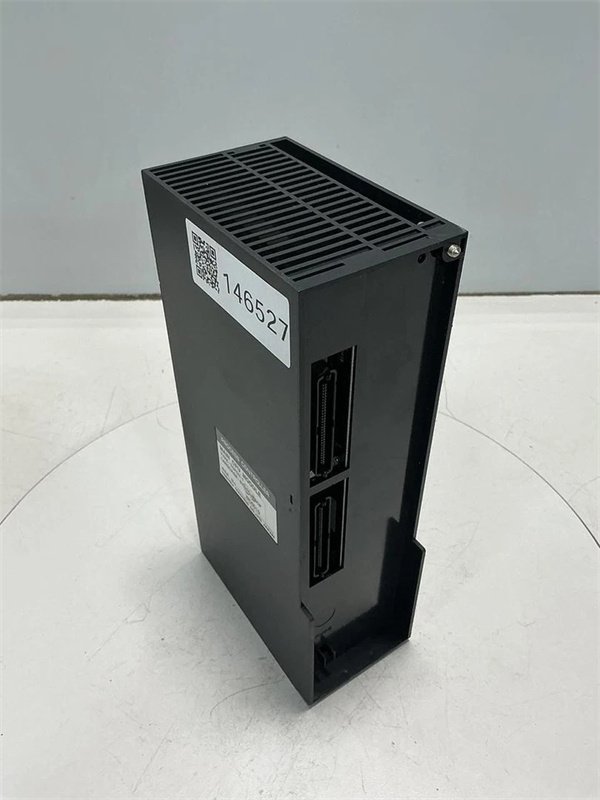

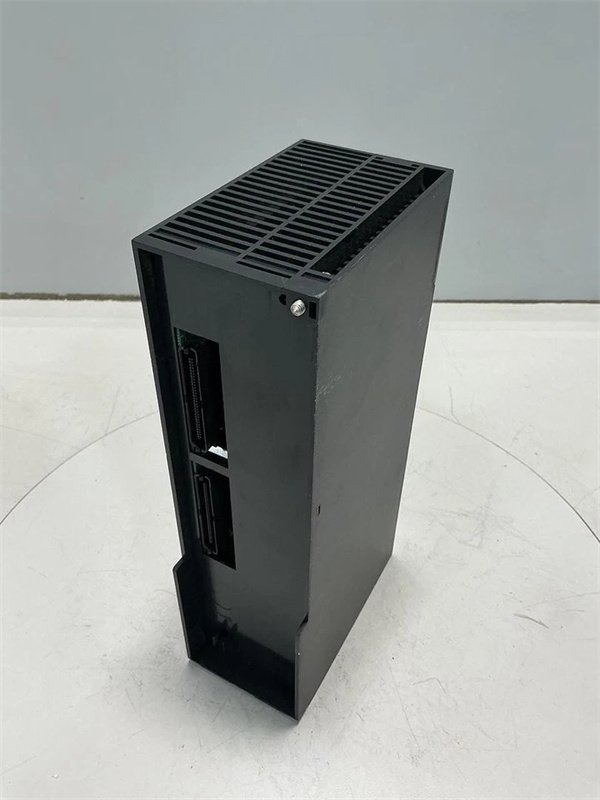

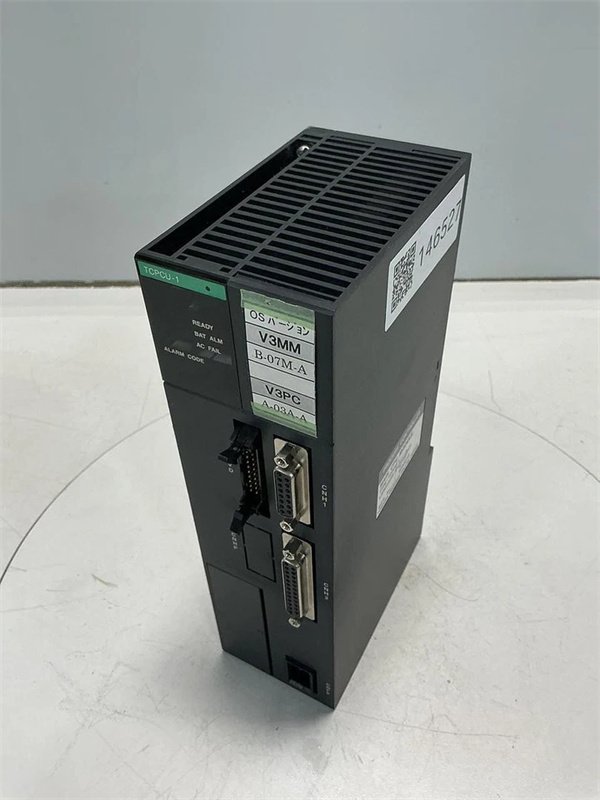

Toshiba TCPCU-1 Industrial Communication Controller

The Toshiba TCPCU-1 is a high-performance industrial communication controller designed for seamless integration in PLC and automation systems. Engineered for real-time data exchange, the TCPCU-1 supports multiple protocols (Modbus RTU/ASCII, Ethernet/IP, Profibus DP) and offers robust connectivity for machinery, process control, and smart factory applications. With a compact DIN-rail mount design and wide voltage input (24V DC ±10%), it ensures reliable operation in harsh environments (-25°C to +70°C). Certified to CE and UL standards, the TCPCU-1 delivers secure data transmission with built-in EMI/RFI protection and error-checking mechanisms.

Product Parameters

Advantages and Features

1. Multi-Protocol Flexibility:

   • Supports seamless integration with legacy and modern systems (Modbus, Ethernet/IP, Profibus).
   • Reduces hardware complexity by consolidating communication tasks into a single module.

2. Reliability and Durability:

   • Wide temperature range (-25°C to +70°C) and rugged design for factory floors and outdoor installations.
   • EMI/RFI shielding and surge protection (6kV) safeguard against electrical noise.

3. Easy Configuration:

   • Web-based GUI for protocol setup and real-time diagnostics.
   • Plug-and-play compatibility with Toshiba PLCs (e.g., Toshiba EX Series) and third-party devices.

Application Areas and Use Cases

Industry Applications:

• Manufacturing (assembly lines, robotic cells).
• Energy (smart grids, renewable energy monitoring).
• Transportation (railway signaling, traffic control systems).
• Utilities (water/wastewater treatment, SCADA networks).

Case Study:

A Japanese automotive plant adopted the Toshiba TCPCU-1 to unify communication between 50+ machines on its assembly line. The module’s multi-protocol support reduced downtime by 20% by eliminating protocol conversion delays. Its compact design also saved 30% panel space compared to legacy solutions.

Competitive Comparison

Compared to similar industrial communication controllers:

• Wider Protocol Support: 3+ protocols (vs. 1–2 in comparable models).
• Higher Temperature Tolerance: +70°C max (vs. +55°C in competing products), suitable for high-heat environments.
• Integrated Web Interface: Built-in GUI (vs. separate software required in competing products), simplifying commissioning.
• Surge Protection: 6kV (vs. 4kV in competing products), enhancing resilience in unstable power networks.

Selection Recommendations

1. Protocol Needs: Choose the TCPCU-1 for systems requiring Modbus, Ethernet/IP, and Profibus integration.
2. Environment: Ideal for high-temperature (+50°C+) or high-vibration settings (e.g., manufacturing floors).
3. Scalability: Pair with Toshiba PLCs (e.g., TC Series) for centralized management of distributed networks.
4. Budget: Cost-effective solution for multi-protocol setups (20–30% lower total cost than modular alternatives).

Precautions

1. Installation:

   • Ensure proper grounding to prevent EMI interference.
   • Use shielded cables for RS-485 connections (max length: 1 km).

2. Operation:

   • Do not exceed voltage/current ratings (24V DC ±10%, ≤50mA).
   • Update firmware regularly via Toshiba’s official portal for security patches.

3. Maintenance:

   • Clean dust from vents quarterly (use compressed air).
   • Replace every 7–10 years (or as per Toshiba’s lifecycle guidelines) for optimal performance.
