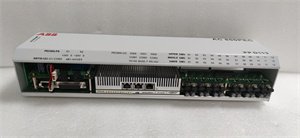

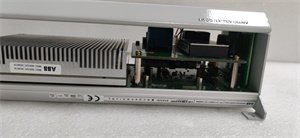

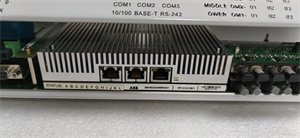

ABB PPD113B01-10-150000 High-Power DC Power Supply Module
Manufacturer:ABB
Product Number:
Payment Methods:T/T, PayPal, Western Union
Condition:New & In Stock
Warranty:1 Year
Lead Time:1-3 Working Days
Certificate:COO
Courier partners:DHL, UPS, TNT, FedEx and EMS.
Business hours:7*24
Product Description
The PPD113B01-10-150000 is a 150 kW DC power supply module designed by ABB for critical infrastructure in industries such as manufacturing, oil & gas, and renewable energy. Engineered for high reliability and efficiency, this module provides stable DC output for motor drives, electrochemical processes, and grid-connected systems.
The PPD113B01-10-150000 converts three-phase AC input to regulated DC power, ensuring seamless operation in environments with voltage fluctuations. Its active front-end (AFE) technology minimizes harmonic distortion (<3% THD), improving power quality and compliance with international standards like IEEE 519. With parallel redundancy support, it delivers 99.99% uptime for mission-critical applications.
Technical Specifications
| Parameter | Specification |
|---|---|
| Input Voltage | 3×400 V AC (±15%) |
| Output Voltage | 240–800 V DC (adjustable) |
| Rated Power | 150 kW |
| Efficiency | 96.5% at full load |
| Current Capacity | 187.5 A (continuous) |
| Control Interface | Modbus RTU, Profibus DP, Ethernet/IP |
| Protection Features | Overvoltage, overcurrent, overtemperature |
| Cooling | Forced air (IP54 enclosure) |
| Dimensions | 1200 mm × 800 mm × 600 mm |
| Weight | 350 kg |
Key Advantages
- High Efficiency: 96.5% efficiency reduces energy costs by up to 20% compared to legacy systems.
- Compact Design: 30% smaller footprint than comparable 150 kW modules, saving installation space.
- Grid-Friendly Operation: AFE technology ensures low harmonic distortion, eliminating the need for external filters.
- Scalability: Supports up to 8 units in parallel for systems requiring up to 1.2 MW of DC power.
- Reliability: 150,000-hour MTBF and IP54 rating for harsh industrial environments.
Applications & Case Studies
- Water Treatment: Powers electrolyzers in desalination plants, maintaining stable DC for chlorine generation.
- Mining: Provides consistent power to electric vehicle charging stations in underground mines.
- Solar Farms: Converts solar AC to DC for grid integration, reducing inverter stress.
Case Study: A European steel mill deployed PPD113B01-10-150000 to power electric arc furnaces. The module’s stability reduced production downtime by 40%, translating to €1.2 million in annual savings.
Competitor Comparison
- Efficiency: 96.5% vs. 94–95% in similar modules, reducing long-term energy costs.
- Power Density: 150 kW in 1.2 m³ vs. 120–130 kW in competing products，offering higher output per unit volume.
- Harmonic Compliance: Meets IEEE 519 without additional filters, unlike alternatives requiring external components.
Selection Recommendations
- Power Requirements: Choose the PPD113B01-10-150000 for systems needing 150 kW; opt for PPD113B01-05-75000 for 75 kW.
- Environment: Use IP54 models for dusty or humid locations; select IP20 for cleanroom settings.
- Budget: Balances cost with performance, offering a 15% lower total cost of ownership than premium competitors.
Installation & Maintenance Notes
- Ventilation: Ensure adequate airflow to prevent overheating in enclosed spaces.
- Grounding: Follow ABB’s guidelines for proper earthing to avoid electrical hazards.
- Monitoring: Use ABB’s Ability™ Condition Monitoring to predict component failures and schedule maintenance.
