ABB AO810 Analog Output Module

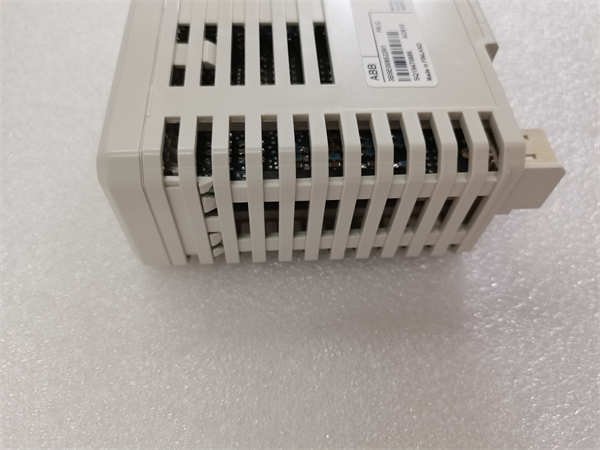

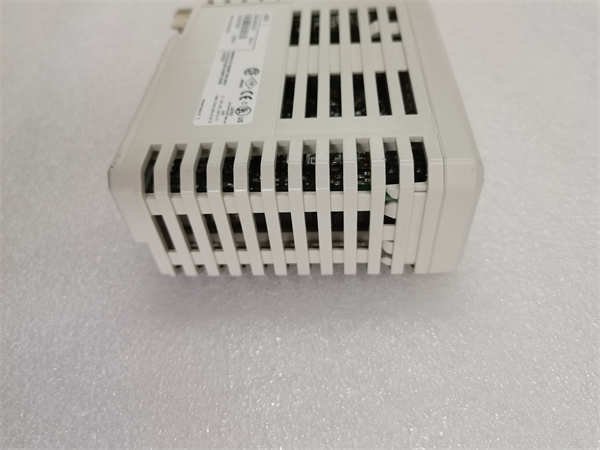

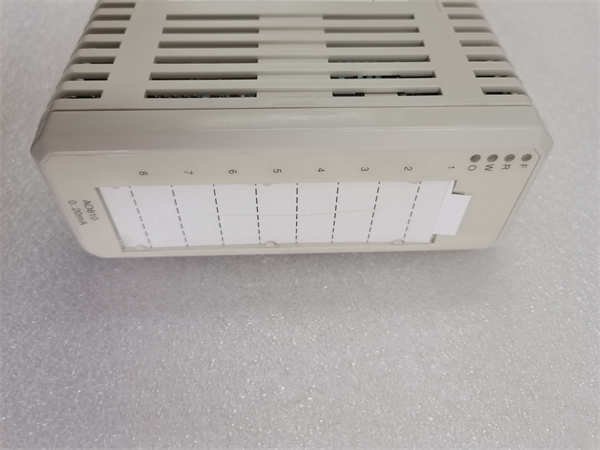

The ABB AO801 is a high-precision analog output module designed for industrial automation systems. It is part of the ABB S800 I/O series and is compatible with various ABB and third-party controllers. The module features 8 output channels that can be configured for 0(4)-20 mA or ±10 V signals, providing high-resolution and precise control for a variety of applications. The AO801 is designed for reliable performance in demanding industrial environments, with a wide operating temperature range and robust protection against electromagnetic interference.

Detailed Parameter Table

Core Advantages and Technical Highlights

High Precision and Reliability: The ABB AO801 offers high-precision analog output with a 12-bit resolution, ensuring accurate signal transmission. It supports short-circuit protection and intra-group isolation, enhancing system reliability.

Advanced Communication: The module supports Modbus TCP/IP and RS-485 communication protocols, facilitating seamless integration into existing automation systems. It can be easily configured and monitored using ABB’s dedicated software.

Robust Design: The AO801 is designed to operate reliably within a wide temperature range of -40°C to +70°C and offers IP20 protection against dust and non-condensing moisture.

Self-Diagnostics: The module performs self-diagnostic checks cyclically, ensuring continuous monitoring of its operational status and providing early detection of potential issues.

Flexible Configuration: Each channel can be independently configured for different signal types and ranges, providing flexibility for various industrial applications.

Typical Application Scenarios

The ABB AO801 is widely used in industries where precise control and monitoring are essential. In manufacturing plants, it controls actuators and valves, ensuring efficient process control. In power generation facilities, the AO801 monitors and controls equipment, optimizing performance and reliability. It is also used in water treatment plants to control pumps and valves, ensuring optimal water management.

Installation Commissioning and Maintenance Instructions

Installation Preparation: Before installing the ABB AO801, ensure the environment meets the specified temperature and humidity requirements (-40°C to +70°C, 5% to 95% RH non-condensing). Use shielded cables and proper grounding to minimize electromagnetic interference. Follow ABB’s guidelines for DIN rail mounting, ensuring proper ventilation and protection from dust.

Maintenance Suggestions: Regularly inspect connections for wear and clean the module with a static-free cloth to ensure optimal heat dissipation. Use ABB’s dedicated software for module configuration and firmware updates. Follow ABB’s guidelines for handling sensitive components, including anti-static measures during maintenance.

Service and Guarantee Commitment

ABB stands behind the quality and reliability of the ABB AO801, offering a comprehensive warranty that covers manufacturing defects and performance issues for a specified period. Our dedicated after-sales support team is available to assist with technical inquiries and provide prompt solutions to ensure minimal disruption to your operations. We also offer extensive training and technical support services to help customers fully leverage the capabilities of the module, ensuring optimal performance and efficiency in their industrial applications.
