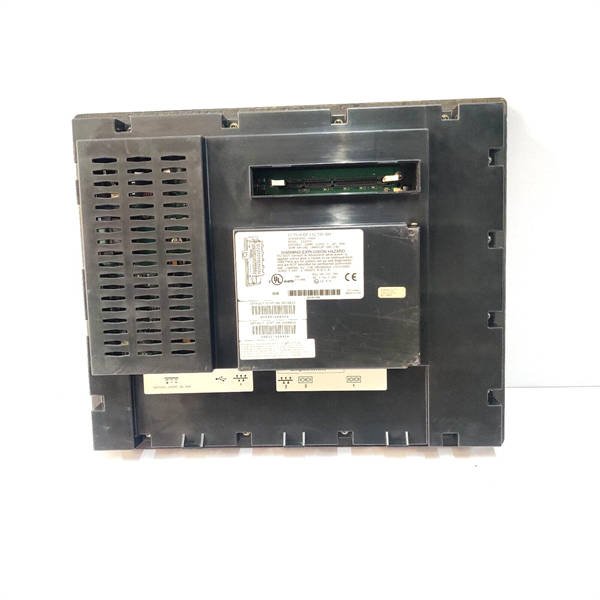

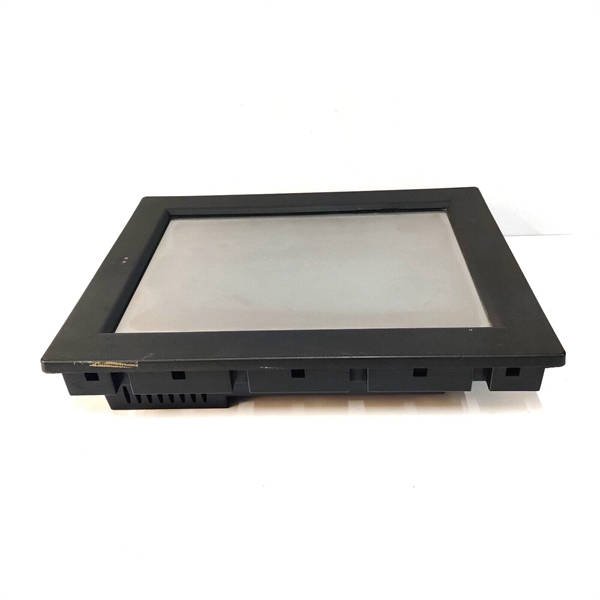

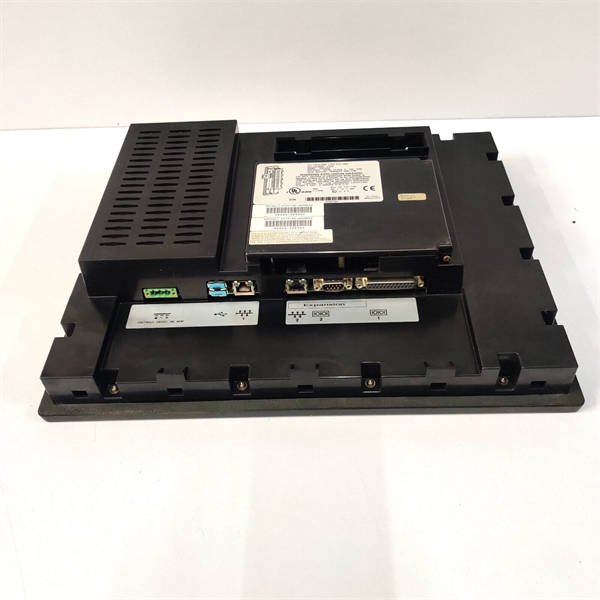

General Electric IC754VBF15CTD 15-Inch Touchscreen HMI

The GE IC754VBF15CTD is a rugged 15-inch touchscreen HMI from GE’s Proficy HMI/SCADA product line, engineered to serve as the critical human-machine interaction hub for medium to large-scale industrial automation systems. As a core component of GE’s industrial control ecosystem, the GE IC754VBF15CTD enables operators to monitor real-time process data, adjust control parameters, and troubleshoot equipment—bridging the gap between field devices (e.g., PLCs, sensors) and human operators.

Equipped with a 15-inch XGA (1024×768) TFT LCD display and 5-wire resistive touchscreen, the GE IC754VBF15CTD delivers clear, high-contrast visuals even in bright industrial environments (300 nits brightness) and supports reliable operation with gloves—essential for sectors like manufacturing and oil and gas where operators may wear protective gear. Its Intel Atom Dual-Core processor (1.86 GHz) and 2 GB DDR3 RAM ensure smooth execution of HMI applications (e.g., Proficy iFIX), while the 32 GB SSD provides secure storage for configuration files and operating system data. With dual Gigabit Ethernet ports and multi-protocol support, the GE IC754VBF15CTD seamlessly connects to GE RX3i PLCs (e.g., IC695CPU315CA) and third-party controllers, making it a versatile choice for integrated automation networks.

Detailed Parameter Table

Core Advantages and Technical Highlights

Rugged Industrial Design: The GE IC754VBF15CTD features an IP65-rated front panel, protecting against dust ingress and low-pressure water jets—critical for harsh environments like food processing plants (where washdowns are common) or automotive factories (with high levels of particulate matter). Its robust construction (reinforced bezel, shock-resistant LCD) also withstands vibration up to 1.5 G (5-500 Hz), ensuring reliable operation on factory floors with heavy machinery.

Superior Visual Clarity and Touch Reliability: Unlike consumer-grade touchscreens, the GE IC754VBF15CTD’s 15-inch XGA display (500:1 contrast ratio) delivers sharp, readable visuals for complex process dashboards—even when displaying multiple data points (e.g., temperature, pressure, flow rate) simultaneously. The 5-wire resistive touchscreen offers 90% light transmission and supports 1 million touch cycles, providing consistent, accurate input without calibration for months—eliminating downtime caused by touch failure.

Flexible Connectivity and Protocol Support: The GE IC754VBF15CTD’s dual Gigabit Ethernet ports enable redundant communication paths to PLCs and SCADA systems—ideal for mission-critical applications (e.g., power generation) where network downtime could cause production losses. It natively supports industry-standard protocols like Modbus TCP, Ethernet/IP, and GE’s proprietary Genius Bus protocol, allowing seamless integration with GE RX3i PLCs (e.g., IC695CPU315CA) and third-party devices (e.g., Siemens S7 PLCs, Allen-Bradley drives). The RS-232/485 port further extends connectivity to legacy serial devices, reducing the need for expensive protocol converters.

Efficient Application Performance: Powered by Windows Embedded Standard 7 (WES7)—a lightweight, industrial-grade OS—the GE IC754VBF15CTD minimizes resource usage while supporting GE’s Proficy iFIX software (a leading HMI/SCADA platform). The Intel Atom Dual-Core processor and 2 GB RAM ensure fast load times for complex HMI screens (e.g., dynamic trend charts, alarm logs) and smooth multitasking—allowing operators to switch between monitoring dashboards and configuration menus without lag. The 32 GB SSD (industrial-grade, with wear leveling) also prevents data loss from unexpected power outages, a common risk in industrial settings.

Typical Application Scenarios

The GE IC754VBF15CTD excels in industrial environments requiring reliable, user-friendly HMI operation. In automotive assembly plants, for example, the GE IC754VBF15CTD is mounted on the factory floor to monitor and control robotic assembly cells: it displays real-time data from RX3i PLCs (e.g., IC695CPU315CA) such as robot position, torque levels, and part detection status, and allows operators to adjust parameters (e.g., conveyor speed) via the touchscreen. Its IP65 front panel withstands occasional washdowns, while the glove-friendly touchscreen enables operation with protective gloves—critical for worker safety.

In oil and gas refineries, the GE IC754VBF15CTD serves as the HMI for distillation column control systems: it visualizes process data (e.g., column temperature, pressure, hydrocarbon flow rate) in real time, triggers alarms for abnormal conditions (e.g., high pressure), and allows operators to remotely adjust control valves via the touchscreen. Its dual Ethernet ports ensure redundant communication with the plant’s SCADA system, preventing data loss during network outages, while its wide operating temperature range (0°C to 50°C) withstands the heat generated by refinery equipment.

In water and wastewater treatment plants, the GE IC754VBF15CTD is used to monitor pump stations and chemical dosing systems: it displays flow meter readings, pH levels, and pump status (from analog sensors connected to RX3i PLCs) and enables operators to start/stop pumps or adjust chemical dosages. The clear XGA display ensures that critical data (e.g., chlorine concentration) is easily readable, while the rugged design resists corrosion from humid, chemical-rich air.

Installation Commissioning and Maintenance Instructions

Installation preparation: Before installing GE IC754VBF15CTD, ensure the mounting panel is flat, rigid, and can support the HMI’s weight (3.5 kg). Verify the input voltage (24V DC) and use a dedicated power supply (e.g., GE IC754PSU2400) to avoid voltage spikes. Mark the mounting holes according to the VESA 100×100 mm standard and cut a panel opening of 350 mm × 275 mm (13.8 in × 10.8 in) to fit the HMI’s front bezel. Wear an ESD wrist strap when handling the unit to protect internal components (e.g., SSD, processor) from electrostatic damage. Secure the HMI to the panel using the provided mounting brackets, ensuring the front panel is flush to maintain IP65 protection.

Maintenance suggestions: Conduct weekly visual inspections of GE IC754VBF15CTD—check for cracks in the front bezel (which could compromise IP65 protection) and clean the touchscreen with a soft, lint-free cloth dampened with isopropyl alcohol (avoid harsh chemicals like acetone). Every month, verify communication connectivity by testing data transfer between the HMI and connected PLCs (e.g., IC695CPU315CA)—reboot the HMI if lag or disconnections occur. Back up HMI configuration files (via Proficy iFIX) to a secure location every 3 months to avoid data loss from SSD failure. If the touchscreen becomes unresponsive, recalibrate it using the built-in Windows calibration tool; for persistent issues (e.g., display flickering), contact GE technical support to avoid unauthorized disassembly (which may void the warranty).
