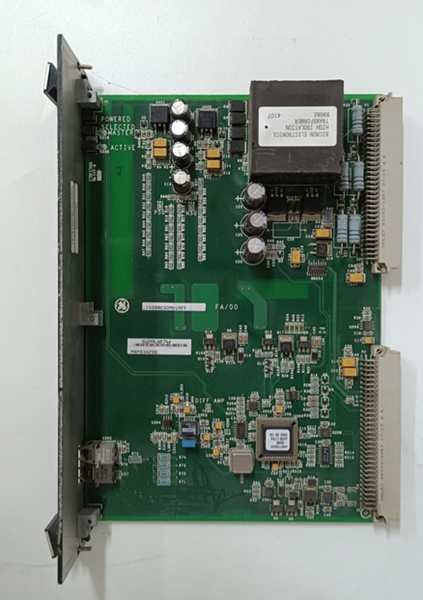

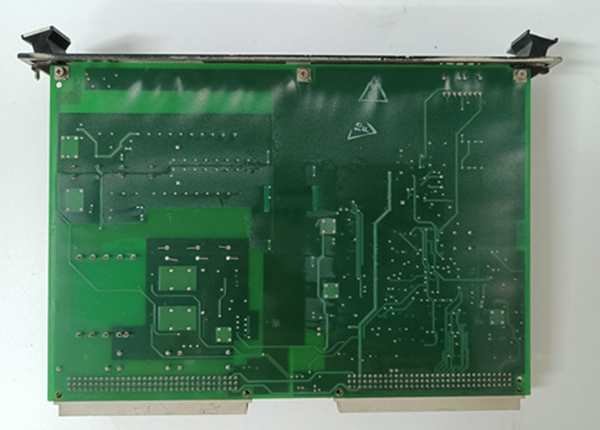

General Electric IS200STCIH4A Steam Turbine Control Interface Module

The IS200STCIH4A is a high-performance steam turbine control interface module developed by GE for its advanced Mark VIe Speedtronic control system. This module serves as the critical interface between the turbine’s sensors/actuators and the main control system, handling both analog and digital signals with exceptional precision and speed.

Designed specifically for steam turbine applications, the IS200STCIH4A provides comprehensive I/O capabilities including 10 analog inputs, 16 digital inputs, 6 analog outputs, and 12 digital outputs. This configuration strikes an optimal balance between channel count and compact size, making it ideal for medium to large steam turbines where space is at a premium.

The IS200STCIH4A plays a vital role in modern turbine control architectures by providing reliable signal processing, precise control outputs, and seamless communication with other system components. Its rugged design ensures reliable operation in the harsh environments typical of power generation facilities, making it an essential component for ensuring efficient and safe turbine operation.

Detailed Parameter Table

Core Advantages and Technical Highlights

Optimized I/O Configuration: The IS200STCIH4A offers a balanced mix of analog and digital channels that perfectly matches the requirements of most medium to large steam turbines. This optimized configuration eliminates the need for multiple interface modules, reducing system complexity and cost.

High-Speed Signal Processing: With response times of less than 1ms for analog signals and 0.5ms for digital signals, the IS200STCIH4A ensures rapid processing of critical turbine data. This speed is essential for maintaining stable turbine operation during transient conditions.

Enhanced Reliability: The module’s robust design features high isolation ratings (2.5kV channel-to-channel and 5kV input/output-to-backplane) to protect against electrical noise and interference. This isolation, combined with its wide operating temperature range, ensures reliable performance in demanding industrial environments.

Flexible Output Configuration: The module’s digital outputs can be configured as either relays or solid-state devices, providing flexibility to match various field device requirements. This versatility makes the IS200STCIH4A suitable for a wide range of control applications within the turbine system.

Seamless System Integration: The IS200STCIH4A integrates seamlessly with the Mark VIe system through its backplane connection and communication interfaces. This allows for centralized monitoring and control while maintaining the high performance required for steam turbine applications.

Typical Application Scenarios

In coal-fired power plants, the IS200STCIH4A serves as a key interface between the Mark VIe controller and the steam turbine’s various systems. It monitors critical parameters such as steam pressure, temperature, flow rates, and bearing temperatures while controlling valves, pumps, and other actuators throughout the steam path.

For example, during turbine startup, the IS200STCIH4A processes signals from temperature sensors to ensure proper warm-up sequences are followed. It controls the opening of steam admission valves based on these temperature readings, preventing thermal shock to turbine components.

In combined-cycle power plants, the IS200STCIH4A coordinates with gas turbine control systems to optimize overall plant performance. It adjusts steam turbine operations based on gas turbine output and heat recovery steam generator (HRSG) conditions, ensuring efficient power generation across varying load demands.

The module also plays a crucial role in turbine protection systems. It continuously monitors for abnormal conditions such as overspeed, excessive vibration, or bearing temperature excursions, and can initiate appropriate protective actions including emergency shutdowns when necessary.

Installation Commissioning and Maintenance Instructions

Installation preparation: Before installing the IS200STCIH4A, ensure the Mark VIe backplane is powered down. Verify that the operating environment meets the module’s specifications (-40°C to +85°C). Use ESD-protective equipment during handling. Confirm that the backplane slot is compatible with interface modules and that the 24VDC power supply meets the required specifications (±10% tolerance). Use shielded twisted-pair cables for all signal connections and ensure proper grounding according to GE guidelines.

Commissioning: After physical installation, configure the IS200STCIH4A using GE’s ToolboxST software. Set up the input channels for the specific sensors being used, configure output parameters, and verify communication with the main controller. Perform functional tests to ensure all I/O channels operate correctly and that the module properly processes and transmits turbine control signals.

Maintenance suggestions: Regularly monitor the IS200STCIH4A status through the Mark VIe HMI. Review diagnostic information to identify any potential issues with the module or connected sensors. Perform periodic calibration of analog channels to maintain measurement accuracy. Keep firmware updated to the latest version recommended by GE. If a failure occurs, follow proper lockout/tagout procedures before replacement. Always use GE-approved replacement parts to ensure system compatibility and reliability.
