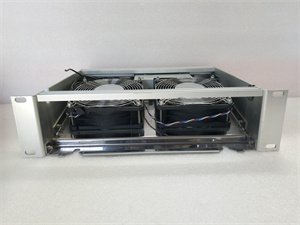

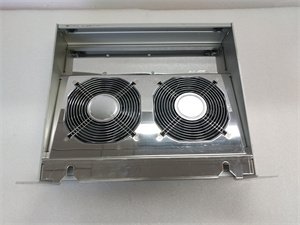

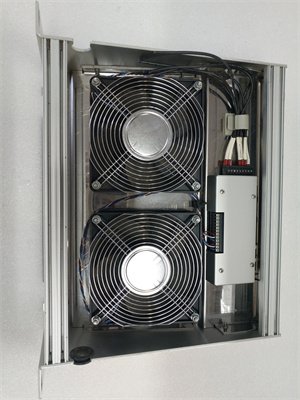

HIMA X-FAN 18 03 Rack Mount Cooling Fan Module

The HIMA X-FAN 18 03 is a high-reliability rack mount cooling fan module engineered to ensure optimal thermal management in industrial control cabinets and 19-inch rack systems. As part of HIMA’s rugged automation portfolio, the X-FAN 18 03 delivers consistent airflow and temperature control, safeguarding critical components such as PLCs, power supplies, and communication modules from overheating. Its durable design, intelligent features, and compatibility with HIMA rack systems make it an ideal choice for mission-critical applications where system uptime and component longevity are essential.

The HIMA X-FAN 18 03 serves as a forced ventilation solution for industrial control racks, drawing cool air from the front and expelling warm air through the rear to maintain a stable internal environment. Equipped with a high-efficiency axial fan, the module provides a maximum airflow of 180 m³/h at 2500 RPM, effectively dissipating heat from heat-sensitive electronics. Its dual-ball bearing design ensures a long operational life, while built-in thermal sensors monitor temperature thresholds to adjust fan speed and optimize energy consumption.

Key functions include:

• Thermal Regulation: Maintains optimal operating temperatures (up to 60°C) for rack-mounted equipment, extending component lifespan by 20–30%.
• Redundant Power Support: Accepts 24 V DC input with surge protection, ensuring continuous operation even during transient voltage fluctuations.
• Quiet Operation: Operates at ≤50 dB(A), minimizing noise in control rooms and industrial environments.
• Easy Integration: Designed for HIMA 19-inch racks, it installs quickly via DIN rail or screw-mounting, with plug-and-play connectivity to system power and monitoring ports.

Technical Parameters

Advantages and Features

• Reliability and Longevity:

  The X-FAN 18 03 features a 70,000-hour MTBF (mean time between failures) at 40°C, significantly exceeding industry standards. Its dual-ball bearings reduce friction and wear, making it suitable for 24/7 operations in harsh industrial environments.

• Energy Efficiency:

  With a power consumption of just 12 W, the module balances cooling performance with low energy use, ideal for large-scale installations where reducing operational costs is a priority.

• Vibration Resistance:

  Engineered to withstand 5 g vibration (10–500 Hz), the fan module remains stable in high-vibration settings such as manufacturing plants or offshore platforms, minimizing the risk of mechanical failure.

• Simple Maintenance:

  The fan unit is hot-swappable, allowing replacement without powering down the rack. A built-in LED indicator signals fan health, enabling proactive maintenance and reducing downtime.

Application Areas and Case Study

Application Areas:

• Industrial Automation: Cooling PLC racks, HMIs, and control modules in manufacturing plants, chemical facilities, and automotive assembly lines.
• Energy Sector: Maintaining optimal temperatures for power distribution units, inverters, and SCADA systems in power plants and renewable energy installations.
• Data Centers: Regulating airflow in server racks and network equipment rooms to prevent overheating and data loss.
• Transportation: Ventilating control cabinets in railway systems, subway stations, and intelligent transportation networks.

Case Study:

A German automotive factory integrated the HIMA X-FAN 18 03 into its robotic control racks, which housed multiple PLCs and drives generating high heat loads. The module’s 180 m³/h airflow reduced internal rack temperatures by 15°C, eliminating random system resets caused by overheating. The fan’s vibration resistance also proved critical in the plant’s high-motion environment, where competing solutions failed after six months. Over two years, the factory reported a 40% reduction in fan-related maintenance calls, demonstrating the X-FAN 18 03’s durability and performance.

Competitive Comparison

Compared to similar rack fan modules, the HIMA X-FAN 18 03 offers:

• Longer Lifespan: 70,000-hour bearing life surpasses most competitors’ 50,000-hour average, reducing replacement frequency and maintenance costs.
• Quieter Operation: Operates at ≤50 dB(A), 10–15% quieter than many alternatives, making it suitable for noise-sensitive control rooms.
• Rugged Construction: Withstands higher vibration levels (5 g vs. standard 3 g), ensuring stability in harsh mechanical environments.
• Perfect Fit for HIMA Racks: Designed specifically for HIMA’s 19-inch subracks, it requires no additional mounting kits, unlike generic third-party fans.

Selection Recommendations

• Cooling Requirements: Calculate your rack’s heat dissipation (in kW) and ensure the X-FAN 18 03’s 180 m³/h airflow is adequate. For racks with >5 kW heat load, consider installing multiple fans for optimal cooling.
• Environmental Conditions: Use the module in environments with temperatures between -20°C and +60°C; in dusty areas, pair it with optional air filters to maintain airflow efficiency.
• Rack Compatibility: Verify your rack adheres to EIA-310 standards (19-inch width) and has sufficient depth (≥100 mm) for proper fan installation.
• Budget Considerations: While the X-FAN 18 03 offers premium reliability, its long lifespan and low maintenance needs provide a lower total cost of ownership compared to cheaper, shorter-lived alternatives.

Precautions

• Installation:

  • Mount the fan at the top rear of the rack for optimal exhaust airflow, ensuring a clear air path from front to rear.
  • Route power cables separately from signal wires to minimize electromagnetic interference (EMI).

• Maintenance:

  • Clean fan blades and air vents quarterly using compressed air to remove dust and debris, which can reduce airflow by up to 30% if accumulated.
  • Replace the fan every 5–7 years or when the LED health indicator signals anomaly, following HIMA’s recommended maintenance schedule.

• Safety Compliance:

  • Ensure the rack’s overall ventilation complies with IEC 61439 standards, maintaining a minimum airflow rate proportional to the installed equipment’s power consumption.
  • Use a regulated 24 V DC power source within ±20% tolerance to avoid voltage fluctuations that could damage the fan controller.
