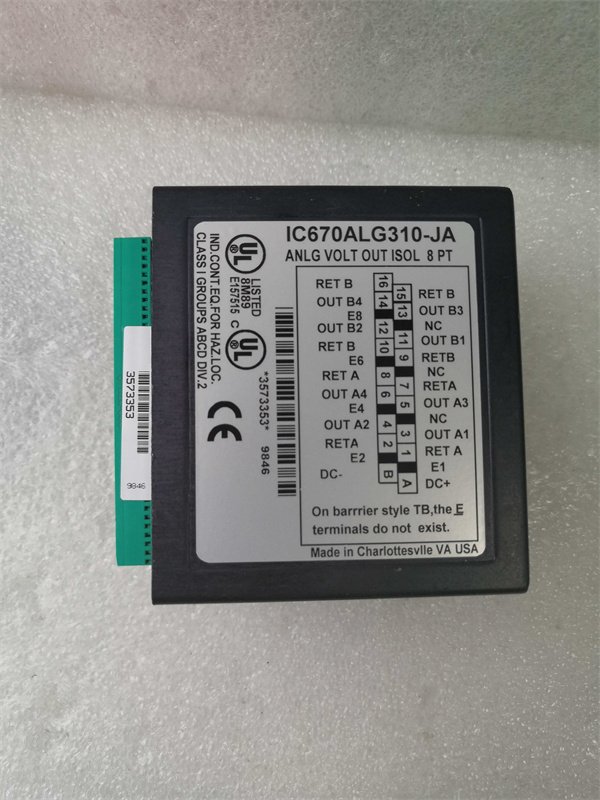

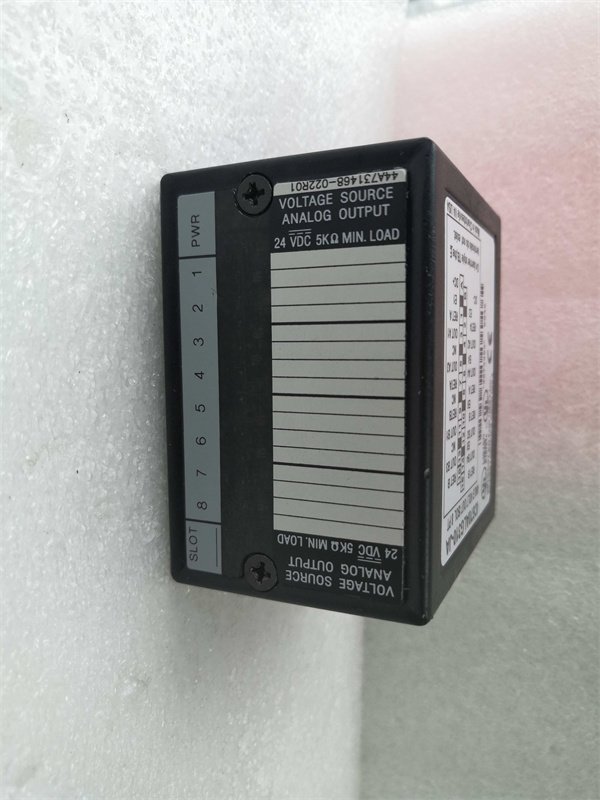

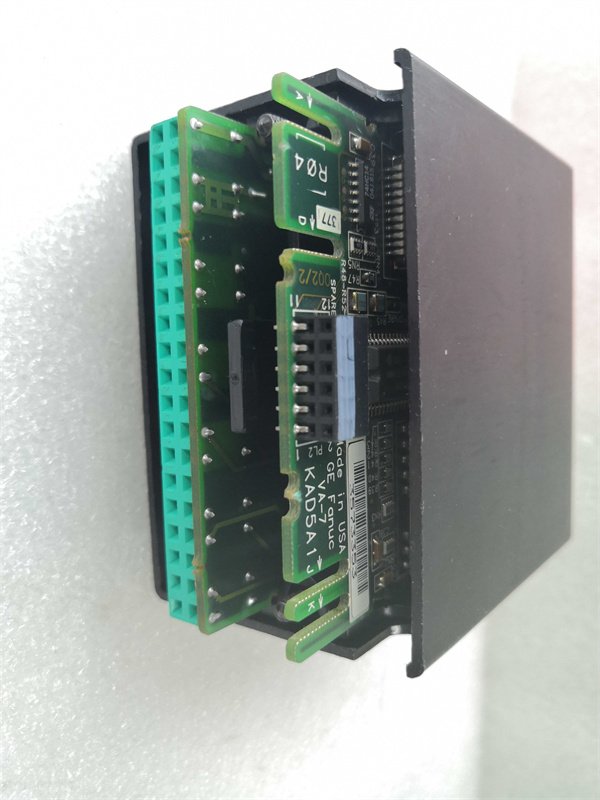

General Electric IC670ALG310 Analog Output Module
Manufacturer: General Electric
Product Number: IC670ALG310
Category: Analog Output Module
Number of Channels: 8
Output Type: Voltage (±10V) with 50mV over/under range
Resolution: 14 bits
Bus Current Draw: 170 mA
Fault Detection: Over/underrange faults, user power loss, uncalibrated module
Series Compatibility: GE Fanuc Genius I/O, Rx7i PACSystem
Product Description
The GE IC670ALG310 is a high-performance analog voltage output module designed for industrial automation systems. It is part of the GE Fanuc Genius I/O series and provides reliable and precise control of analog devices. This module is ideal for applications requiring high accuracy and flexibility in signal output.
Detailed Parameter Table
| Parameter Name | Parameter Value |
|---|---|
| Product model | GE IC670ALG310 |
| Manufacturer | GE Fanuc |
| Product category | Analog Output Module |
| Operating Voltage | 18-30 VDC |
| Input Channels | N/A |
| Output Channels | 8 |
| Output Range | -10V to +10V or 0V to +10V |
| Resolution | 14-bit |
| Accuracy | ±0.1% of full scale |
| Operating Temperature Range | 0°C to 60°C |
| Storage Temperature Range | -40°C to 85°C |
| Humidity Range | 5% to 95% RH (non-condensing) |
| Dimensions | 149.2 mm × 44.45 mm × 115.6 mm |
| Weight | 0.4 lbs |
| Certifications | CE, UL, CSA |
Core Advantages and Technical Highlights
High Precision and Flexibility
The GE IC670ALG310 features 8 single-ended analog voltage output channels with a resolution of 14 bits and an accuracy of ±0.1% of full scale. This high precision ensures reliable control of industrial processes.
Wide Operating Range
The module operates reliably within a temperature range of 0°C to 60°C and a storage temperature range of -40°C to 85°C, making it suitable for harsh industrial environments.
Enhanced Diagnostics
The GE IC670ALG310 includes advanced diagnostic capabilities, such as over-range and under-range detection, user power loss detection, and uncalibrated module detection. These features help in proactive maintenance and minimizing downtime.
Compact Design
With dimensions of 149.2 mm × 44.45 mm × 115.6 mm and a weight of 0.4 lbs, the GE IC670ALG310 is compact and lightweight, making it suitable for space-constrained applications.
Typical Application Scenarios
The GE IC670ALG310 is widely used in various industrial applications, including:
-
Manufacturing: Controlling valves and actuators in production lines.
-
Power Generation: Adjusting parameters in power plants.
-
Chemical Processing: Controlling chemical processes and reactions.
-
Food Processing: Managing conveyor speeds and cooking/cooling processes.
Installation Commissioning and Maintenance Instructions
Installation Preparation
Before installing the GE IC670ALG310, ensure that the power to the system is turned off to avoid electrical hazards. Check the module for any visible damage and ensure that the installation environment meets the specified temperature and humidity ranges.
Maintenance Suggestions
Regular maintenance is essential to ensure the longevity and reliability of the GE IC670ALG310. Periodically inspect the module for loose connections, signs of wear, or corrosion. Clean the module and its surroundings to prevent dust accumulation, which can lead to overheating.
Service and Guarantee Commitment
The GE IC670ALG310 is backed by a comprehensive warranty, ensuring customer satisfaction and peace of mind. GE Fanuc is committed to providing exceptional after-sales service, with a dedicated technical support team available to assist with any issues or inquiries.
