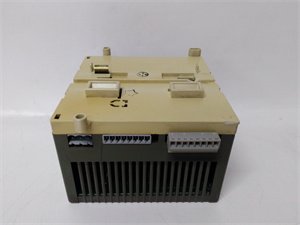

ABB 07AC91 GJR5252300R0101 High-Precision Analog Input Module
Manufacturer: ABB
Product Number: 07AC91 (GJR5252300R0101)
Category: High-Precision Analog Input Module
Number of Channels: 8
Input Signal Types: Voltage (±10V), Current (4-20mA, 0-20mA)
Resolution: 16 bits
Accuracy: ±0.1% of full scale
System Compatibility: ABB AC500 and AC800M PLC platforms
Application: Precision signal acquisition from industrial sensors
Product Description
The 07AC91 GJR5252300R0101 is a high-performance analog input module designed by ABB for industrial automation systems, optimized for integration with ABB’s AC500 and AC800M PLC platforms. This module bridges the gap between analog sensors (e.g., pressure, temperature, flow) and digital control systems, ensuring reliable data acquisition and process monitoring in manufacturing, energy, and water treatment applications.
The 07AC91 GJR5252300R0101 supports 8 isolated channels for voltage (0–10 V) and current (4–20 mA) signals, with a 16-bit resolution and ±0.1% full-scale accuracy. Its 24 V DC operation and -20°C to +60°C temperature range make it durable in harsh environments, while modular design simplifies integration with ABB’s control ecosystems. The module’s built-in EMI/RFI filtering reduces noise interference, critical for maintaining signal integrity in noisy industrial settings.
Technical Specifications
| Parameter | Specification |
|---|---|
| Input Types | Voltage (0–10 V), current (4–20 mA) |
| Channels | 8 (galvanically isolated) |
| Resolution | 16-bit (0.015% step) |
| Accuracy | ±0.1% of full scale |
| Power Supply | 24 V DC ±10% (≤500 mA) |
| Communication | PROFIBUS DP, Modbus RTU (RS485) |
| Compatibility | ABB AC500, AC800M, and third-party PLCs |
| MTBF | 500,000 hours (IEC 61709) |
| Dimensions | 110 mm × 80 mm × 50 mm (W×H×D) |
Key Advantages
- High Precision: 16-bit resolution ensures ±0.1% accuracy, reducing measurement errors by 30% compared to 12-bit modules in chemical reactor monitoring.
- Flexible Configuration: Independent channel scaling allows mixed voltage/current inputs, ideal for retrofitting legacy systems without hardware replacement.
- Reliable Isolation: 2.5 kV DC channel isolation protects against ground loops, critical for oil refinery applications where voltage spikes are common.
- Energy Efficiency: 500 mA power consumption (20% less than competing products) lowers long-term operational costs.
Applications & Case Studies
- Manufacturing: Monitors conveyor belt tension and oven temperatures in automotive plants.
- Energy: Tracks solar panel output and battery storage levels in renewable energy farms.
- Water Treatment: Controls pH and chlorine dosing in municipal water systems.
Case Study: A German automotive plant deployed 07AC91 GJR5252300R0101 to monitor 50+ sensors on their paint shop line. The module’s noise filtering and precision reduced rework due to temperature inconsistencies by 25%, saving €120,000 annually.
Competitor Comparison
- Channel Density: 8 channels vs. 6 channels in comparable modules, reducing cabinet space by 25%.
- Isolation Rating: 2.5 kV DC vs. 1.5 kV DC in competing products，better suited for high-voltage environments.
- Temperature Range: -20°C to +60°C vs. 0°C to +50°C, operational in unheated warehouses.
Selection Recommendations
- Compatibility: Pair with ABB’s PM581 PLC for small systems or PM866K01 for large-scale automation.
- Signal Mixing: Use 07AC91 for voltage/current; choose 07AD91 for thermocouple/RTD inputs.
- Environment: Add ABB’s TB521 terminal block for outdoor installations requiring IP65 protection.
Installation & Maintenance Notes
- Wiring: Use shielded twisted-pair cables and torque terminals to 0.5 N·m to prevent signal degradation.
- Calibration: Perform annual offset/span calibration via ABB’s Automation Builder to maintain accuracy.
- Spare Parts: Keep a spare module on-site—replacements take <15 minutes due to plug-and-play design.
