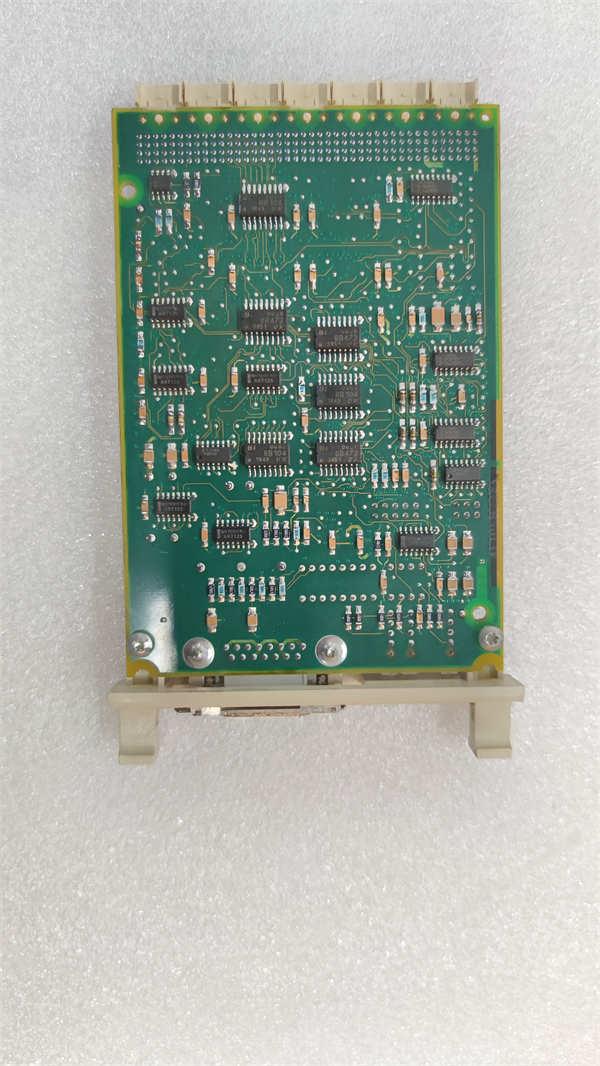

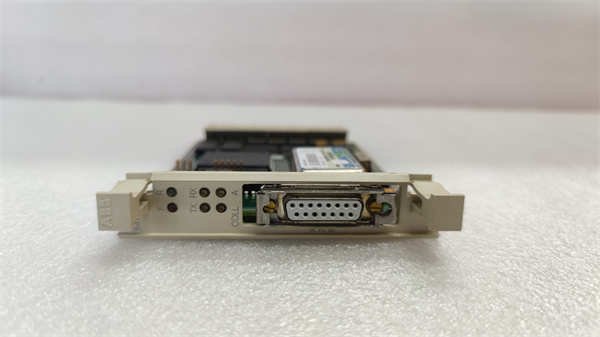

ABB CI547 Communication Interface Module

The ABB CI547 is a high-performance communication interface module designed for industrial automation systems. It is used to facilitate efficient data exchange between control systems and field devices, particularly in ABB’s AC 800M controller systems. The CI547 supports multiple communication protocols, including Profibus DP, Modbus RTU, EtherNet/IP, and PROFINET IO, ensuring seamless integration with various industrial automation systems.

Detailed Parameter Table

Core Advantages and Technical Highlights

Advanced Communication Capabilities: The CI547 supports multiple communication protocols, making it highly versatile for various industrial applications. It features two Ethernet interfaces with a data transfer rate of up to 100 Mbps.

Redundant Communication: The module supports redundant communication, enhancing system reliability and availability.

Robust Design: Built for industrial environments, the CI547 operates efficiently within a wide temperature range of -20°C to +70°C and offers IP20 protection.

User-Friendly Configuration: The CI547 features built-in LED indicators for real-time status monitoring and error detection, simplifying maintenance and troubleshooting.

Typical Application Scenarios

The ABB CI547 is widely used in various industrial sectors:

• Manufacturing Plants: For real-time control and monitoring of production lines.

• Power Generation Facilities: To monitor and control power plants and substations.

• Process Control: In chemical, oil, and gas industries for process monitoring and regulation.

• Water Treatment Plants: For controlling pumps and valves in water treatment processes.

• Building Automation: For lighting, HVAC systems, and other automation equipment in large buildings.

Installation Commissioning and Maintenance Instructions

Installation Preparation: Ensure the environment meets the specified temperature and humidity requirements (-20°C to +70°C, 5% to 95% RH non-condensing). Use shielded cables and proper grounding to minimize electromagnetic interference. Follow ABB’s guidelines for DIN rail mounting, ensuring proper ventilation and protection from dust.

Maintenance Suggestions: Regularly inspect connections for wear and clean the module with a static-free cloth to ensure optimal heat dissipation. Use ABB’s dedicated software for module configuration and firmware updates. Follow ABB’s guidelines for handling sensitive components, including anti-static measures during maintenance.

Service and Guarantee Commitment

ABB stands behind the quality and reliability of the CI547, offering a comprehensive warranty that covers manufacturing defects and performance issues for a specified period. Our dedicated after-sales support team is available to assist with technical inquiries and provide prompt solutions to ensure minimal disruption to your operations.
