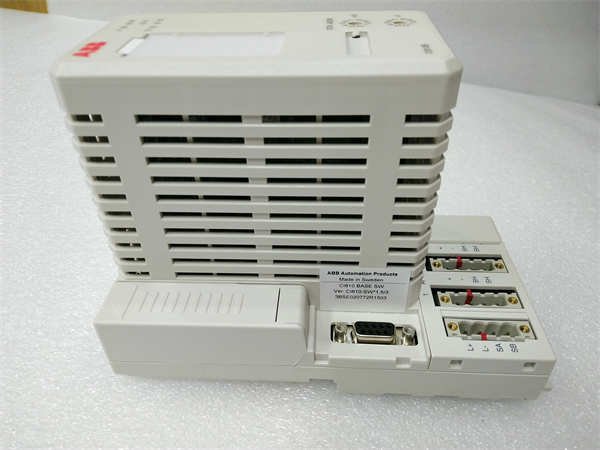

ABB CI810B 3BSE020520R Communication Interface Module

The ABB CI810B 3BSE020520R is a high-performance fieldbus communication interface module designed for seamless integration into complex industrial automation systems. It enables high-speed data communication between ABB’s 800xA Distributed Control System (DCS) and field devices on the AF 100 fieldbus network.

Detailed Parameter Table

Core Advantages and Technical Highlights

Advanced Communication Capabilities: The CI810B supports the AF 100 fieldbus protocol, based on PROFIBUS DP, with a data transfer rate of up to 5 Mbps, ensuring fast and reliable communication.

Robust Design: Built for industrial environments, the CI810B operates efficiently within a wide temperature range of -40°C to +70°C and offers IP20 protection.

User-Friendly Configuration: The module includes built-in LED indicators for real-time status monitoring and error detection, simplifying maintenance and troubleshooting.

Included Components: The CI810B comes with 1 power supply connector, 1 modulebus terminator, and 2 terminal blocks, making it easy to integrate into existing systems.

Typical Application Scenarios

The ABB CI810B 3BSE020520R is widely used in various industrial sectors:

• Manufacturing Plants: For real-time control and monitoring of production lines.

• Power Generation Facilities: To monitor and control power plants and substations.

• Process Control: In chemical, oil, and gas industries for process monitoring and regulation.

• Water Treatment Plants: For controlling pumps and valves in water treatment processes.

• Building Automation: For lighting, HVAC systems, and other automation equipment in large buildings.

Installation Commissioning and Maintenance Instructions

Installation Preparation: Ensure the environment meets the specified temperature and humidity requirements (-40°C to +70°C, 5% to 95% RH non-condensing). Use shielded cables and proper grounding to minimize electromagnetic interference. Follow ABB’s guidelines for DIN rail mounting, ensuring proper ventilation and protection from dust.

Maintenance Suggestions: Regularly inspect connections for wear and clean the module with a static-free cloth to ensure optimal heat dissipation. Use ABB’s dedicated software for module configuration and firmware updates. Follow ABB’s guidelines for handling sensitive components, including anti-static measures during maintenance.

Service and Guarantee Commitment

ABB stands behind the quality and reliability of the CI810B 3BSE020520R, offering a comprehensive warranty that covers manufacturing defects and performance issues for a specified period. Our dedicated after-sales support team is available to assist with technical inquiries and provide prompt solutions to ensure minimal disruption to your operations.
