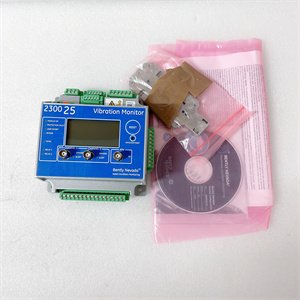

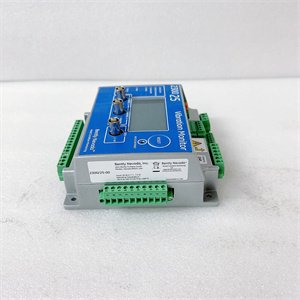

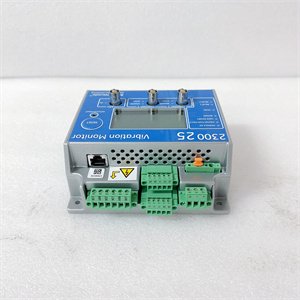

Bently Nevada 2300/25-00 Vibration Monitoring Module
Manufacturer: Bently Nevada
Product Number: 2300/25-00
Category: Vibration Monitoring Module
Number of Channels: Dual-channel
Series: 2300 Series
Sensor Support: Seismic or proximity sensors
Application: Continuous machinery health assessment in industrial environments
Product Description
The Bently Nevada 2300/25-00 is a compact, dual-channel vibration monitoring module designed for continuous machinery health assessment in industrial environments. Part of the 2300 Series, it supports seismic or proximity sensors to measure vibration amplitude, velocity, or displacement, providing real-time data for predictive maintenance. The module features two configurable relay outputs for alarms/shutdowns, a 4-20 mA analog output for integration with distributed control systems (DCS), and Ethernet connectivity for remote monitoring. Its rugged design ensures reliable operation in harsh conditions, making it ideal for mid- to low-criticality machinery such as pumps, fans, and compressors.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | 2300/25-00 |
| Channels | 2 (vibration) + 1 (speed, optional) |
| Input Signals | Accelerometer/velomitor/proximitor |
| Input Range | ±10 VDC (vibration), 0–10 VDC (speed) |
| Power Supply | 24 VDC ±10% (module), 220 VAC (external) |
| Relay Outputs | 2 SPDT, 5 A @ 250 VAC/30 VDC |
| Analog Output | 4–20 mA (configurable) |
| Communication | Ethernet 10/100BASE-T |
| Operating Temperature | -40°C to +70°C |
| Dimensions | 263 mm × 138 mm × 88 mm (W × H × D) |
| Weight | 2.35 kg |
Advantages and Features
- Dual-Channel Flexibility: Simultaneously monitor two vibration parameters (e.g., X/Y axes) or one vibration and one speed channel.
- Real-Time Alarming: Programmable setpoints trigger relays for immediate action during 异常振动.
- System 1 Classic Integration: Seamless compatibility with existing Bently monitoring infrastructure.
- Compact Design: Space-saving form factor for retrofitting or new installations.
- Extended Environmental Ratings: Resistant to dust, moisture, and temperature extremes.
Application Areas and Use Cases
Industry Applications:
- Oil & Gas: Monitoring pumps and compressors in refineries.
- Power Generation: Steam turbine auxiliary equipment.
- Water Treatment: Centrifugal pumps and blowers.
Case Study: A North American water treatment plant reduced maintenance costs by 30% using the 2300/25-00 to detect bearing degradation in pumps before failures occurred, avoiding $500,000 in emergency repairs.
Competitor Comparison
- Higher Channel Density: Offers two vibration channels in a single module, compared to some 1-channel alternatives.
- Enhanced Connectivity: Built-in Ethernet simplifies integration with digital monitoring platforms.
- Cost-Effective: Balances performance and price for non-critical machinery, unlike premium high-end systems.
Selection Recommendations
- Compatibility: Ensure alignment with 2300 Series racks and System 1 Classic software.
- Expansion Needs: Pair with additional modules (e.g., 2300/20 for analog outputs) for multi-point monitoring.
- Power Requirements: Verify voltage compatibility with local power systems.
Precautions
- Sensor Calibration: Regularly calibrate sensors to maintain accuracy (recommended every 12 months).
- Mounting: Install in a vibration-isolated location away from direct heat sources.
- Firmware Updates: Keep firmware current to access new features and compliance certifications.
