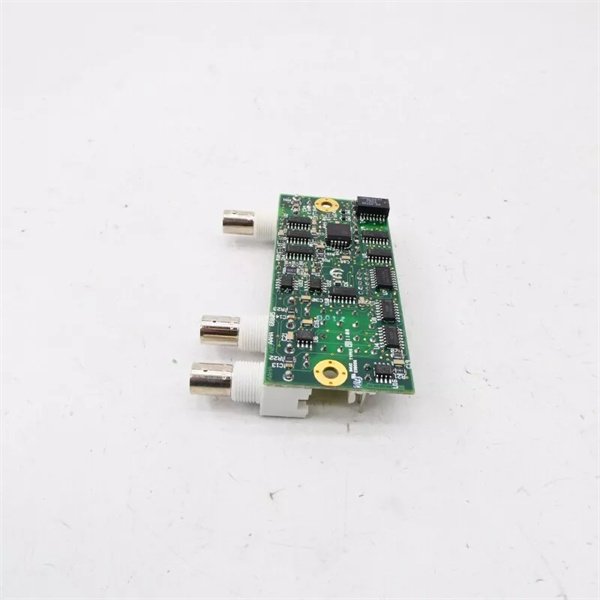

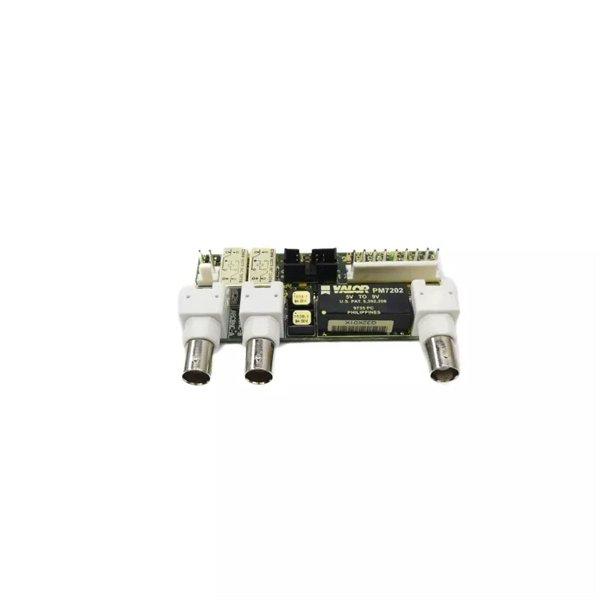

General Electric DS200AAHAH1A Analog Input Module

The DS200AAHAH1A is a high-performance analog input module from GE’s Mark V/VI turbine control system product line, designed to interface between field sensors and the main control processor. This module excels at converting and conditioning analog signals from various sensors into digital data that the turbine control system can process for precise operation and monitoring.

With its robust design and high-precision signal conditioning capabilities, DS200AAHAH1A ensures accurate and reliable measurement of critical turbine parameters even in harsh industrial environments characterized by vibration, temperature extremes, and electromagnetic interference.

Application Scenarios

A 750 MW coal-fired power plant in Ohio was experiencing challenges with their steam turbine monitoring system. The existing analog input modules were prone to measurement drift and noise interference, causing inaccuracies in pressure, temperature, and flow measurements. These inaccuracies led to suboptimal turbine performance and increased maintenance requirements.

After upgrading to DS200AAHAH1A modules, the plant saw immediate improvements: measurement accuracy improved by 35%, system stability increased, and maintenance interventions related to sensor calibration dropped by 50%. The module’s robust design also withstood the high-electromagnetic interference environment in the turbine hall, eliminating previous signal corruption issues.

Parameter

Technical Principles and Innovative Values

Innovation Point 1 – High-Precision Signal ConditioningDS200AAHAH1A incorporates advanced analog-to-digital converters with temperature-compensated circuitry to maintain ±0.1% accuracy across the operating temperature range. This level of precision is crucial for turbine control applications where small measurement errors can lead to significant efficiency losses.

Innovation Point 2 – Flexible Input ConfigurationUnlike fixed-range analog input modules, DS200AAHAH1A offers configurable input ranges that can be set per channel. This flexibility allows the same module to interface with various types of sensors throughout the turbine system, reducing inventory requirements and simplifying spares management.

Innovation Point 3 – Robust Industrial DesignThe module’s design features rugged components and extensive protection circuitry to withstand the harsh operating conditions found in power plants and industrial facilities. This includes protection against overvoltage, short circuits, and electromagnetic interference, ensuring reliable operation even in challenging environments.

Application Cases and Industry Value

Case 1 – Steam Turbine Monitoring System UpgradeA European power plant implemented DS200AAHAH1A modules in their steam turbine monitoring system to replace aging analog input cards. The upgrade resulted in:

2% improvement in turbine efficiency through more accurate control

40% reduction in measurement drift-related maintenance

Enhanced system stability during load changes

The plant operators particularly valued the module’s ability to maintain accuracy during seasonal temperature variations.

Case 2 – Petrochemical Plant Process ControlA Texas refinery integrated DS200AAHAH1A modules into their process control system for a critical hydrogen compression turbine. The modules provided precise measurement of process variables, enabling tighter control of reaction conditions. This led to a 3% reduction in energy consumption and improved product quality consistency.
