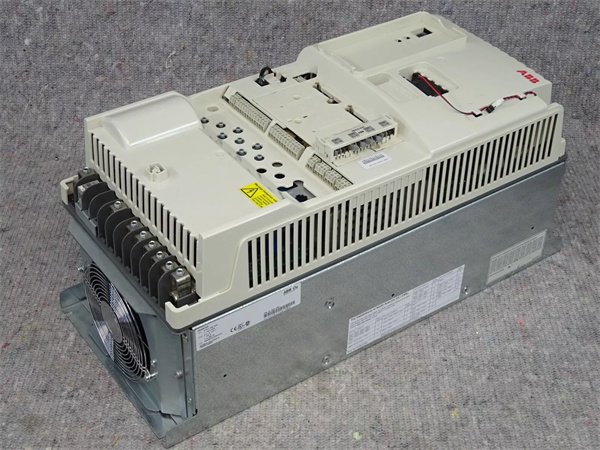

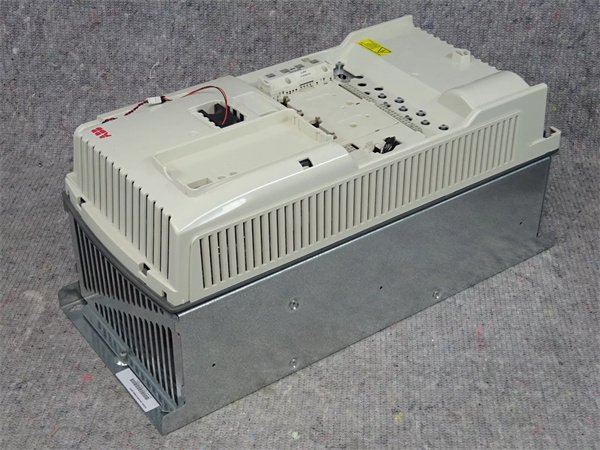

ABB ACS800-104-0006-3+N682+Q967 Industrial AC Drive System
Product Description
The ABB ACS800-104-0006-3+N682+Q967 is a complete industrial drive package from ABB’s renowned ACS800 series, combining a 6.0 kW drive module with essential accessories for immediate deployment. This configuration includes the N682 brake chopper module and Q967 EMC filter, making it particularly suitable for applications requiring rapid deceleration and clean power characteristics.
As part of ABB’s flagship ACS800 family, this drive system delivers superior motor control through advanced Direct Torque Control (DTC) technology, providing precise speed and torque regulation without needing encoder feedback. The ACS800-104-0006-3+N682+Q967 package is engineered for demanding industrial environments, offering reliable performance in applications ranging from material handling to process control.
Detailed Parameter Table
| Parameter Name | Parameter Value |
| Product Model | ABB ACS800-104-0006-3+N682+Q967 |
| Manufacturer | ABB |
| Product Category | Industrial AC Drive System |
| Power Rating | 6.0 kW (8 HP) |
| Input Voltage | 3-phase 380-480V AC (±10%) |
| Output Current | 15 A |
| Frequency Range | 0-300 Hz |
| Control Method | DTC (Direct Torque Control) |
| Protection Class | IP21 (standard) |
| Communication | Built-in Modbus RTU, optional PROFIBUS DP |
| Cooling Method | Air-cooled |
| Dimensions (W×H×D) | 225×390×220 mm |
| Weight | 12.5 kg |
| Certifications | CE, UL, cUL |
Core Advantages and Technical Highlights
Advanced motor control: The DTC technology in the ABB ACS800-104-0006-3+N682+Q967 provides ±0.1% speed control accuracy and full torque production at zero speed, outperforming conventional V/Hz drives. The dynamic torque response time of less than 5ms ensures optimal process control.
Complete braking solution: The integrated N682 brake chopper enables safe, efficient dynamic braking for applications with high inertia loads or frequent stopping requirements. This protects the drive from overvoltage conditions during deceleration.
EMC compliance: The Q967 EMC filter ensures compliance with industrial electromagnetic compatibility standards, reducing electrical noise interference with sensitive equipment nearby. This makes the ABB ACS800-104-0006-3+N682+Q967 suitable for installations with strict EMI requirements.
User-friendly features: The drive includes ABB’s intuitive control panel with multilingual support, quick start-up macros, and comprehensive diagnostic capabilities. Built-in application-specific software blocks simplify configuration for common industrial applications.
Typical Application Scenarios
The ABB ACS800-104-0006-3+N682+Q967 excels in various industrial applications:
Material handling systems: Conveyor belt drives requiring precise speed control and frequent starts/stops, where the brake chopper manages regenerative energy.
Packaging machinery: Applications needing accurate tension control and rapid speed changes, benefiting from the drive’s excellent dynamic response.
Pump and fan control: Energy-saving applications where the drive’s PID controller and pump/fan-specific software optimize process efficiency.
Machine tools: Spindle drives requiring smooth operation across wide speed ranges, with the EMC filter preventing interference with sensitive CNC equipment.
Food processing: Hygienic production lines where the drive’s reliable performance and easy cleaning design (with optional IP66 enclosure) are advantageous.
Installation Commissioning and Maintenance Instructions
Installation preparation: Ensure adequate clearance (minimum 100mm) around the ABB ACS800-104-0006-3+N682+Q967 for proper ventilation. Verify the electrical supply matches the drive’s voltage specifications. Properly ground all components according to ABB guidelines.
Commissioning steps: Start with the drive’s assisted start-up routine. Configure motor parameters using the autotuning function. Verify proper operation of the brake chopper by testing deceleration profiles. Confirm EMC performance meets installation requirements.
Maintenance suggestions: Regularly clean cooling fins and check fan operation. Monitor DC bus capacitor health through the drive’s diagnostic functions. Tighten power connections annually. Maintain log of operating hours and performance parameters for predictive maintenance.
Service and Guarantee Commitment
ABB provides a standard 3-year warranty for the ABB ACS800-104-0006-3+N682+Q967, covering manufacturing defects and component failures. Extended warranty options are available for critical applications. ABB’s global service network offers 24/7 technical support, with field service engineers available for on-site troubleshooting and repair. Software updates and firmware upgrades are available through ABB’s service portal to ensure optimal performance throughout the product lifecycle. Comprehensive documentation and training resources support proper installation and operation.
