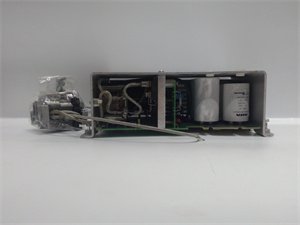

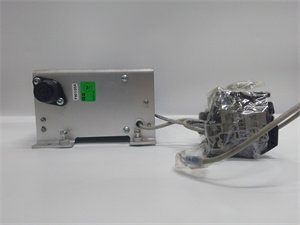

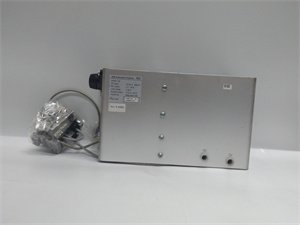

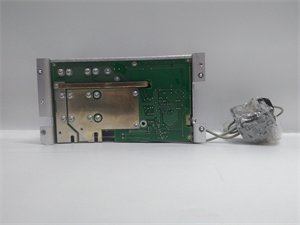

ABB DSSR122 48990001-NK Power Supply Unit

The ABB DSSR122 48990001-NK is a high-performance power supply unit designed for industrial automation systems. It provides stable and reliable DC voltage conversion from 24VDC input to a regulated 5VDC output, capable of delivering up to 40A of current. This compact unit is designed to operate efficiently in challenging environments, offering high reliability and minimal energy loss. It is an essential component for powering various electronic devices and systems in industrial settings.

Detailed Parameter Table

Core Advantages and Technical Highlights

Wide Input Voltage Range: The DSSR122 supports an input voltage range of 18-30 VDC, making it adaptable to different power supply conditions.

High Efficiency: The unit features high efficiency conversion rates, minimizing energy loss and maximizing operational performance.

Robust Design: Built with industrial-grade components, the DSSR122 is designed to withstand harsh environments, including extreme temperatures, vibrations, and humidity.

Overload and Short-Circuit Protection: The unit includes built-in protection against over-voltage and short circuits, safeguarding connected equipment from potential damage.

Compact and Lightweight: With dimensions of 238.5 mm x 162 mm x 72 mm and a weight of 2.35 kg, the DSSR122 is easy to install, even in tight spaces.

Wide Operating Temperature Range: The unit operates reliably in temperatures ranging from -20°C to +60°C, ensuring consistent performance in diverse industrial environments.

Typical Application Scenarios

The DSSR122 48990001-NK is widely used in various industrial sectors, including manufacturing, robotics, process control, and telecommunications. It powers control systems, sensors, actuators, and other critical equipment in applications such as:

• Industrial automation systems

• Robotics

• Process control systems

• Telecommunications equipment

• Transportation systems

Installation Commissioning, and Maintenance Instructions

Installation Preparation: Before installing the DSSR122 48990001-NK, ensure the designated location meets the specified temperature and humidity requirements. Mount the unit securely on a standard DIN rail or panel using the provided hardware. Use shielded cables for connections to minimize electrical interference.

Maintenance Suggestions: Perform regular visual inspections to check for dust accumulation, wear, or damage. Clean ventilation openings to ensure proper airflow and prevent overheating. Monitor diagnostic indicators for any abnormal conditions or warning messages. In harsh environments, consider implementing a scheduled maintenance program to minimize downtime.

Service and Guarantee Commitment

The DSSR122 48990001-NK is backed by ABB’s comprehensive support and quality assurance. The unit comes with a warranty that ensures protection against manufacturing defects. ABB’s global technical support network offers 24/7 assistance with guaranteed response times, ensuring minimal downtime and maximum efficiency. Each DSSR122 undergoes extensive testing to ensure reliability in industrial environments, providing customers with confidence in the product’s long-term performance.
