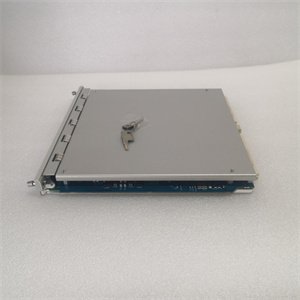

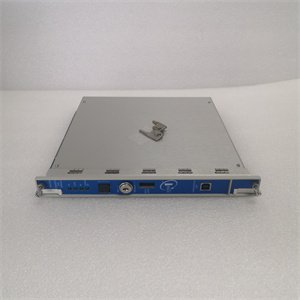

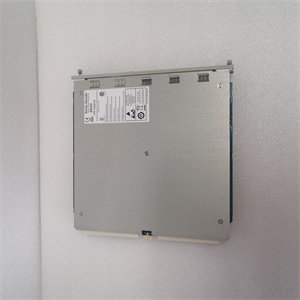

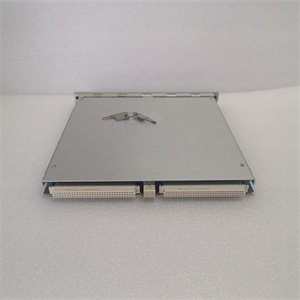

Bently Nevada 3500/22M-01-01-01 Transient Data Interface Module

The Bently 3500/22M-01-01-01 is a high-performance transient data interface module designed for the 3500 Series Machinery Protection System. It serves as a critical link between the 3500 monitoring system and compatible software such as System 1 Condition Monitoring Software, enabling real-time data collection, analysis, and remote configuration. This module supports both steady-state and high-resolution transient waveform recording, making it ideal for vibration analysis, fault detection, and predictive maintenance in rotating machinery.

Key Features:

• Combines the functions of a 3500/20 Rack Interface Module (RIM) and a communication processor (e.g., TDXNet).
• Supports 10BASE-T/100BASE-TX Ethernet and optional 100BASE-FX fiber-optic connectivity for flexible data transmission.
• Rugged design with IP67-rated housing ensures reliable operation in harsh industrial environments.

Product Parameters

Advantages and Features

1. Integrated Functionality:

   • Combines RIM and communication processor roles, reducing system complexity and costs.
   • Captures transient data with millisecond precision for detailed waveform analysis.

2. Flexible Connectivity:

   • Supports both copper and fiber-optic Ethernet for EMI-sensitive environments.
   • Enables seamless integration with System 1 Software for advanced diagnostics.

3. Reliability:

   • IP67-rated design protects against dust, moisture, and extreme temperatures.
   • LED indicators provide real-time status monitoring for system health and data transmission.

4. Scalability:

   • Stores up to 16 MB of transient data and supports up to 48 channels for comprehensive machinery analysis.

Application Areas and Use Cases

• Industries: Power generation (turbines, generators), oil and gas (compressors, pumps), manufacturing, and pulp/paper.
• Key Applications:
  • Early detection of machinery faults (e.g., bearing damage, misalignment).
  • Real-time vibration analysis and predictive maintenance.
  • Remote monitoring of rotating equipment in critical infrastructure.

Case Study:

A petrochemical plant in the Middle East reduced downtime by 30% using the Bently 3500/22M-01-01-01 to monitor centrifugal pumps. The module’s transient data analysis identified cavitation issues before they escalated, preventing costly repairs.

Competitive Comparison

Compared to legacy communication processors, the 3500/22M-01-01-01 offers:

• Higher Integration: Eliminates external components, reducing installation space and complexity.
• Improved Data Resolution: Supports high-speed transient recording up to 20 kHz for detailed waveform analysis.
• Cost Efficiency: Combines multiple functions into a single module, lowering procurement and maintenance costs.

Selection Recommendations

• Functionality: Choose -01-01-01 for standard Ethernet connectivity. Opt for fiber-optic variants (e.g., -01-02-01) for EMI-sensitive environments.
• Compatibility: Ensure compatibility with your 3500 rack configuration and software (e.g., System 1).
• Budget: Consider bulk discounts for large-scale deployments.

Precautions

1. Installation:

   • Mount in slot 1 of the 3500 rack, adjacent to power supplies.
   • Use a 2-pin connector for SignalCommand integration and proper grounding.

2. Maintenance:

   • Regularly update firmware to access new features and bug fixes.
   • Monitor LED indicators for system status and data transmission errors.

3. Safety:

   • Disconnect power before replacing the module to avoid electrical hazards.
