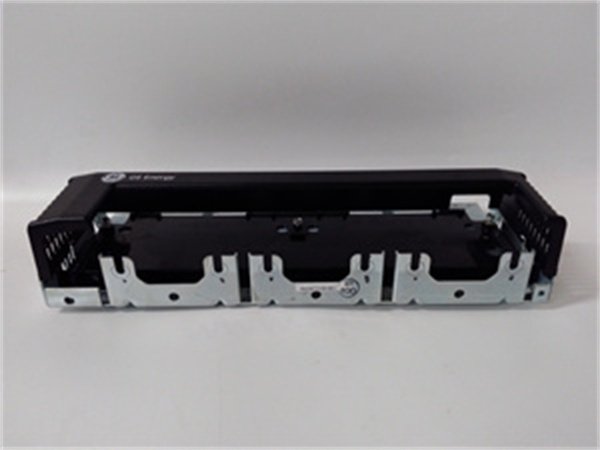

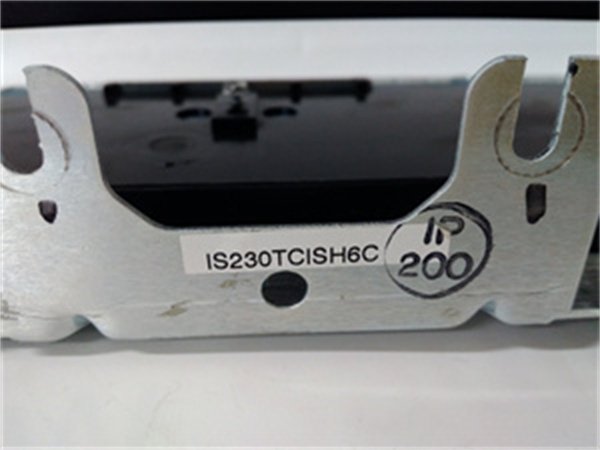

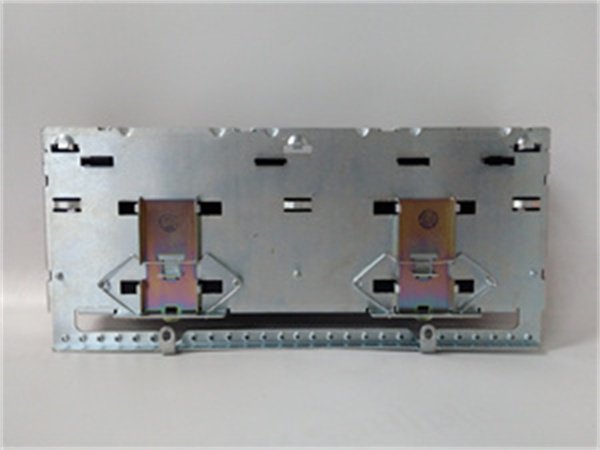

General Electric IS230TCISH6C Industrial Ethernet Communication Interface Module

The GE IS230TCISH6C is a high–performance industrial Ethernet communication interface module under GE’s Mark VIe control system series, specifically designed to enable seamless data exchange between Mark VIe I/O modules/controllers and upper–level industrial networks. As a core connectivity component in automation systems, it serves as the bridge between distributed control units and supervisory systems (such as SCADA, MES), supporting multiple mainstream industrial Ethernet protocols to ensure compatible and efficient data transmission in complex industrial environments.

In modern industrial digitization scenarios, the GE IS230TCISH6C plays a vital role in breaking down “information silos” between different system layers. Its dual–gigabit Ethernet ports support network redundancy, ensuring uninterrupted communication even in case of a single network failure. By providing real–time data transmission with low latency, the GE IS230TCISH6C enables remote monitoring, centralized control, and data analytics of automation systems, laying a solid foundation for industrial internet of things (IIoT) applications.

Detailed Parameter Table

Core advantages and technical highlights

Multi–Protocol Compatibility: The GE IS230TCISH6C supports three mainstream industrial Ethernet protocols—Ethernet/IP, Modbus TCP, and PROFINET. This multi–protocol capability allows it to seamlessly integrate with different brand devices and systems, such as Allen–Bradley PLCs, Siemens SCADA, and third–party MES platforms. Users can switch between protocols via software configuration without changing hardware, greatly enhancing the flexibility and scalability of the automation system.

High–Speed and Redundant Communication: Equipped with 2 x 10/100/1000 Mbps Ethernet ports, the GE IS230TCISH6C achieves data transfer rates up to 1 Gbps, ensuring real–time transmission of large–volume process data. The ports support network redundancy modes such as ring topology and dual–path backup, which can automatically switch to the standby network within milliseconds when the primary network fails, minimizing communication interruptions and improving the reliability of the entire control system.

Robust Isolation and Anti–Interference: With a 2kVrms isolation rating between Ethernet ports and the backplane, the GE IS230TCISH6C effectively suppresses electrical noise, ground loops, and voltage transients common in industrial sites. Its built–in surge protection (IEC 61000–4–5) and electromagnetic compatibility (EMC) design enable stable operation in harsh environments with strong electromagnetic interference, such as power plant switchyards and steel mills.

Easy Integration and Configuration: The GE IS230TCISH6C is fully compatible with the Mark VIe chassis, supporting hot–swapping for quick module replacement without shutting down the system. It can be configured via GE’s Proficy Machine Edition software, which provides an intuitive graphical interface for protocol setting, IP address assignment, and data mapping. The module also supports auto–discovery by upper–level systems, simplifying the commissioning process and reducing setup time.

Typical application scenarios

In coal–fired power plants, the GE IS230TCISH6C is deployed in the Mark VIe turbine control system to connect the local I/O modules with the central SCADA system. It transmits real–time turbine parameters (such as speed, pressure, and temperature) via Ethernet/IP to the SCADA platform, enabling operators to monitor turbine operation remotely. The dual–port redundancy ensures that communication is not interrupted even if one Ethernet cable is damaged, preventing production losses caused by communication failures.

In automotive manufacturing plants, the GE IS230TCISH6C is used to connect Mark VIe I/O modules on the production line with the MES system via PROFINET. It sends production data (such as equipment status, production count, and defect rate) to the MES platform for data analytics and production scheduling. Meanwhile, it receives control commands from the MES system to adjust the production line speed or switch production models, realizing the integration of production execution and process control. Its anti–interference capability ensures stable communication in the factory environment with a large number of frequency converters and motors.

Installation, commissioning and maintenance instructions

Installation preparation: Before installing the GE IS230TCISH6C, ensure the Mark VIe chassis is powered off. Check that the chassis slot is compatible with the module (Mark VIe standard slot). Required tools include a Phillips screwdriver and ESD wristband. Clean the module and chassis slot to remove dust. Align the module with the chassis guide rails and insert it firmly until it clicks into place, then fasten the front panel screws. Use CAT5e or higher–grade shielded Ethernet cables to connect the module’s ports to the network switch; ensure the cable length does not exceed 100 meters. Configure the module’s IP address via Proficy Machine Edition software before powering on the system.

Maintenance suggestions: Perform monthly visual inspections of the GE IS230TCISH6C to check the status of the Ethernet port LEDs (link/activity indicators) and ensure no loose connections. Use a network tester quarterly to verify Ethernet port communication performance. Clean the module’s ventilation holes and chassis slot with compressed air (max pressure 0.5MPa) every six months to prevent dust accumulation. If communication failures occur, first check the Ethernet cable and switch, then use the module’s built–in diagnostic function via Proficy Machine Edition to locate faults. Replace the module with a genuine GE spare part if it is damaged, and ensure the new module’s firmware version is consistent with the system.
