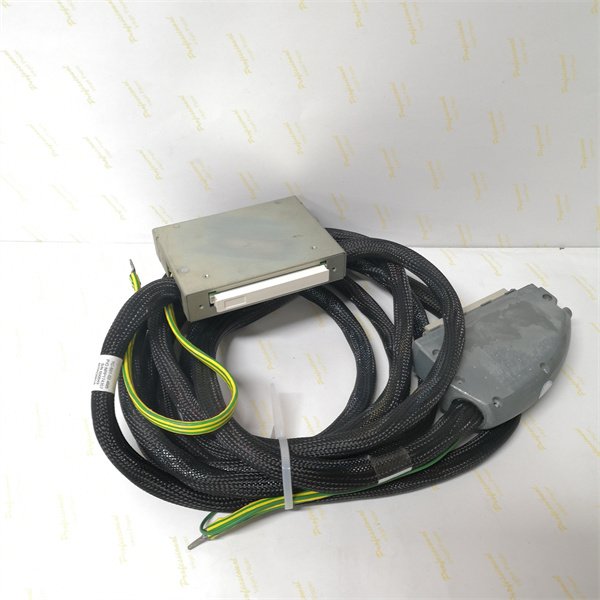

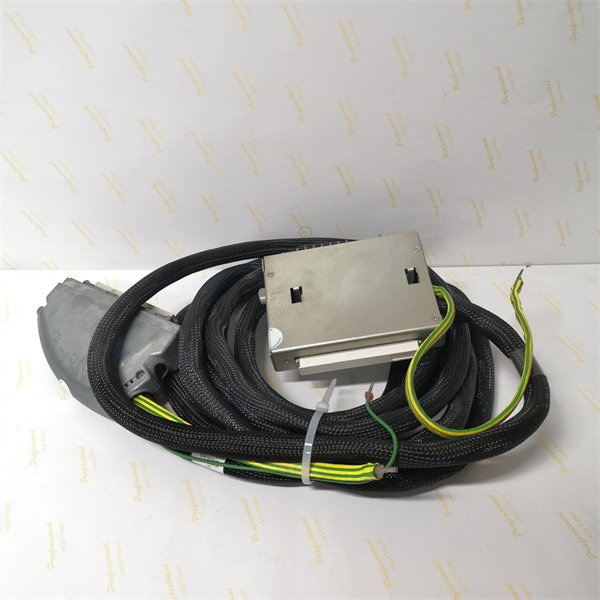

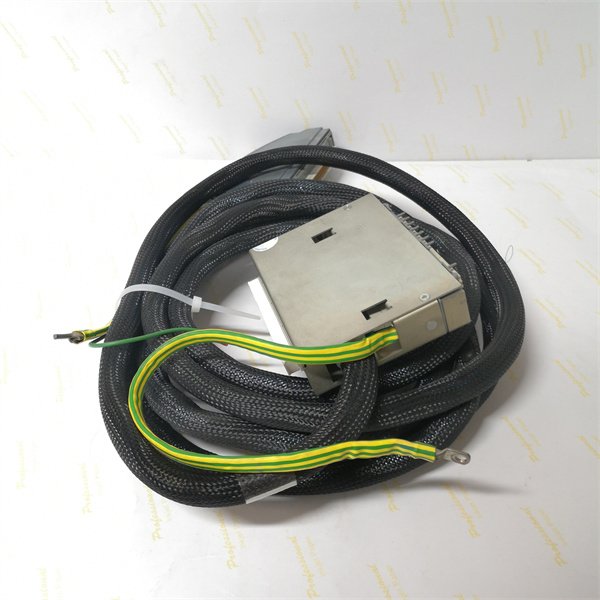

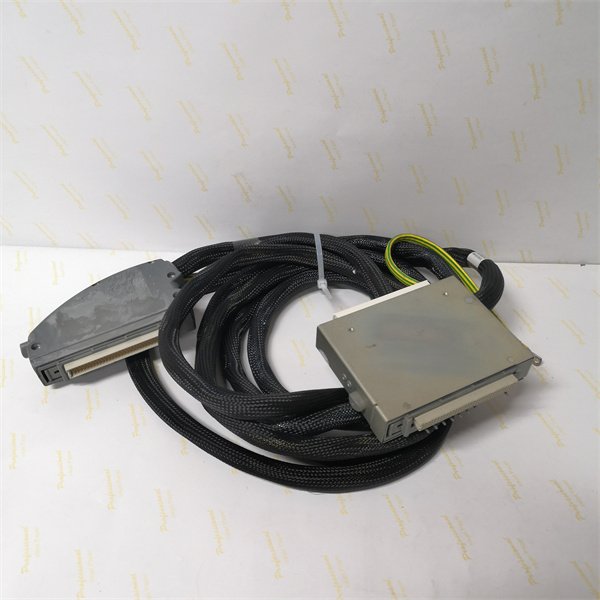

ICS Triplex Rockwell TC-501-02-4M5 Industrial Control Module

The ICS Triplex TC-801-02-4M5 is a high-performance digital input/output module specifically designed for industrial automation applications. It offers reliable and precise control solutions, making it suitable for a wide range of industries including oil & gas, chemical, power generation, and manufacturing. This module is part of the ICS Triplex product line, known for its robustness and advanced control capabilities. The TC-801-02-4M5 features a triple redundant architecture (TMR) to ensure high availability and fault tolerance, even in critical applications. Its modular design allows for easy integration and expansion, supporting multiple communication protocols and interface standards.

Detailed Parameter Table

Core Advantages and Technical Highlights

High Reliability and Fault Tolerance

The ICS Triplex TC-801-02-4M5 employs a triple modular redundancy (TMR) architecture, ensuring high availability and fault tolerance. Each output channel consists of three safety function switch channels, allowing the system to continue operating normally even if one channel fails.

Advanced Communication Capabilities

This module supports multiple communication protocols, including Ethernet Modbus TCP/IP, enabling seamless integration with various industrial systems. It features 2 Ethernet ports and 2 serial ports, providing flexible connectivity options.

Robust Design for Harsh Environments

Built to withstand extreme temperatures, impacts, and vibrations, the ICS Triplex TC-801-02-4M5 is designed for long-term reliability in demanding industrial environments. It operates within a wide temperature range of -40°C to +70°C.

User-Friendly and Customizable

The module supports multiple programming languages, such as ladder diagrams and functional block diagrams, and is compatible with third-party software applications. Users can customize cable length and insulation type according to their needs. Additionally, it provides comprehensive fault diagnosis and remote maintenance functions, reducing maintenance costs and time.

Typical Application Scenarios

The ICS Triplex TC-801-02-4M5 is widely used across various industries due to its versatility and reliability. In the oil & gas sector, it ensures reliable operation in harsh environments, monitoring and controlling critical processes. In chemical and power generation industries, its high safety level (SIL 3) makes it suitable for applications in hazardous areas. Additionally, it is used in large building control systems, providing flexible and reliable digital signal processing.

Installation, Commissioning and Maintenance Instructions

Installation Preparation

Before installing the ICS Triplex TC-801-02-4M5, ensure the environment is free from excessive dust and moisture to maintain optimal performance. Verify that the power supply matches the module’s requirements (24 V DC) and that the operating temperature range (-40°C to +70°C) is suitable for the installation location. Follow the user manual for detailed installation instructions and ensure all connections are secure.

Maintenance Suggestions

Regular maintenance is crucial for extending the lifespan of the ICS Triplex TC-801-02-4M5. Perform routine inspections to check for loose connections or signs of wear. Clean the module periodically to prevent dust buildup and monitor its operation to detect any potential issues early. Replace any worn parts promptly to maintain performance, and ensure that spare parts are readily available to minimize downtime.

Service and Guarantee Commitment

The ICS Triplex TC-801-02-4M5 is backed by a comprehensive warranty, ensuring customer satisfaction and peace of mind. Our company is committed to providing exceptional after-sales service, with a dedicated technical support team available to assist with any issues or inquiries. We stand behind the quality of our products and are dedicated to ensuring reliable performance and timely support for our customers.
