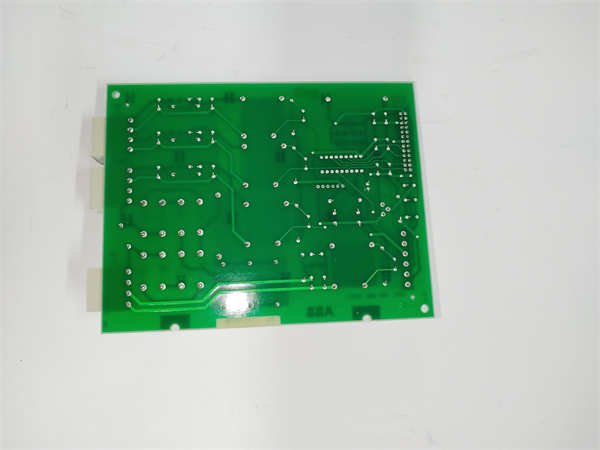

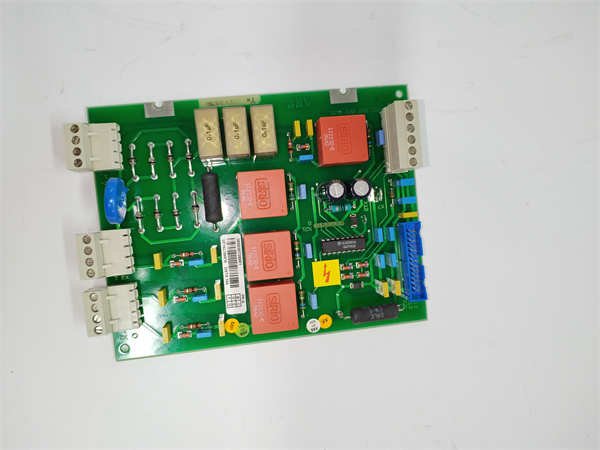

ABB DSTS104 3BSE007285R1 Trigger Pulse Amplifier Card

The ABB DSTS104 3BSE007285R1 is a high-performance trigger pulse amplifier card designed for industrial automation systems. It is part of the ABB Advant Controller 110/160 series and is used to amplify trigger pulses for various control applications. The card operates on a rated voltage of 24V DC and features an output current of up to 3A. It is designed to work reliably in a wide temperature range of -40°C to +70°C, making it suitable for harsh industrial environments.

Detailed Parameter Table

Core Advantages and Technical Highlights

High-Performance Amplification: The DSTS104 is designed to efficiently amplify trigger pulses, ensuring precise and reliable control in automation systems.

Wide Operating Temperature Range: The card can operate reliably in temperatures ranging from -40°C to +70°C, making it suitable for diverse industrial environments.

Compact Design: With dimensions of 198 mm x 130.5 mm x 31.5 mm and a weight of 0.22 kg, the DSTS104 is compact and lightweight, making it easy to install in space-constrained control cabinets.

Robust Construction: The card features IP20 protection, ensuring resistance to dust and water ingress, and is built with high-quality components for long-term reliability.

Communication Interface: The DSTS104 supports Ethernet communication, enabling seamless integration with modern industrial control systems.

Typical Application Scenarios

The DSTS104 3BSE007285R1 is widely used in various industrial sectors, including manufacturing, power generation, and process control. It is ideal for applications requiring precise control and amplification of trigger pulses, such as:

• Industrial automation systems

• Power generation plants

• Process control systems

• Renewable energy systems

Installation Commissioning, and Maintenance Instructions

Installation Preparation: Before installing the DSTS104 3BSE007285R1, ensure the designated location meets the specified temperature and humidity requirements. Mount the card securely on a standard DIN rail using the provided hardware. Use shielded cables for connections to minimize electrical interference.

Maintenance Suggestions: Perform regular visual inspections to check for dust accumulation, wear, or damage. Clean ventilation openings to ensure proper airflow and prevent overheating. Monitor diagnostic indicators for any abnormal conditions or warning messages.

Service and Guarantee Commitment

The DSTS104 3BSE007285R1 is backed by ABB’s comprehensive support and quality assurance. The card comes with a warranty that ensures protection against manufacturing defects. ABB’s global technical support network offers 24/7 assistance with guaranteed response times, ensuring minimal downtime and maximum efficiency.
