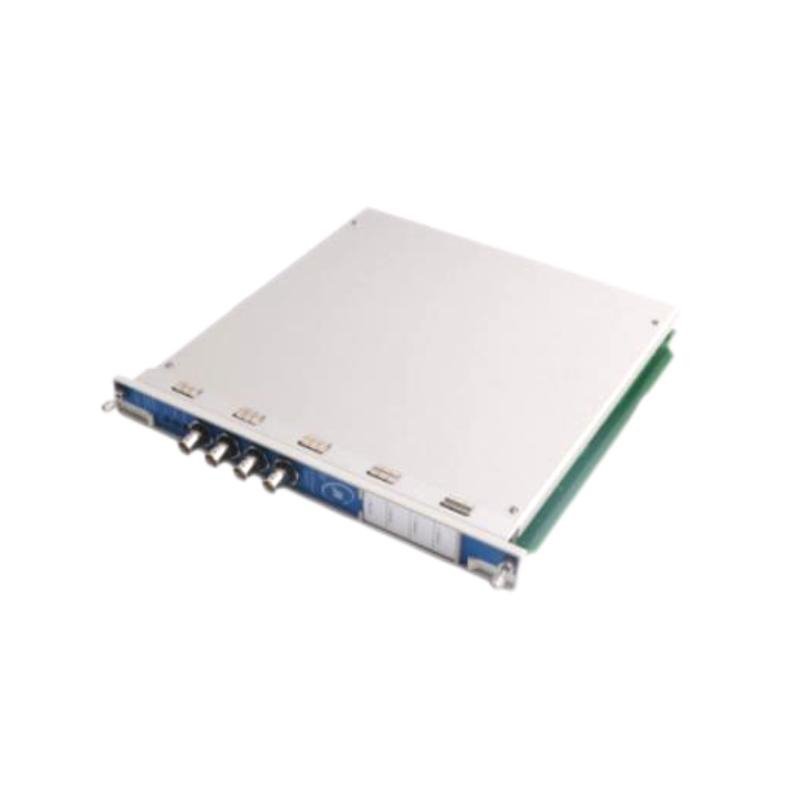

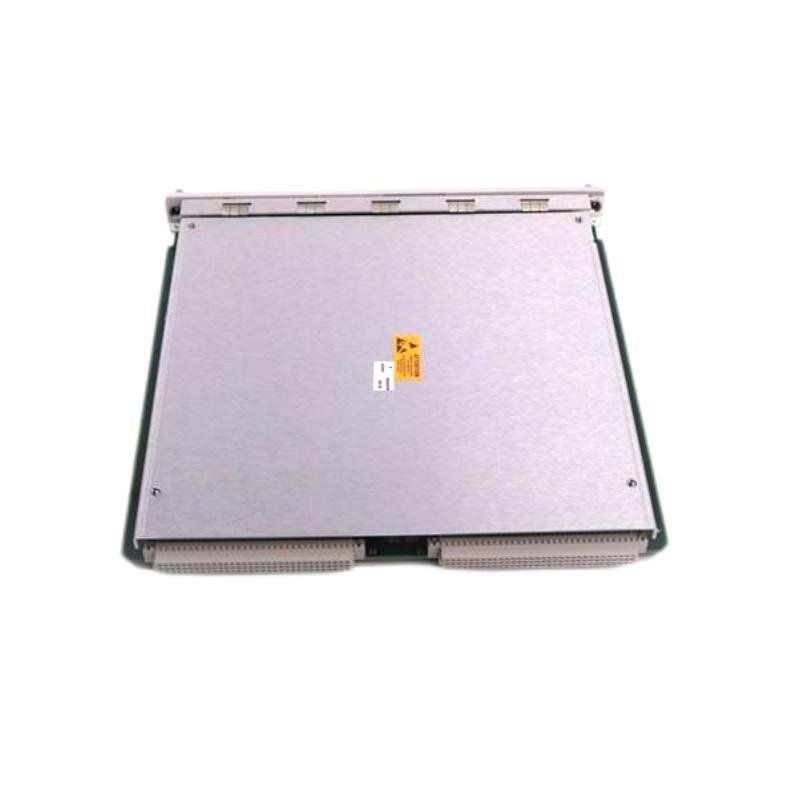

Bently Nevada 3500/60 163179-01 monitoring module
Manufacturer: Bently Nevada
Product Number: 3500/60 (163179-01)
Category: Speed and Phase Monitoring Module
Series: 3500 Machinery Protection System
Application: Critical rotating machinery protection requiring precise shaft speed measurement and phase reference
Product Description
The Bently Nevada 3500/60 (163179-01) is a high-performance speed and phase monitoring module designed for critical rotating machinery protection. As part of the 3500 Machinery Protection System, it provides precise shaft speed measurement, phase reference, and once-per-revolution signals to support vibration monitoring and machinery protection. The module interfaces with keyphasor or proximity probes, delivering reliable data for early detection of abnormal conditions and integration with industrial control systems.
Main Features
-
High-accuracy speed and phase monitoring for rotating machinery
-
Compatible with keyphasor and proximity probes
-
Provides once-per-revolution (1X) signal outputs for synchronization with vibration monitoring devices
-
Buffered analog and digital outputs for diagnostics and integration
-
Hot-swappable design to minimize downtime during maintenance
-
Integration with 3500 rack systems for centralized monitoring and alarm management
Technical Specifications
Dimensions and Weight
| Item | Specification |
|---|---|
| Dimensions | 241.3 × 24.4 × 241.8 mm |
| Weight | 0.91 kg |
General Information
| Item | Specification |
|---|---|
| Manufacturer | Bently Nevada (GE) |
| Model Number | 3500/60 (163179-01) |
| Product Type | Speed/Phase Monitor |
| System | 3500 Machinery Protection System |
| Mounting | 3500 rack installation |
Electrical Characteristics
| Item | Specification |
|---|---|
| Input Channels | 2 (Keyphasor/proximity) |
| Supported Inputs | Keyphasor probe, proximity probe |
| Frequency Range | 0–100 kHz |
| Signal Outputs | 1X pulse, buffered analog output |
| Alarm Functions | Loss-of-phase, loss-of-speed detection |
| Power Supply | Supplied via 3500 rack backplane |
Environmental Specifications
| Item | Specification |
|---|---|
| Operating Temp. | -30°C to +65°C |
| Storage Temp. | -40°C to +85°C |
| Humidity | 0–95% RH, non-condensing |
| Vibration | 5–500 Hz, 1.5 g |
| Shock | 15 g, 11 ms half-sine |
Industry Applications
The Bently Nevada 3500/60 (163179-01) is widely used in:
-
Oil & Gas–Monitoring turbine, compressor, and pump speed
-
Power Generation–Generator and turbine speed and phase monitoring
-
Chemical & Petrochemical–Critical rotating equipment protection
-
Metals & Mining–Continuous monitoring of high-speed machinery
-
Industrial Manufacturing–Early fault detection for motors and drives
