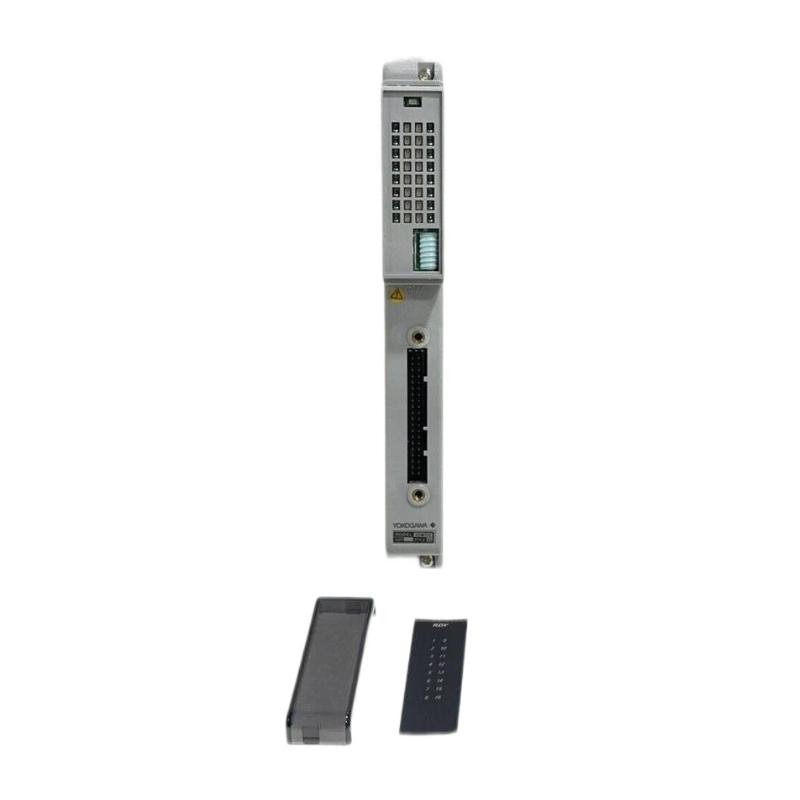

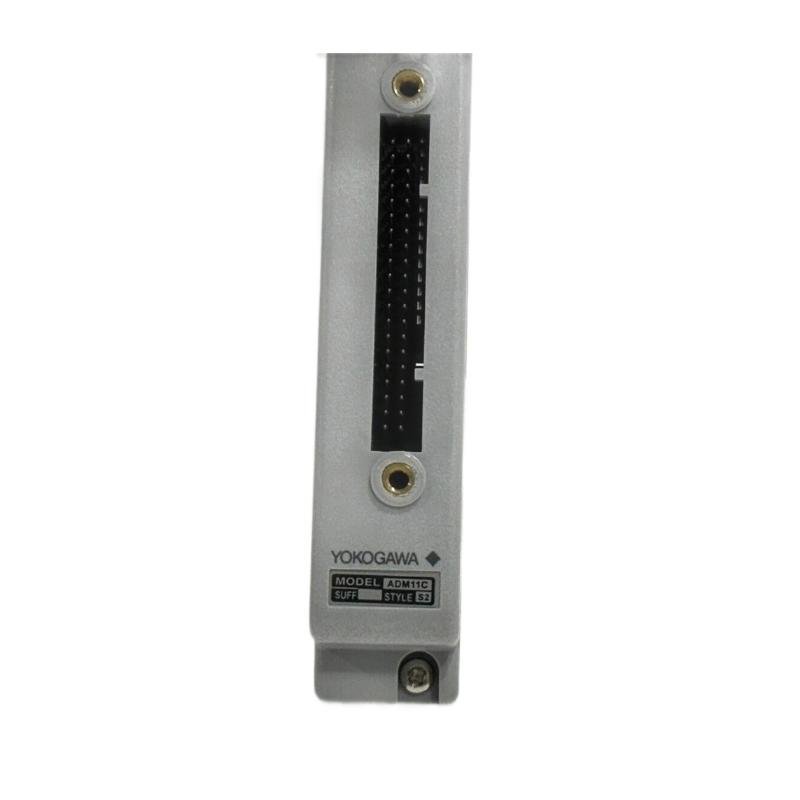

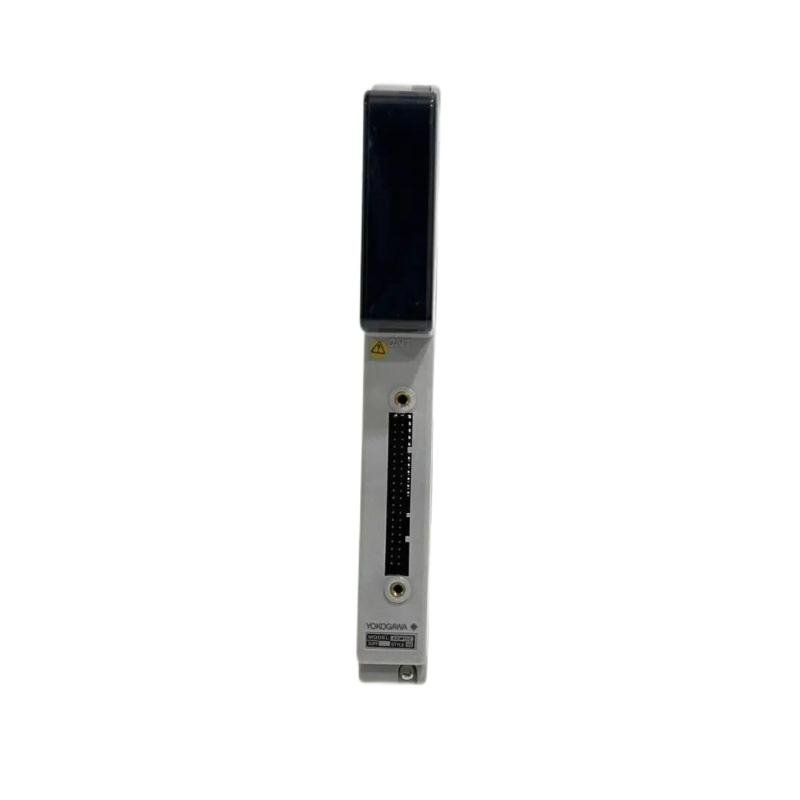

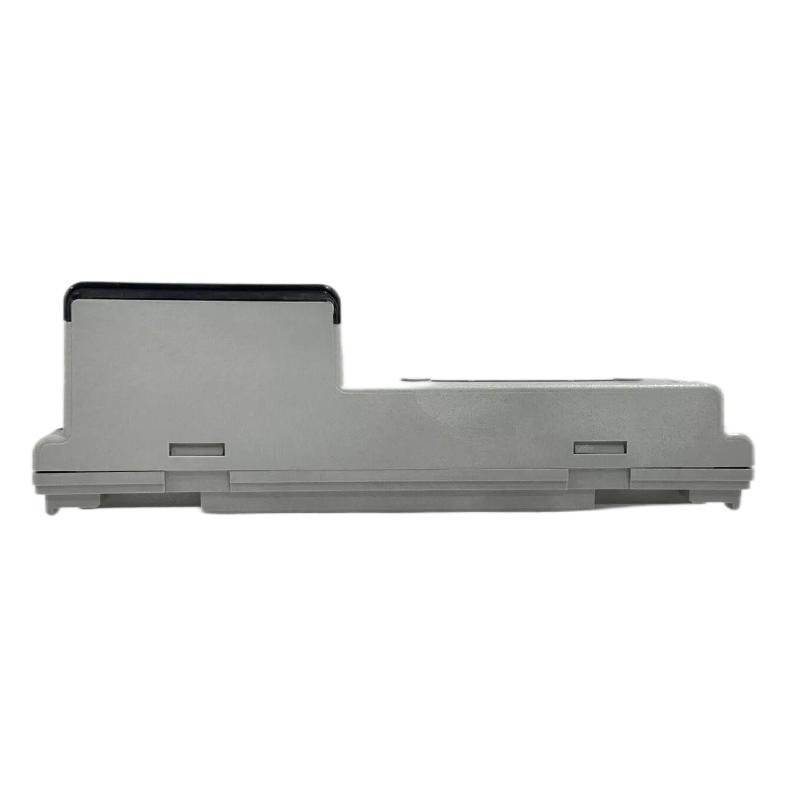

Yokogawa ADM11C Contact Input Module
Manufacturer: Yokogawa
Product Number: ADM11C
Category: Contact Input Module
System Compatibility: Yokogawa industrial automation and control systems
Application: Interfacing digital contact signals from field devices providing reliable monitoring of switch closures, relays, and other contact devices
Product Description
The Yokogawa ADM11C Contact Input Module is designed to interface digital contact signals from field devices into industrial automation and control systems. It provides reliable and precise monitoring of switch closures, relays, and other contact-based signals. The module is widely used in applications where contact-based devices, such as limit switches, push buttons, and emergency stops, need to be monitored for system status or triggering specific actions.
Key Features
-
Digital Contact Inputs: Supports multiple contact inputs for monitoring devices like switches, relays, and alarm contacts.
-
High-Speed Signal Detection: Ensures fast response times for reliable contact signal processing.
-
Wide Voltage Range: Compatible with a wide range of input voltages, making it flexible for different industrial applications.
-
Built-In Diagnostics: Features self-diagnostic capabilities to ensure module health and detect issues such as wiring faults.
-
Compact and Space-Efficient: Small form factor ideal for integration into tight control panel spaces.
-
Industrial-Grade Durability: Built to operate reliably in harsh industrial environments, ensuring long-term performance.
Technical Specifications
Dimensions and Weight
| Item | Specification |
|---|---|
| Dimensions | 120 x 30 x 40mm |
| Weight | 0.41 kg |
Module Information
| Item | Specification |
|---|---|
| Model Number | ADM11C |
| Module Type | Contact Input Module |
| Input Channels | 8 channels (for contact inputs) |
| Input Type | Contact Closure (Dry Contact) |
Electrical and Physical Characteristics
| Item | Specification |
|---|---|
| Input Voltage | 12–24 V DC |
| Power Consumption | < 4 W |
| Operating Temp | -10°C to +60°C |
| Storage Temp | -40°C to +85°C |
| Humidity | 5% to 95% RH, non-condensing |
| Protection Class | IP20 |
System Compatibility
| Item | Specification |
|---|---|
| Compatible System | Yokogawa CENTUM, STARDOM, etc. |
| Communication Protocol | Standard Yokogawa I/O Protocol |
| Software Configuration | Yokogawa Engineering Tools |
Industry Applications
-
Industrial Automation: Used for monitoring contact-based sensors like limit switches, emergency stops, and push buttons in control systems.
-
Safety Systems: Ideal for safety-related applications where contact signals trigger alarms or shutdowns in critical systems.
-
Process Control: Provides reliable contact signal monitoring for process systems, machinery, and alarms.
-
Building Management Systems: Used for monitoring inputs from devices such as door switches, fire alarms, and security systems.
-
Energy Management: Helps in controlling energy systems and detecting faults based on contact closure signals.
The Yokogawa ADM11C Contact Input Module is an essential component for applications that require reliable monitoring of contact-based inputs. With its robust diagnostic features, flexible voltage compatibility, and compact design, it is a dependable solution for industrial automation and safety systems.
