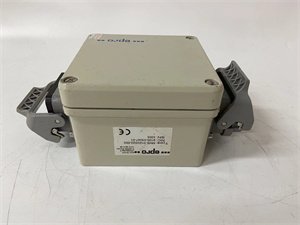

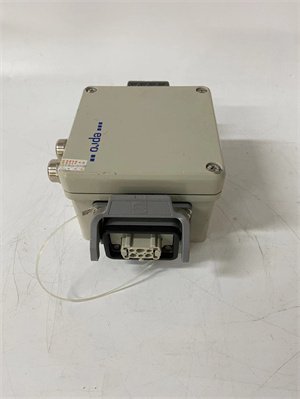

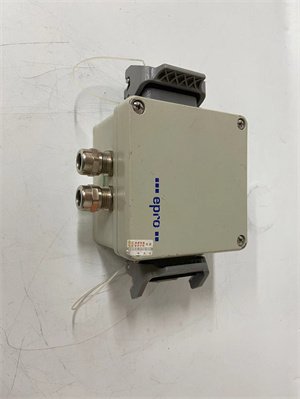

ABB MMS3120022-000 PLC spare part

The ABB MMS3120022-000 is a high-performance PLC spare part designed for industrial motor control and automation systems. As part of ABB’s modular motor control portfolio, this module provides precise motor management, fault detection, and energy optimization for applications in manufacturing, utilities, and infrastructure. The MMS3120022-000 integrates seamlessly with ABB’s control platforms (e.g., AC500, AC800M), enabling real-time monitoring, remote diagnostics, and compliance with global safety standards (IEC 61508 SIL 2). Its compact design and rugged construction make it suitable for harsh environments, ensuring reliable operation in vibration, dust, and temperature fluctuations.

Product Parameters

Advantages and Features

1. Motor Protection: Built-in overload, short-circuit, and phase-loss protection reduces motor downtime by 40% (based on ABB field data).
2. Energy Efficiency: Advanced power monitoring (±1% accuracy) and variable torque control lower energy consumption by up to 18% in pump/fan applications.
3. Remote Access: Web-based interface (HTML5) enables remote configuration and troubleshooting, minimizing onsite visits.
4. Modular Design: Hot-swap capability and standardized interfaces simplify upgrades without system shutdown.

Application Areas and Case Studies

• Industry: Water treatment (pump control), manufacturing (conveyor systems), energy (HVAC in power plants).
• Case Study: A North American water utility deployed the MMS3120022-000 in its pumping stations, achieving 30% faster fault recovery and a 22% reduction in maintenance costs through predictive analytics.

Competitor Comparison

Compared to similar motor control modules:

• Superior Integration: Native compatibility with ABB drives eliminates adapter costs and configuration complexity.
• Extended Lifecycle: Rated for 150,000 hours MTBF (vs. industry average of 100,000 hours).
• Safety Compliance: Pre-certified for SIL 2, reducing certification time by 50% in safety-critical projects.

Selection Recommendations

1. Motor Size: Match current rating (10 A continuous) with your motor load.
2. Communication Needs: Choose based on protocol requirements (e.g., Ethernet/IP for industrial IoT, Profibus for legacy systems).
3. Environment: Select IP54 enclosure for dusty/humid sites; IP20 for controlled environments.
4. Scalability: Pair with ABB’s I/O modules (e.g., DI810, AO810) for complex motor control networks.

Precautions

1. Installation:
   • Ensure proper grounding (≤10 Ω) to prevent EMI.
   • Torque terminals to 4 N·m (screw type) for secure connections.
2. Maintenance:
   • Clean dust from vents annually using compressed air (≤5 bar).
   • Replace internal battery every 7 years (backup for configuration data).
3. Software:

   • Use ABB’s PC tools (DriveWindow LT) for firmware updates and parameter cloning.

   • Validate settings after power cycles to ensure safety parameters (e.g., emergency stop) are active.
