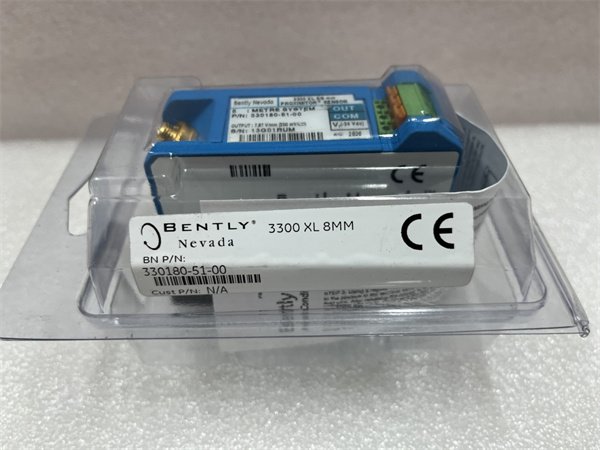

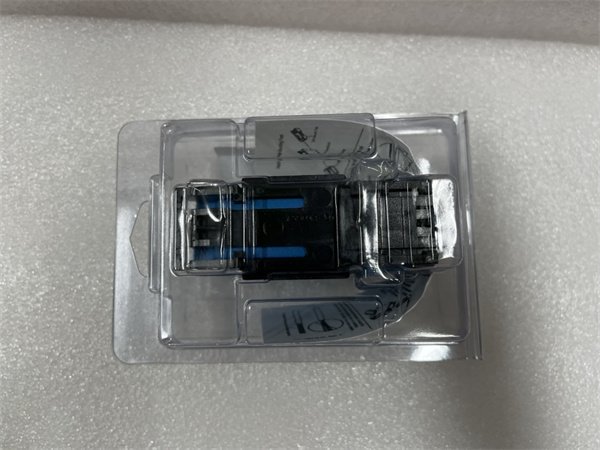

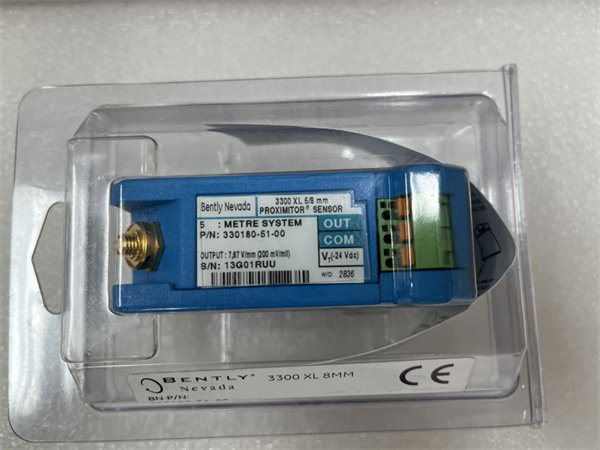

Bently Nevada 330180-51-00 8 mm Proximitor® sensor
Manufacturer: Bently Nevada
Product Number: 330180-51-00
Category: 8 mm Proximitor Sensor
Series: 3300 XL Series
Application: Non-contact eddy current vibration and displacement monitoring of rotating machinery
Function: Converts distance measurements into proportional voltage signals for monitoring systems
Product Description
The Bently Nevada 330180-51-00 is an 8 mm Proximitor® sensor designed for non-contact eddy current vibration and displacement monitoring of rotating machinery. As part of the 3300 XL Series, this sensor converts distance measurements into proportional analog signals, enabling real-time condition assessment of shafts, bearings, and machinery components. It supports dynamic vibration analysis, static position monitoring, and speed measurements, making it ideal for critical applications in oil & gas, power generation, and manufacturing.
Product Parameters
| Parameter | Specification |
|---|---|
| Measurement Type | Vibration, displacement, shaft speed |
| Probe Diameter | 8 mm (0.315 inches) |
| Linear Range | 0.51–9.53 mm (0.020–0.375 inches) |
| Output Signal | 4–20 mA analog |
| Power Supply | 18–36 VDC (via Proximitor system) |
| Temperature Range | -40°C to +121°C (-40°F to +250°F) |
| RFI/EMI Immunity | High resistance without shielded conduit |
| Mounting Options | DIN rail or panel mount |
| Dimensions | 8.13 cm × 6.12 cm × 6.35 cm |
| Weight | 0.25 kg |
Advantages and Features
- Non-Contact Design: Eliminates mechanical wear and ensures long-term reliability.
- API 670 Compliance: Meets American Petroleum Institute standards for accuracy and stability.
- Interchangeability: Probe, extension cable, and sensor components are fully interchangeable without recalibration.
- Harsh Environment Tolerance: Operates in extreme temperatures and high-vibration settings.
- Space-Saving DIN Mount: Simplifies installation in compact control panels.
Application Areas and Cases
- Oil & Gas: Monitoring compressor shaft alignment in offshore platforms.
- Power Generation: Detecting turbine bearing wear in thermal power plants.
- Manufacturing: Tracking conveyor belt pulley vibrations in steel mills.
- Case Study: A Middle Eastern petrochemical plant reduced maintenance costs by 30% using the 330180-51-00 to predict pump seal failures.
Competitor Comparison
- Higher Accuracy: ±0.1% linearity compared to industry-standard ±0.5%.
- Extended Compatibility: Works with Bently 3300/3500 systems and third-party controllers.
- Cost-Effective Installation: Reduces labor costs with plug-and-play DIN rail mounting.
Selection Recommendations
- Probe Size: Choose 8 mm for standard applications; use 5 mm probes for confined spaces.
- Temperature Requirements: Opt for ETR (Extended Temperature Range) models for -55°C to +177°C environments.
- Safety Compliance: Verify ATEX/IECEx certifications for hazardous zones.
Precautions
- Cable Shielding: Use twisted-pair, shielded cables to prevent signal interference.
- Gap Setting: Maintain 1.5–2 mm probe-to-target gap for optimal performance.
- Calibration: Perform annual checks using Bently’s 3500 System Software.
