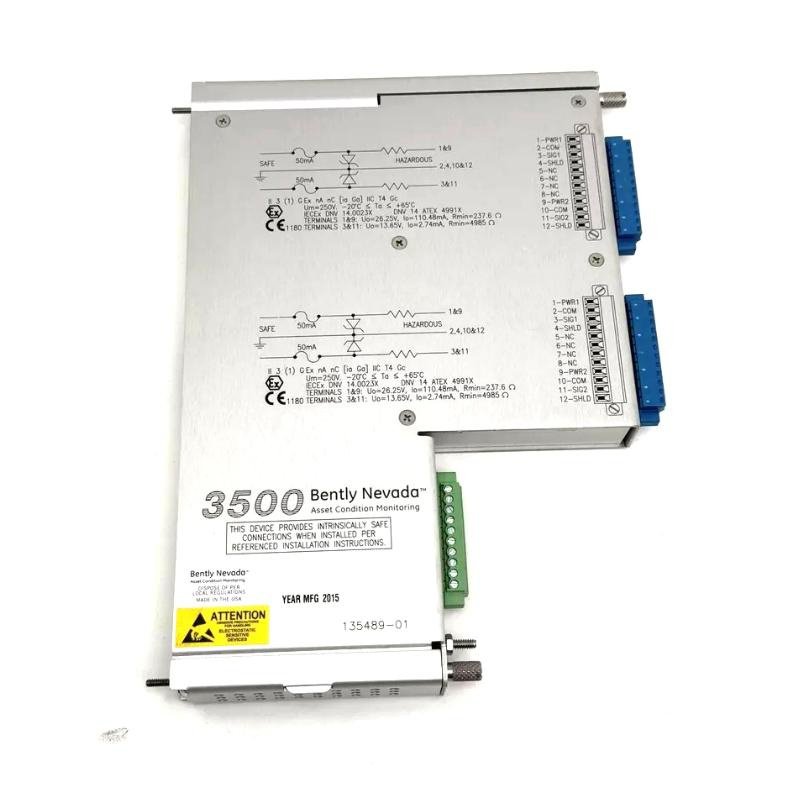

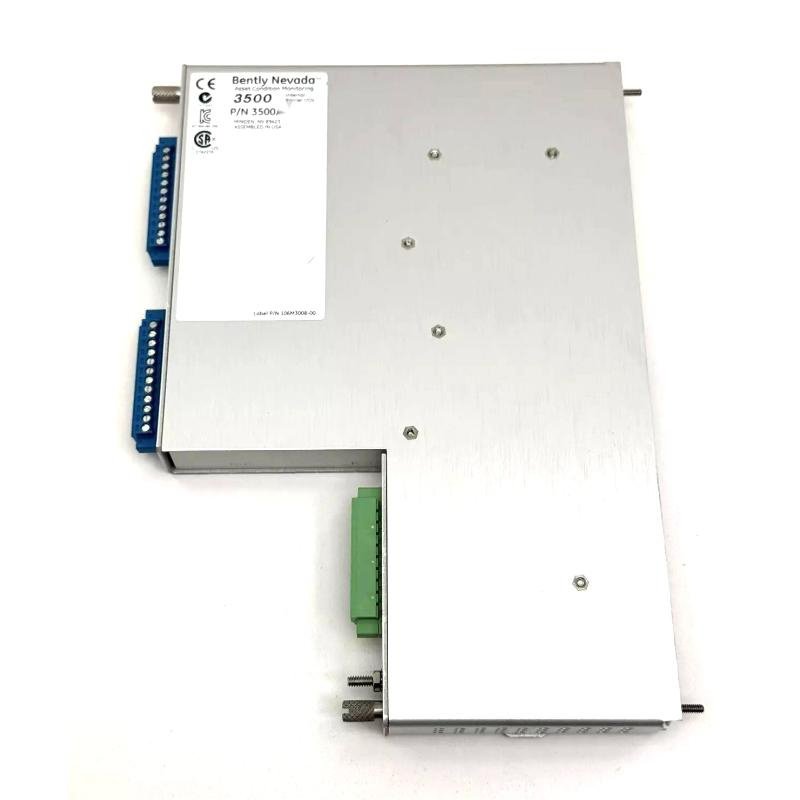

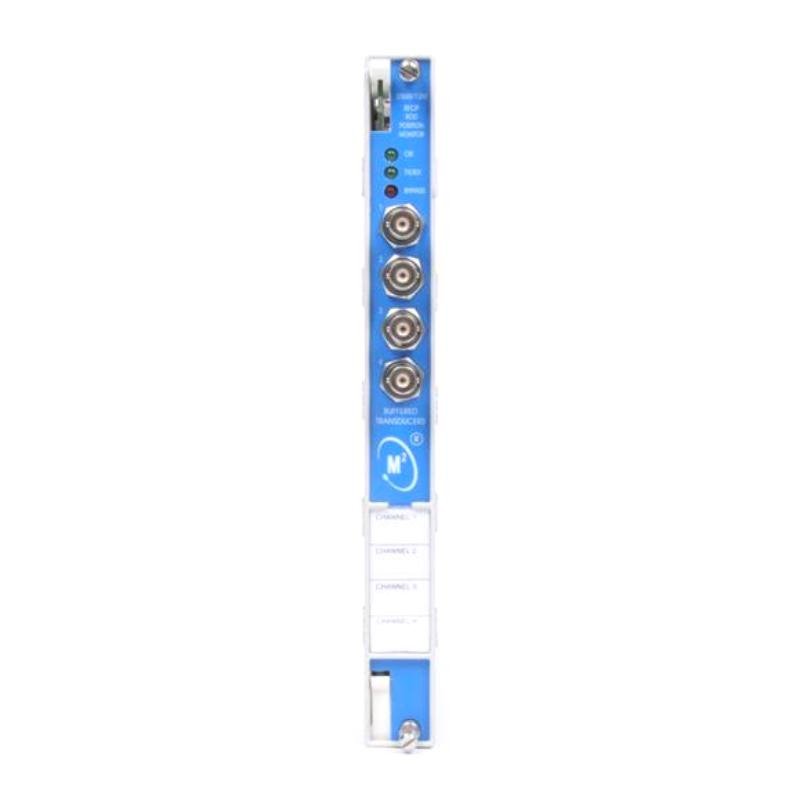

Bently Nevada 3500/72 176449-08+135489-01 Industrial Monitoring Module
Manufacturer: Bently Nevada
Product Number: 3500/72 (176449-08 + 135489-01)
Category: Reciprocating Compressor Impact / Velocity Monitor Module
Series: Bently Nevada 3500 Machinery Protection System
Application: Continuous machinery protection and condition monitoring for reciprocating compressors
Product Description
The Bently Nevada 3500/72 (176449-08 + 135489-01) is a Reciprocating Compressor Impact / Velocity Monitor Module designed for use in the Bently Nevada 3500 Machinery Protection System.
It provides continuous machinery protection and condition monitoring functions, specifically for reciprocating compressors, where it measures impact, frame velocity, and acceleration to detect early signs of mechanical degradation.
This module helps identify issues such as looseness, valve failure, piston slap, and structural vibration. By providing two levels of alarms (Alert and Danger), it enables predictive maintenance and automatic shutdown protection in compliance with API 670 standards.
The 3500/72 system consists of the monitor module (176449-08) and the associated I/O module (135489-01), working together to provide real-time monitoring and signal processing.
Key Features
-
Monitors up to four independent channels for velocity and impact.
-
Designed specifically for reciprocating compressor monitoring.
-
Detects mechanical looseness, impact events, and frame vibration.
-
Provides two alarm levels per channel (Alert and Danger).
-
Integrates seamlessly into the Bently Nevada 3500 System.
-
Optional 4–20 mA outputs via I/O module.
-
Front-panel LED indicators for system status (OK, TX/RX, Bypass).
-
Configurable via Bently Nevada 3500 Configuration Software.
-
Compliant with API 670, CE, CSA, and ATEX standards.
-
Robust, industrial-grade design suitable for continuous operation.
Technical Specifications
| Parameter | Specification | Description / Notes |
|---|---|---|
| Model Number | 3500/72 | Reciprocating Compressor Velocity / Impact Monitor |
| Monitor Module Part Number | 176449-08 | Primary monitoring module |
| I/O Module Part Number | 135489-01 | Associated input/output interface |
| System Compatibility | Bently Nevada 3500 Machinery Protection System | Full-height rack module |
| Number of Channels | 4 | Individually configurable |
| Measured Parameters | Frame Velocity, Impact, Crosshead Acceleration | Channel-specific setup |
| Input Type | Accelerometers and velocity sensors | Compatible with Bently Nevada transducers |
| Input Range | Up to 100 g (acceleration), 50 mm/s (velocity) | Depending on sensor type |
| Signal Processing | Digital, continuous | Real-time analysis |
| Sampling Rate | Up to 20 kHz | High-speed data acquisition |
| Alarm Levels | 2 per channel (Alert, Danger) | Programmable thresholds |
| Alarm Delay | 0–100 seconds | Adjustable |
| Output Options | 4–20 mA proportional (via I/O module) | Optional feature |
| Communication Interface | 3500 Rack Backplane | To relay and display modules |
| Power Consumption | Approx. 10 W | Typical |
| Operating Temperature | –30 °C to +65 °C | Continuous operation |
| Storage Temperature | –40 °C to +85 °C | Non-operating condition |
| Relative Humidity | 5–95% non-condensing | Industrial tolerance |
| Dimensions (H × W × D) | 241.3 × 24.4 × 241.8 mm (9.50″ × 0.96″ × 9.52″) | Full-height module |
| Weight | Approx. 0.9 kg (2.0 lb) | Typical |
| Mounting Type | Full-height rack slot | Installed via backplane connector |
| Compliance | API 670, CE, CSA, ATEX | Global standards compliance |
