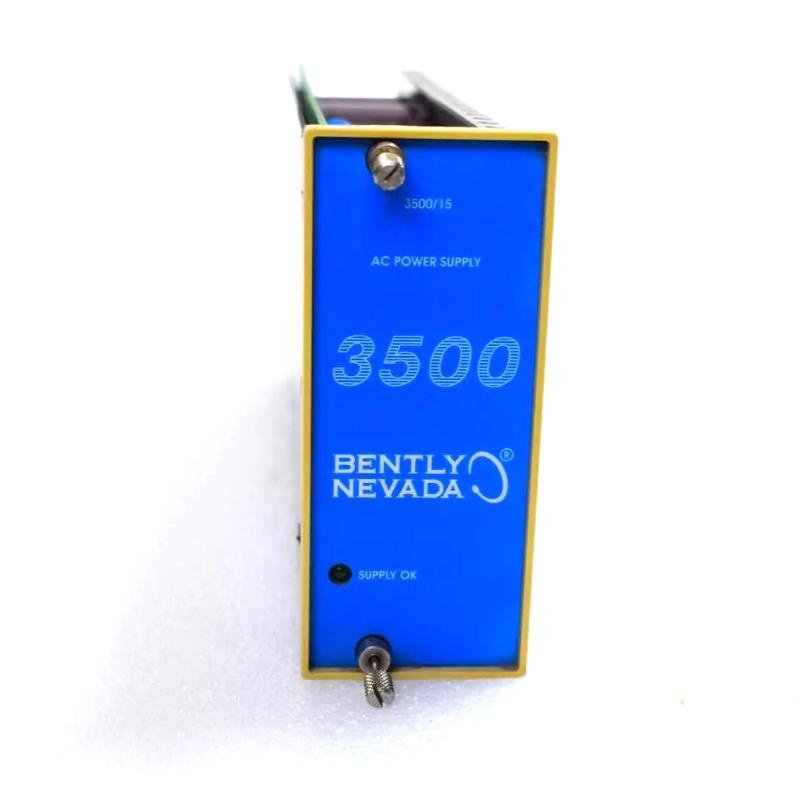

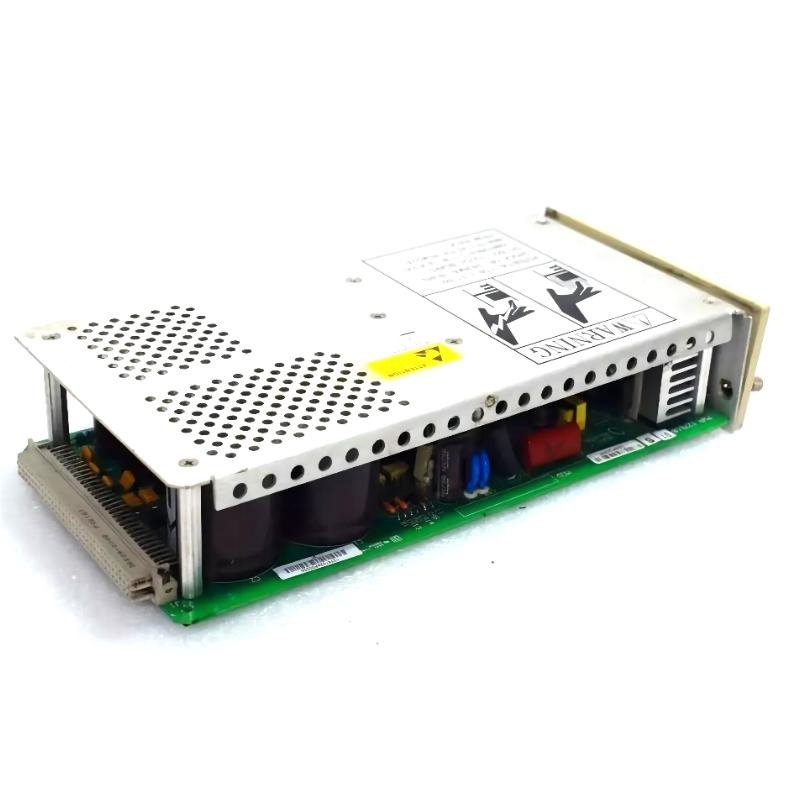

Bently Nevada 3500/15 106M2686-00+127610-01 Power Supply Module
Manufacturer: Bently Nevada
Product Number: 3500/15 (106M2686-00, 127610-01)
Category: Power Supply Module
Series: 3500 Machinery Protection System
Function: Provides regulated DC power to all modules within the 3500 rack
Application: Ensuring stable operation of machinery protection systems for critical rotating equipment
Product Description
The Bently Nevada 3500/15 Power Supply Module with part numbers 106M2686-00 and 127610-01 is a core component of the 3500 Machinery Protection System. It provides reliable and regulated DC power to all modules within the rack, ensuring stable operation for critical vibration and condition monitoring functions. This power supply is designed for use in high-demand industrial environments and supports redundant configurations for maximum availability and continuous machinery protection.
Main Features
-
Stable DC power output for the entire 3500 rack
-
Supports redundancy to maintain operation during module replacement or failure
-
Hot-swappable design enabling maintenance without system downtime
-
Available in AC and DC input versions for flexibility across applications
-
Comprehensive protective circuits against overvoltage, overcurrent, and thermal overload
-
Front panel indicators provide real-time status monitoring
-
Engineered for demanding industrial conditions ensuring long-term reliability
Technical Specifications
Dimensions and Weight
| Item | Specification |
|---|---|
| Dimensions | 120.7 × 50.8 × 251.5 mm |
| Weight | 1.39 kg |
General Information
| Item | Specification |
|---|---|
| Manufacturer | Bently Nevada (a Baker Hughes company) |
| Model Number | 3500/15 (106M2686-00, 127610-01) |
| Product Type | Power Supply Module |
| Mounting | 3500 rack slot, rear-loading design |
| Operating Temp. | 0°C to +65°C |
| Storage Temp. | -40°C to +85°C |
Electrical Characteristics
| Item | Specification |
|---|---|
| Input Voltage | 100–240 VAC (106M2686-00), 24 VDC (127610-01) |
| Frequency | 47–63 Hz (AC version) |
| Output Voltage | +24 VDC regulated (to rack modules) |
| Power Capacity | 150 W max |
| Efficiency | >85% |
Environmental Specifications
| Item | Specification |
|---|---|
| Humidity Range | 5–95% RH (non-condensing) |
| Vibration | 5–200 Hz, 1.5 mm displacement, 2G |
| Shock Resistance | 15G, 11 ms |
| Protection Class | IP20 |
Industry Applications
The Bently Nevada 3500/15 Power Supply Module is widely applied in:
-
Oil & Gas: Ensuring reliable compressor and turbine monitoring
-
Power Generation: Continuous machine protection in steam and gas turbines
-
Petrochemical & Refining: Safe operation of rotating and critical assets
-
Steel & Heavy Industry: Protection of motors, pumps, and large equipment
-
Marine & Offshore: Dependable monitoring in demanding environments
-
Pharmaceutical: Stable machine condition monitoring for production systems
