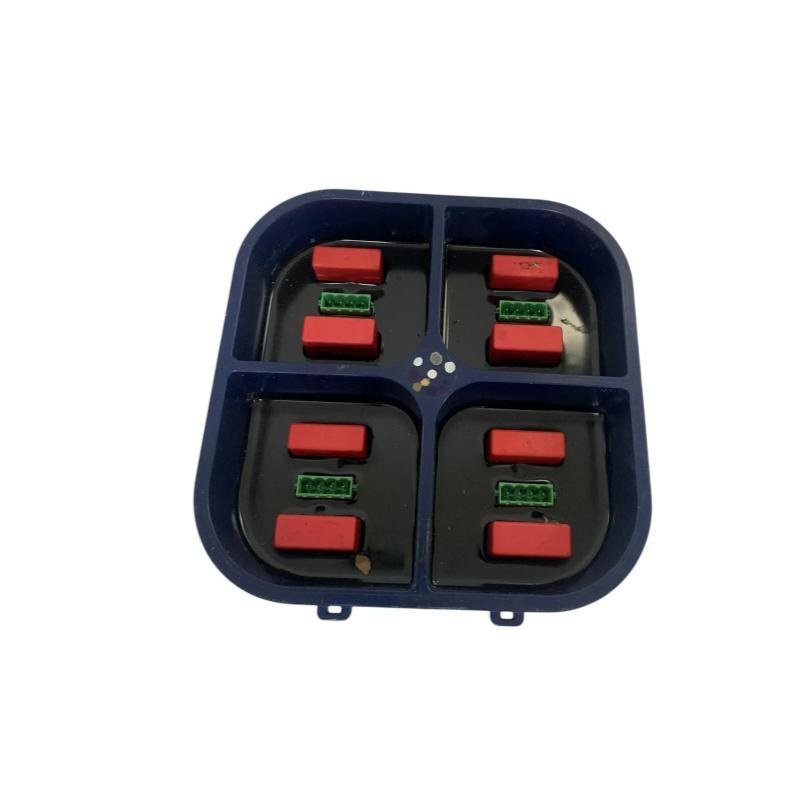

ABB IPS21-24V-35AD 3BHE032593R0001 isolated power supply module
Manufacturer: ABB
Product Number: IPS21-24V-35AD (3BHE032593R0001)
Category: Isolated Power Supply Module
Output Voltage: 24 V DC
Output Current: 35 A
Input Voltage: 85–264 V AC or 90–350 V DC
Isolation: 3 kV AC
Efficiency: Up to 92%
Product Description
The ABB IPS21-24V-35AD 3BHE032593R0001 is a high-performance isolated power supply module designed for industrial automation systems. This module provides a stable 24V DC output voltage with a maximum output current of 35A, suitable for powering devices such as ABB Advant Master controllers. Its isolation design effectively reduces electrical noise and interference, ensuring system stability and reliability.
Main Features
-
Provides a stable 24V DC output voltage with a maximum output current of 35A.
-
Wide input voltage range supporting 100–240 V AC or 120–240 V DC.
-
Offers 3 kV AC electrical isolation to prevent electrical interference.
-
High-efficiency design with a typical efficiency of up to 90%.
-
Wide operating temperature range from -40°C to +70°C, suitable for various industrial environments.
-
Complies with EN 61000-6-2 and EN 61000-6-3 EMC standards for electromagnetic compatibility.
-
Meets EN 60950-1 safety standards for user safety.
Technical Specifications
Dimensions and Weight
| Item | Specification |
|---|---|
| Dimensions | 125 × 80 × 50 mm |
| Weight | 1.6 kg |
General Information
| Item | Specification |
|---|---|
| Manufacturer | ABB |
| Model Number | 3BHE032593R0001 |
| Product Type | Isolated Power Supply Module |
| Mounting Type | Modular Installation |
| Operating Environment | Industrial Environment |
| Storage Temperature | -40°C to +85°C |
| Operating Temperature | -40°C to +70°C |
Electrical Characteristics
| Item | Specification |
|---|---|
| Input Voltage Range | 100–240 V AC or 120–240 V DC |
| Output Voltage | 24 V DC |
| Output Current | Maximum 35 A |
| Isolation Voltage | 3 kV AC |
| Efficiency | Typical 90% |
Environmental Specifications
| Item | Specification |
|---|---|
| Humidity Range | 5% to 95% RH (non-condensing) |
| Vibration Resistance | 5–150 Hz, 2 G |
| Shock Resistance | 15 G, 11 ms |
| Protection Class | IP20 |
Industry Applications
The ABB IPS21-24V-35AD 3BHE032593R0001 Isolated Power Supply Module is widely used in the following industries:
-
Automation control systems in the power industry
-
Automation systems in the oil and gas industry
-
Mining automation control and monitoring
-
Pulp and paper production process control
-
Water treatment and environmental monitoring systems
