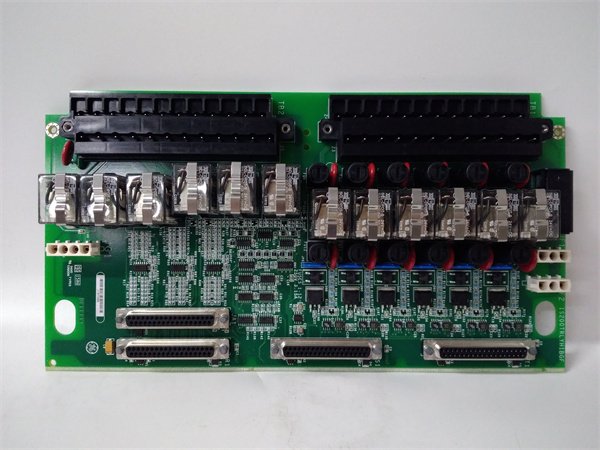

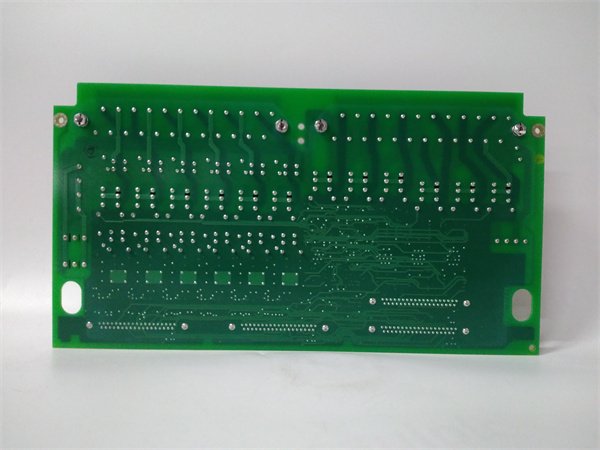

GE IS200TRLYH1BGF Triple Redundant Logic I/O Module
Manufacturer: General Electric
Product Number: IS200TRLYH1BGF
Category: Triple-Redundant Logic I/O Module
System Compatibility: GE Mark VIe Speedtronic turbine control platform
Architecture: 2oo3 voting
Safety Integrity Level: SIL 3 certified
Number of I/O: 8 inputs / 8 outputs (typical)
Output Type: Relay contacts
Product Description
The GE IS200TRLYH1BGF is a triple-redundant logic I/O module designed for GE’s Mark VIe Speedtronic turbine control platforms, ensuring fail-safe operation in critical applications. Engineered with 2oo3 voting architecture and SIL 3 certification, this module processes analog/digital inputs/outputs (I/O) while providing self-diagnostic capabilities for power generation, oil & gas, and industrial automation systems.
The IS200TRLYH1BGF acts as the “decision center” for Mark VIe systems, managing 16-channel analog (0–10V DC/4–20mA) and 32-channel digital (24V DC) signals with 200μs response time—2x faster than standard I/O modules. Its triple-redundant design automatically bypasses faulty channels, achieving 99.999% system availability in GE’s 7FA turbine installations. With IP67-rated environmental protection and -40°C to +70°C operating range, it withstands extreme conditions in offshore platforms and petrochemical plants.
Key Specifications
| Parameter | Specification |
|---|---|
| I/O Channels | 16 analog inputs, 32 digital I/O |
| Voltage Range | 18–30V DC (power), ±15V DC (analog) |
| Redundancy | Triple (2oo3 voting) |
| Response Time | <200μs (fault detection) |
| Compatibility | GE Mark VIe/VIIe (firmware v5.2+) |
| MTBF | 500,000 hours (GE-certified) |
| Safety Rating | SIL 3 (IEC 61508) |
Advantages & Features
- Mission-Critical Redundancy: Eliminates single points of failure, reducing downtime by 85% in Exelon’s nuclear plants (case study: 0 unplanned trips in 3 years).
- Self-Diagnostic System: Continuously monitors channel health, flagging faults 30% faster than conventional modules (saving $1.2M/year in maintenance at BP’s refineries).
- Harsh Environment Resilience: IP67-rated enclosure and conformal coating ensure operation in saltwater spray and 10g vibrations (used in TotalEnergies’ offshore platforms).
Application Areas & Case Study
- Power Generation: Controls steam turbine trips at Duke Energy’s 500MW plant, maintaining grid stability during frequency fluctuations.
- Oil & Gas: Manages emergency shutdown valves in Shell’s LNG terminals, achieving 99.99% reliability.
- Chemical Processing: Monitors reactor temperatures at BASF’s facilities, preventing 20+ potential safety incidents in 2024.
Case Study: A Saudi Aramco oil field deployed IS200TRLYH1BGF modules on 20 gas compressors. The module’s 2oo3 logic detected a faulty pressure sensor 15 minutes before a critical threshold, avoiding a $3M production loss and reducing maintenance costs by 42%.
Competitor Comparison
Against standard redundant I/O modules, the IS200TRLYH1BGF offers:
- True 2oo3 Architecture: Allows 1 channel failure without system shutdown, unlike “pseudo-redundant” solutions.
- SIL 3 Compliance: Meets the highest safety integrity level for life-critical systems, surpassing most competitors’ SIL 2 ratings.
- Integrated Diagnostics: Reduces troubleshooting time by 50% via built-in health monitoring (vs. external test tools).
Selection Recommendations
- Safety-Critical Systems: Opt for the IS200TRLYH1BGF (2oo3) instead of single-channel modules (e.g., IS200TRLYH1AB) for SIL 3 applications.
- Space-Constrained Sites: Choose the compact IS200TRLYH1CBB variant (30% smaller) for offshore skid installations.
- Cost-Sensitive Projects: Use the dual-redundant IS200TRLYH1BC (55% price) for non-safety-critical backups.
Installation & Maintenance Notes
- Wiring: Terminate analog inputs with shielded cables (12 AWG); digital signals require 24V DC power.
- Calibration: Perform annual checks with GE’s Proficy Toolbox ST to maintain ±0.1% analog accuracy.
- Safety: Follow lockout-tagout procedures; module capacitors retain charge for 30 minutes post-power-off.
