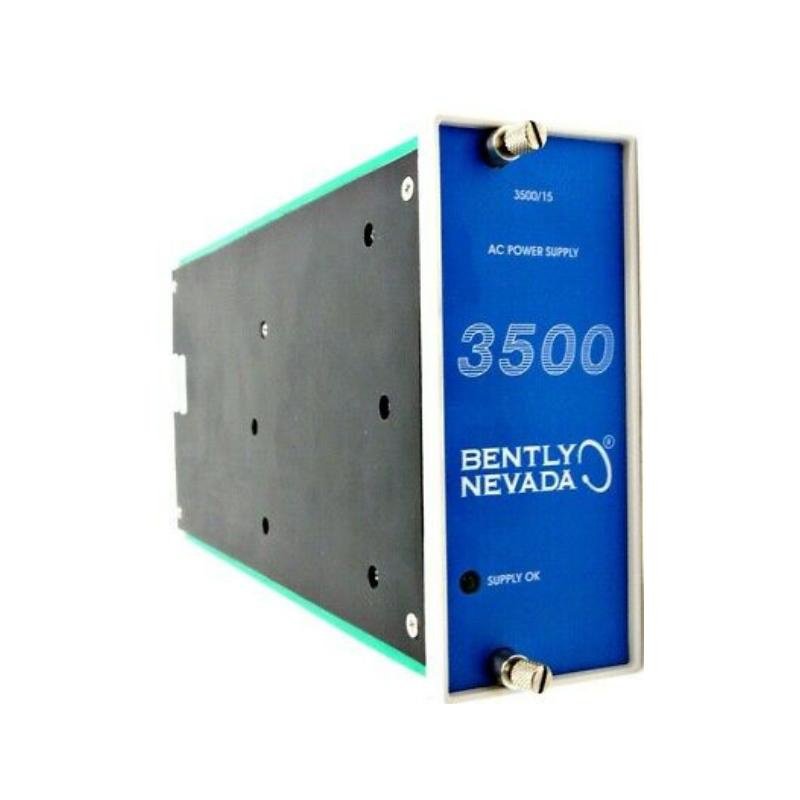

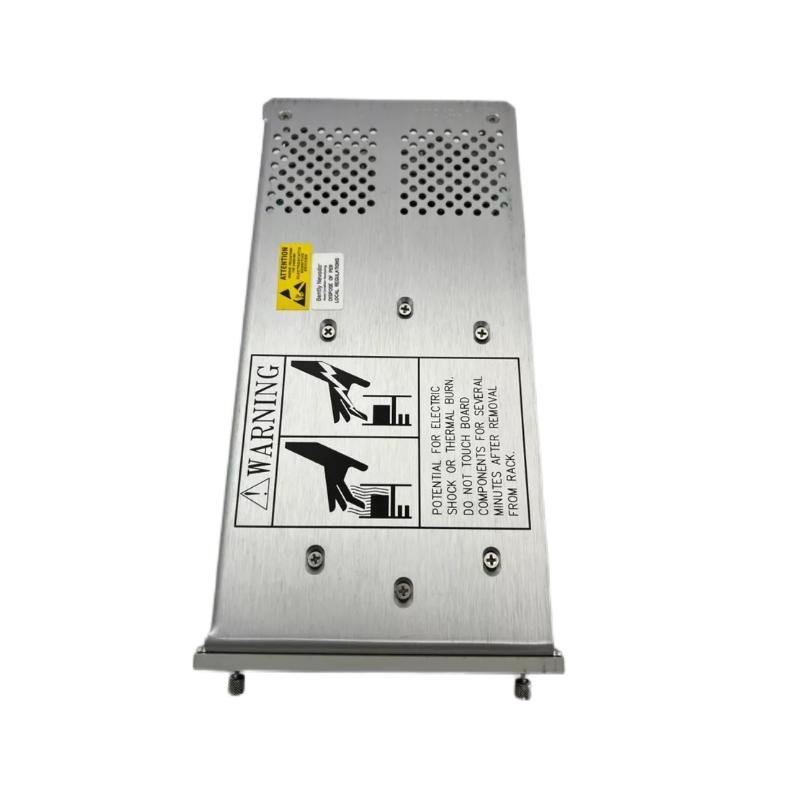

Bently Nevada 3500/15 133945-01 Power Supply Module
Manufacturer: Bently Nevada
Product Number: 3500/15 (133945-01)
Category: Power Supply Module
Series: 3500 Machinery Protection System
Function: Delivers regulated DC power to all rack-installed modules ensuring high system reliability
Product Description
The Bently Nevada 3500/15 Power Supply Module (133945-01) is a critical component of the 3500 Machinery Protection System, delivering regulated DC power to all rack-installed modules. It is designed to maintain high system reliability by providing stable power under varying industrial conditions. This model supports both primary and redundant configurations, ensuring continuous monitoring and protection of critical rotating equipment even in the event of a single power supply failure. Its robust design makes it suitable for demanding industrial environments where system uptime is essential.
Main Features
-
Primary and redundant power supply capability for maximum reliability
-
Hot-swappable design for quick replacement without system shutdown
-
Universal power input options (AC or DC) for flexible system design
-
Front-panel status indicators for operational and fault monitoring
-
Efficient power distribution across all rack modules through the backplane
-
Built for reliability in continuous process monitoring applications
-
Compact design optimized for 3500 rack installations
Technical Specifications
Dimensions and Weight
| Item | Specification |
|---|---|
| Dimensions | 120.7 × 50.8 × 251.5 mm |
| Weight | 1.39 kg |
General Information
| Item | Specification |
|---|---|
| Manufacturer | Bently Nevada (Baker Hughes) |
| Model Number | 3500/15 (133945-01) |
| Product Type | Power Supply Module |
| Mounting | 3500 Series Rack Slot |
| Operating Temp. | 0°C to +65°C |
| Storage Temp. | -40°C to +85°C |
Electrical Characteristics
| Item | Specification |
|---|---|
| Input Voltage | AC: 85–264 V, 47–63 Hz / DC: 24 V or 48 V |
| Output Voltage | Regulated 24 V DC |
| Power Distribution | Supplied through 3500 rack backplane |
| Redundancy | Supports dual power supply configuration |
| Protection | Over-voltage, over-current, short-circuit |
Environmental Specifications
| Item | Specification |
|---|---|
| Humidity Range | 5–95% RH (non-condensing) |
| Vibration | 5–200 Hz, 2G |
| Shock Resistance | 15G, 11 ms |
| Protection Class | IP20 |
Industry Applications
The Bently Nevada 3500/15 Power Supply Module (133945-01) is widely applied in:
-
Oil & Gas: Continuous monitoring of turbines, compressors, and pumps
-
Power Generation: Reliable operation of turbine and generator protection systems
-
Chemical and Petrochemical: Critical process machinery protection in refineries and plants
-
Marine and Offshore: Stable monitoring in offshore platforms and marine propulsion systems
-
Steel and Heavy Industry: Ensuring uptime of motors, gearboxes, and rolling mills
-
Pharmaceuticals: Supporting precision equipment monitoring for production reliability
