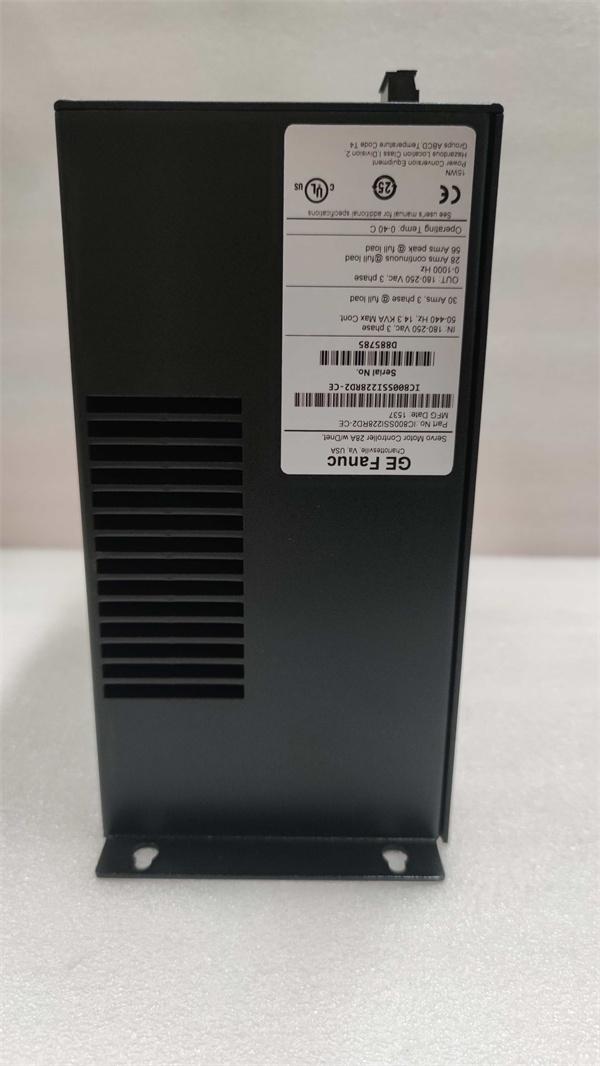

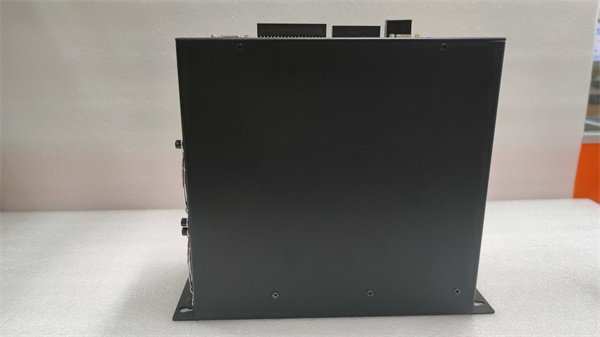

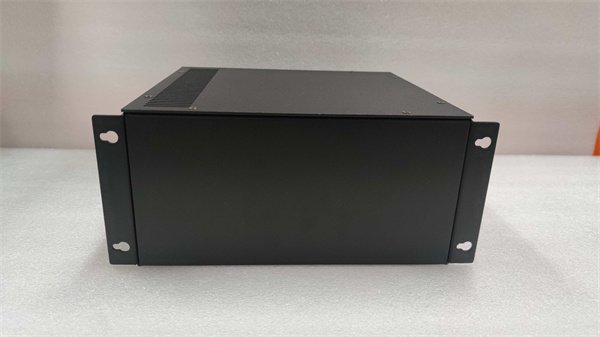

GE Fanuc IC800SSI228RD2 multi-purpose industrial control module

The IC800SSI228RD2 is a multi-purpose industrial control module designed by GE Fanuc for steam/gas turbine management systems and industrial automation applications. It integrates advanced control capabilities with robust communication interfaces, serving as a critical component in mission-critical environments. Below is a detailed technical overview based on available documentation and industry references:

 Product Description

The IC800SSI228RD2 is part of GE Fanuc’s IC800 series, which includes modules for turbine control, process automation, and motor management. This module is engineered to:

• Interface with turbine control systems (e.g., Mark VI series) for real-time monitoring and fault diagnosis.
• Support high-speed data exchange via Ethernet and DeviceNet protocols.
• Deliver precise motor control in industrial machinery (e.g., forklifts, conveyors).

Key features include:

• Dual Ethernet ports: Enables redundancy in communication networks.
• Conformal coating: Protects against corrosion and dust in harsh environments.
• LED indicators: Monitors operational status and error conditions.
• Processor support: Works with main CPUs to execute control algorithms.

 Technical Specifications

 Functionality and Integration

The IC800SSI228RD2 performs multiple roles depending on the application:

A. Turbine Control

• Fault Monitoring: Captures and reports faults from gate driver boards to the main control system.
• Signal Conditioning: Processes feedback signals from sensors (e.g., temperature, pressure) for precise turbine adjustment.
• Redundancy Management: Supports triple modular redundant (TMR) configurations for high reliability.

B. Motor Control

• Servo Control: Manages servo motors in forklifts and AGVs with 28 A/230 VAC power output.
• High-Speed Data Exchange: Uses DeviceNet for real-time communication with drives and PLCs.
• Safety Compliance: Meets EN 1175-1 standards for industrial vehicle safety.

C. General Automation

• Digital Input/Output: Features 16 channels for discrete signals (e.g., switches, sensors).
• Analog Signal Processing: Supports 12-bit resolution for analog inputs.

 Application Scenarios

• Power Generation: Controls steam turbines in power plants.
• Oil & Gas: Manages gas turbines in refineries and offshore platforms.
• Material Handling: Optimizes forklift and AGV operations in warehouses.
• Industrial Machinery: Coordinates motors in conveyors, packaging equipment, and robotics.

Case Study:

In a petrochemical plant, the IC800SSI228RD2 was used to monitor turbine speed during distillation, improving energy efficiency by 15% and reducing downtime by 40% through real-time diagnostics.

 Competitor Comparison

 Selection Guidelines

• Compatibility: Ensure alignment with GE Fanuc’s IC800 series and existing systems.
• Redundancy: Opt for TMR configurations in critical applications.
• Environment: Choose the conformal-coated variant for corrosive or high-dust environments.

 Precautions

• ESD Protection: Handle with anti-static gloves and storage bags.
• Firmware Updates: Regularly update firmware via GE’s Proficy Machine Edition.
• Mounting: Securely fasten to prevent vibrations.
• Power Supply: Use filtered power sources to avoid voltage spikes.
