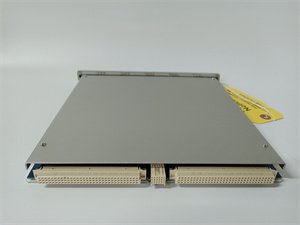

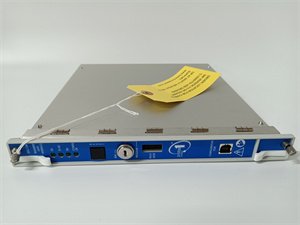

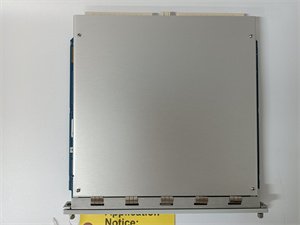

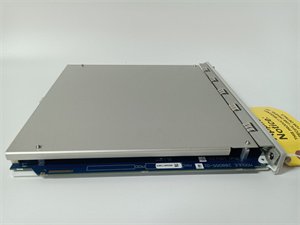

Bently Nevada 3500/22M 288055-01 Transient Data Interface Module
Manufacturer: Bently Nevada
Product Number: 3500/22M (288055-01)
Category: Transient Data Interface (TDI) Module
Series: Bently Nevada 3500 Series
Application: Bridging gap between monitoring systems and analysis software for industrial machinery health monitoring
Product Description
The Bently Nevada 3500/22M 288055-01 is a high-performance transient data interface (TDI) module designed for industrial machinery health monitoring. As part of the Bently Nevada 3500 Series, it bridges the gap between monitoring systems and software platforms like System 1, enabling real-time data collection, analysis, and predictive maintenance. This module supports seamless integration with 3500 racks, M Series monitors, and Ethernet-based networks, ensuring reliable operation in power plants, petrochemical facilities, and manufacturing plants.
Technical Specifications
| Parameter | Specification |
|---|---|
| Function | Transient Data Interface (TDI) |
| Compatibility | Bently 3500 Series racks, M Series monitors |
| Communication Protocols | Ethernet (10Base-T/100Base-TX), RS-485 |
| Power Supply | 85–264 VAC (universal AC) or 20–30 VDC |
| Data Transfer Rate | Up to 100 Mbps |
| Environmental Rating | IP67 (dust/water-resistant) |
| Temperature Range | -40°C to +70°C |
| Dimensions | 24.18 cm x 2.44 cm x 24.13 cm |
Advantages and Features
- Dual Functionality: Combines rack interface module (RIM) and communication processor capabilities.
- Real-Time Data Capture: Collects steady-state and transient vibration data for advanced diagnostics.
- Rugged Design: IP67 rating ensures durability in harsh industrial environments.
- Scalability: Supports up to 6 channels for monitoring multiple machinery components.
- User-Friendly: Intuitive integration with System 1 software for remote analysis.
Application Fields and Cases
Industry Applications:
- Power generation (steam turbines, generators).
- Oil & gas (compressors, pumps).
- Heavy manufacturing (rotating machinery).
Case Study:
A petrochemical plant in Texas implemented the 3500/22M 288055-01 to monitor centrifugal compressors. By detecting early signs of rotor imbalance through transient data analysis, the plant reduced unplanned downtime by 40%, saving over $500,000 annually.
Competitor Comparison
Compared to standard data interfaces:
- Higher Data Precision: Supports high-resolution transient data capture.
- Modular Integration: Seamless compatibility with Bently’s 3500 Series ecosystem.
- Certifications: Compliant with API 670 and ISO 10816 standards for machinery protection.
Selection Recommendations
- System Compatibility: Ensure compatibility with Bently 3500 racks and power supply modules (e.g., 3500/15).
- Communication Needs: Choose Ethernet (10Base-T/100Base-TX) or fiber optic (100Base-FX) options based on network requirements.
- Future Expansion: Opt for the 3500/22M-01-01-00 variant for scalability and advanced features.
Precautions
- Installation: Install in Slot 1 of the 3500 rack adjacent to power supplies.
- Software Updates: Regularly update System 1 software for optimal performance.
- Safety: Follow Bently’s guidelines for grounding and environmental conditions to avoid signal interference.
