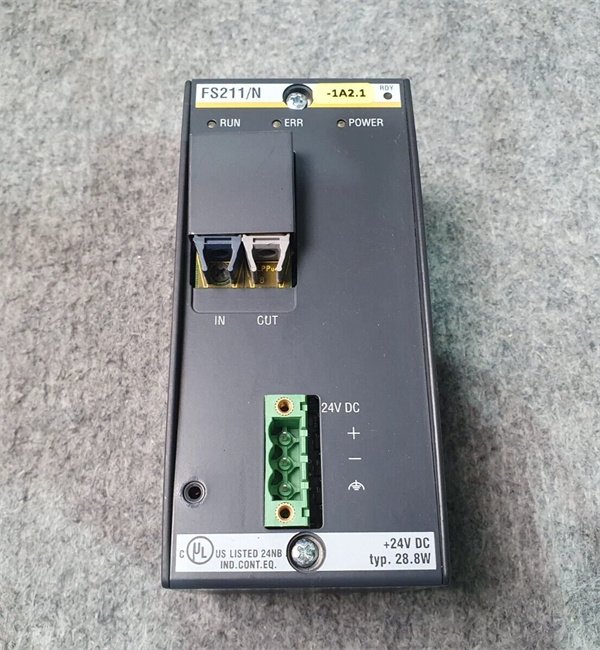

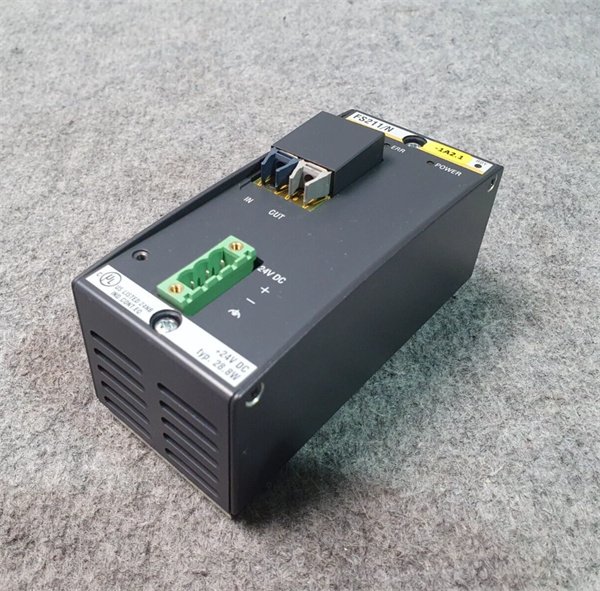

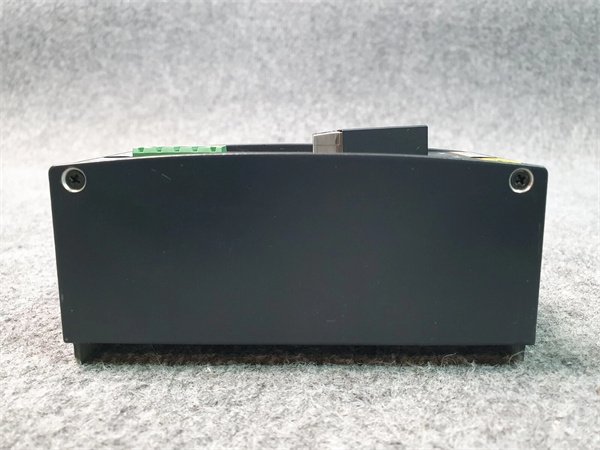

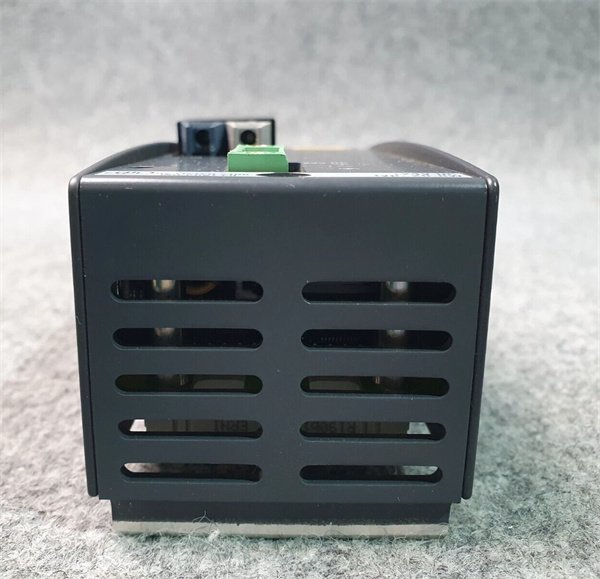

Bachmann FS211 SIL 3 Safety Logic Solver

The Bachmann FS211 is a SIL 3-certified functional safety module engineered for mission-critical safety applications within Bachmann’s M1 automation platform. Designed for high-reliability shutdown systems in rail, energy, and industrial processes, this module executes safety logic with deterministic sub-15ms response times. The FS211 integrates dual-channel redundant processing with continuous self-diagnostics, detecting internal faults and external signal discrepancies to prevent unsafe states. Compliant with IEC 61508 and EN 50129 standards, it operates across -40°C to +70°C environments while withstanding 5g vibrations. When paired with certified I/O modules like the BS207, the Bachmann FS211 enables safety instrumented functions (SIFs) including emergency stops, fire/gas shutdowns, and overspeed protection. Its TÜV-certified logic solvers and hardware-based voting logic ensure <10⁻⁹ probability of dangerous failure per hour – making it indispensable for protecting personnel, assets, and the environment.

Technical Specifications

Certified Safety Architecture: The FS211 employs hardware-based 1oo2D (one-out-of-two with diagnostics) voting with diverse processors, achieving TÜV-certified SIL 3 performance without external redundancies.

Deterministic Response: Guaranteed ≤15ms safety reaction time from sensor input to final element output – critical for emergency shutdown systems in power plants or rolling stock.

Advanced Diagnostics: Continuous channel-level monitoring detects stuck relays, wire breaks, and internal FPGA errors. The FS211 generates timestamped safety logs with first-failure annunciation.

Cyber-Secure Operation: Hardware-enforced code signing prevents unauthorized logic modifications. Communication integrity checks via CRC-32 protect against data corruption.

Scalable Safety Networks: Supports up to 16 redundant FS211 modules over POWERLINK Safety (IEC 61784-3-3), enabling distributed safety systems across large facilities.

The Bachmann FS211 deploys in high-hazard environments requiring certified safety:

Railway Signaling: Implements vital interlocking logic for track switches and collision avoidance systems (EN 50129 compliance)

Process Industry: Manages emergency shutdown (ESD) for refinery furnace trains and chemical reactor overpressure protection

Power Generation: Safety logic turbine overspeed trips and boiler burner management systems (BMS)

Tunnel Safety: Controls fire damper actuation and evacuation lighting during emergencies

Mobile Machinery: Implements ISO 13849 PL e stop functions for robotic arms in automotive plants

Installation and Maintenance

Pre-installation preparation: Perform SIL verification calculation per IEC 61511. Isolate safety cabling (>300mm from non-safety wires). Validate redundant power feeds with independent sources.

Maintenance recommendations: Execute quarterly simulated fault injections via Bachmann Safety Suite software. Replace modules after 15 years or upon cumulative diagnostic fault count >100. Calibrate every 24 months using TÜV-certified test equipment.

Product Guarantee

Bachmann provides a 10-year functional safety warranty for the FS211, covering SIL 3 performance when installed per specifications. Includes lifetime TÜV recertification support and 24/7 critical response with 2-hour escalation. All modules undergo 1,000-hour accelerated life testing with fault seeding.
