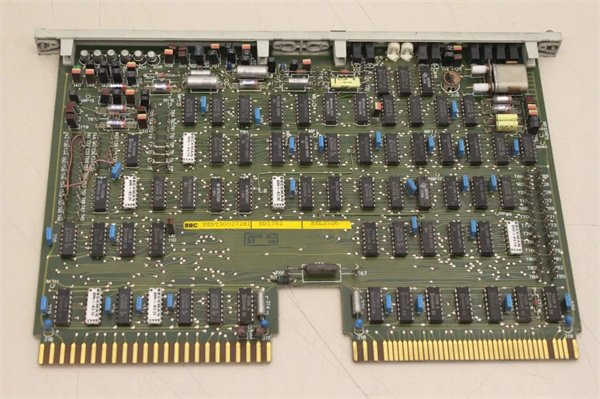

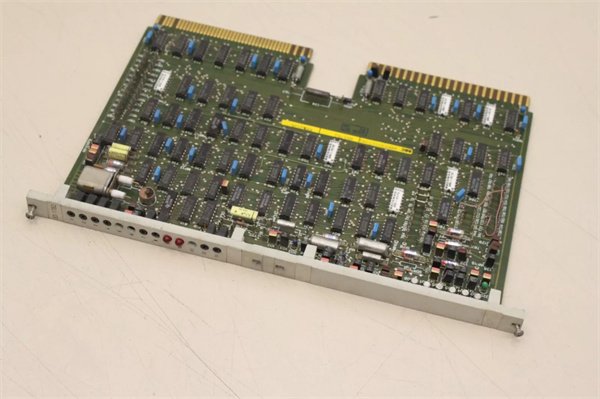

ABB ED1782 HEDT300272R1 Embedded Controller

The ABB ED1782 HEDT300272R1 is a high-performance embedded controller designed for industrial automation systems, integrating advanced control capabilities with seamless fieldbus connectivity. As part of ABB’s industrial automation portfolio, the ED1782 HEDT300272R1 serves as a critical component for distributed control systems (DCS) and programmable logic controllers (PLCs), enabling real-time monitoring and control of industrial processes. Its core function is to manage drive applications through a 32-bit control and status interface, acting as a bridge between main drives and embedded fieldbus environments (e.g., Modbus). The controller supports remote operation (REM mode) and is compatible with ABB’s drive profiles (e.g., ABB DRV Full), ensuring flexibility in industrial settings. With a compact design and rugged construction, the ED1782 HEDT300272R1 is ideal for harsh environments, delivering reliable performance in manufacturing, energy, and process control sectors.

Key Technical Parameters

Advantages and Characteristics

• High Reliability: Industrial-grade design with robust protection against voltage fluctuations and environmental stresses.
• Easy Integration: Seamless compatibility with ABB drives and fieldbus systems (e.g., Modbus), reducing setup time.
• Remote Control: Supports REM mode for centralized monitoring and control, enabling efficient system management.
• Flexible Configuration: Adjustable parameters (e.g., 1001/1002 for command sources) allow customization for diverse applications.
• Compact Footprint: Space-saving design suitable for modular industrial setups.
• Long-Term Support: Backed by ABB’s global service network and 12-month warranty.

Application Fields and Cases

• Industries: Manufacturing, energy (power plants), water treatment, and automotive.
• Scenarios: Motor control, process automation, and drive system optimization.
• Case Study: A manufacturing plant integrated the ED1782 HEDT300272R1 into its conveyor system’s ABB drives. The controller’s remote diagnostics and real-time adjustments reduced downtime by 20%, improving overall equipment effectiveness (OEE).

Competitor Comparison

Compared to similar embedded controllers, the ED1782 HEDT300272R1 stands out for its native integration with ABB’s drive ecosystem, eliminating the need for third-party adapters. Its 32-bit control interface offers faster data processing than legacy 16-bit systems, while its modular design allows for easier expansion. Additionally, ABB’s standardized parameter setup (e.g., 9802/5305) streamlines configuration, reducing commissioning complexity.

Selection Suggestions

• Compatibility: Ensure compatibility with ABB drives (verify parameter 9802/5305 for profile support).
• Environment: Consider temperature (0–50°C typical) and humidity (non-condensing) requirements.
• Integration Needs: Evaluate interface requirements (Modbus/Ethernet) and control profile complexity.
• Budget: Balance performance with cost; the ED1782 HEDT300272R1 offers a cost-effective solution for ABB-centric systems.

Precautions

• Installation: Power off systems before installation; follow ABB’s safety guidelines for electrical connections.

• Configuration: Use ABB’s drive tools (e.g., DriveWindow LT) for parameter setup to avoid errors.

• Maintenance: Regularly inspect for dust or corrosion; schedule firmware updates for optimal performance.

• Safety: Ensure compliance with local electrical codes (e.g., NEC, IEC) and use appropriate PPE during handling.
