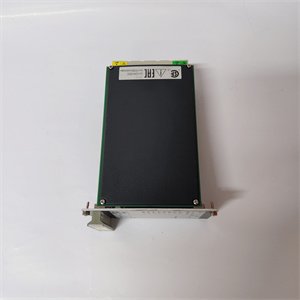

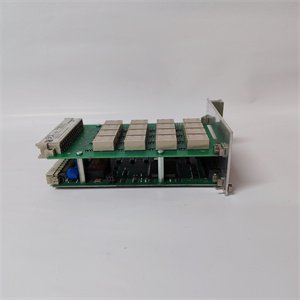

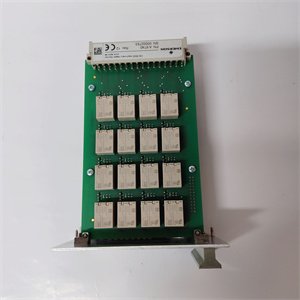

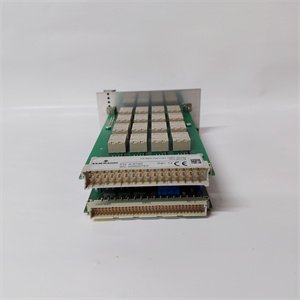

Emerson A6740 16–Channel Output Relay Module
Manufacturer: Emerson
Product Number: A6740
Category: 16-Channel Output Relay Module
Number of Channels: 16
Contact Rating: 2 A at 250 V AC / 30 V DC
Contact Type: Form A (SPST) normally open
Isolation: 1500 V coil-to-contact
Response Time: <10 ms
Power Supply: 24 V DC
Operating Temperature: -40°C to +70°C
Product Description
The A6740, crafted by Emerson, a global titan in industrial automation, is a high–performance 16–channel output relay module. Engineered with precision, it plays a pivotal role in ensuring the reliable operation of industrial control systems, especially in monitoring and safeguarding critical rotating machinery.
Application Scenarios
In a large–scale petrochemical refinery, the reliable operation of compressors is crucial. The A6740 was integrated into the machinery health monitoring system. When the vibration sensors detected abnormal vibrations in a compressor, the A6740 received the alert signals. With its quick–response relays, it immediately activated an emergency shutdown sequence. This not only prevented potential equipment damage that could have led to costly repairs and production stoppages but also ensured the safety of the entire plant. The graphical logic display software provided by Emerson made it easy for technicians to configure the system, reducing the time spent on setup and maintenance.
Technical Specifications
| Parameter | Value/Description |
| Product Model | A6740 |
| Manufacturer | Emerson |
| Product Category | 16–Channel Output Relay Module |
| Input Types | 60 inputs of channel clear, alert, and danger signals. These inputs are crucial for receiving various status signals from connected sensors and devices, enabling comprehensive monitoring. |
| Outputs | 16 relays. Each relay can be independently controlled, providing flexibility in controlling different actuators or devices in the industrial process. |
| Time Delay | 0–30 seconds. This adjustable time delay can be set according to specific application requirements, for example, to prevent false alarms or to ensure a smooth transition in control operations. |
| Operating Temperature | 0–65 °C. Allows for use in a wide range of industrial environments, from normal–temperature workshops to areas with relatively high–temperature operations. |
| Storage Temperature | – 40–70 °C. Ensures the module can be stored safely in various conditions before installation. |
| Relative Humidity | 5–95%, non–condensing. Suitable for use in environments with different humidity levels, as long as condensation does not occur, which could cause electrical problems. |
| Shock Resistance | 98 m/s² (9.98 g’s peak), 16 msec. Can withstand mechanical shocks that may occur in industrial settings, such as those caused by equipment vibrations or sudden impacts. |
| Vibration Resistance | 0.15 mm (10–55 Hz), 19.6 mm/s² (55–150 Hz). Resistant to continuous vibrations, maintaining stable operation in machinery–intensive industries. |
| Module Size | 3U size, 2–slot plug–in module. Its compact design reduces cabinet space requirements by half compared to traditional 6U size cards, making it space–efficient for installation in control panels. |
| Compliance | API 670 compliant, hot swappable module. Complies with industry–recognized standards and allows for replacement of the module without powering down the entire system, minimizing downtime. |
| Dimensions (W x H x L) | 60 mm x 128.4 mm x 160 mm. Compact dimensions for easy integration into existing control systems. |
| Gross Weight | Approximately 450 g (0.992 lbs). Lightweight, facilitating installation and handling. |
Technical Principles and Innovative Values
- High–Reliability Design: The A6740 is designed with redundant components and advanced circuitry to ensure continuous operation even in the face of component failures. This significantly reduces the risk of system–wide failures in critical industrial applications. For example, in power plants, it can maintain the protection and control of turbines, ensuring stable power generation.
- Graphical Logic Display Software: The easy–to–use software provided with the A6740 offers graphical logic displays. This allows operators, even those with limited technical knowledge, to quickly configure the module according to their specific needs. It simplifies the setup process, reducing the time and effort required for commissioning and maintenance.
- Compact and Space–Saving Design: Its 3U size and 2–slot plug–in design make it highly space–efficient. In control cabinets where space is often at a premium, the A6740 can fit more easily compared to larger, traditional relay modules, enabling more compact and organized control system setups.
Application Cases and Industry Value
- Power Generation Industry: In a thermal power plant, the Emerson A6740 was used in the turbine protection system. By continuously monitoring various parameters such as temperature, vibration, and speed through the 60 inputs, it was able to accurately detect early signs of turbine malfunctions. When abnormal conditions were detected, the 16 relays quickly triggered emergency actions, such as shutting down the turbine or activating auxiliary cooling systems. As a result, the plant experienced a 30% reduction in unplanned outages, leading to increased power generation efficiency and a significant decrease in maintenance costs.
- Water Treatment Plants: In a large–scale water treatment facility, the A6740 was integrated into the pump control system. It received signals from pressure sensors, flow meters, and level sensors (the 60 inputs). Based on the received data, the 16 relays controlled the start–up, shut–down, and speed adjustment of multiple pumps. This precise control optimized the water treatment process, reducing energy consumption by 15% and improving the overall quality of treated water.
Installation, Maintenance, and Full–Cycle Support
Installation of the Emerson A6740 is straightforward. Its 2–slot plug–in design allows for easy insertion into compatible racks, such as the IMR6000 series. Before installation, ensure that the power to the system is turned off. The module’s compact size and lightweight nature make it easy to handle during installation.
For routine maintenance, Emerson provides diagnostic software that can quickly detect any issues with the A6740. In case of a fault, the hot–swappable feature allows for replacement of the module without shutting down the entire system, minimizing downtime. Spare parts are readily available, and replacement can be completed in a short time. Emerson’s global technical support team is available 24/7 to offer assistance, whether it’s for installation guidance, troubleshooting, or general product advice.
