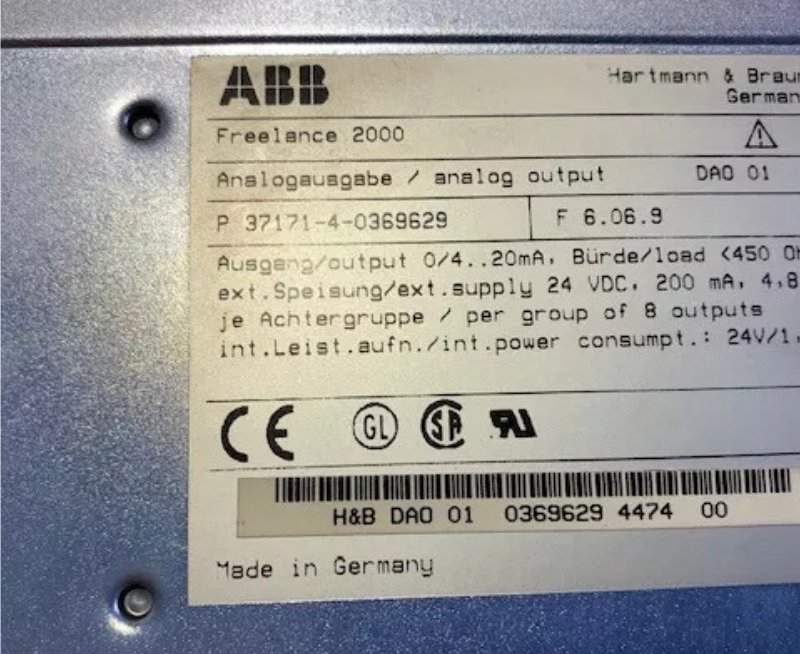

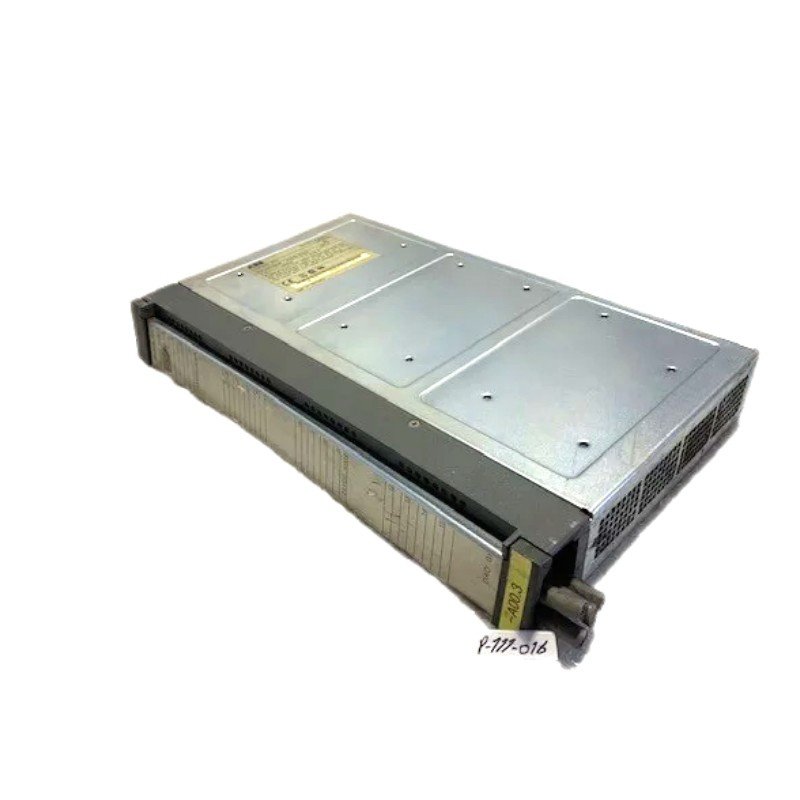

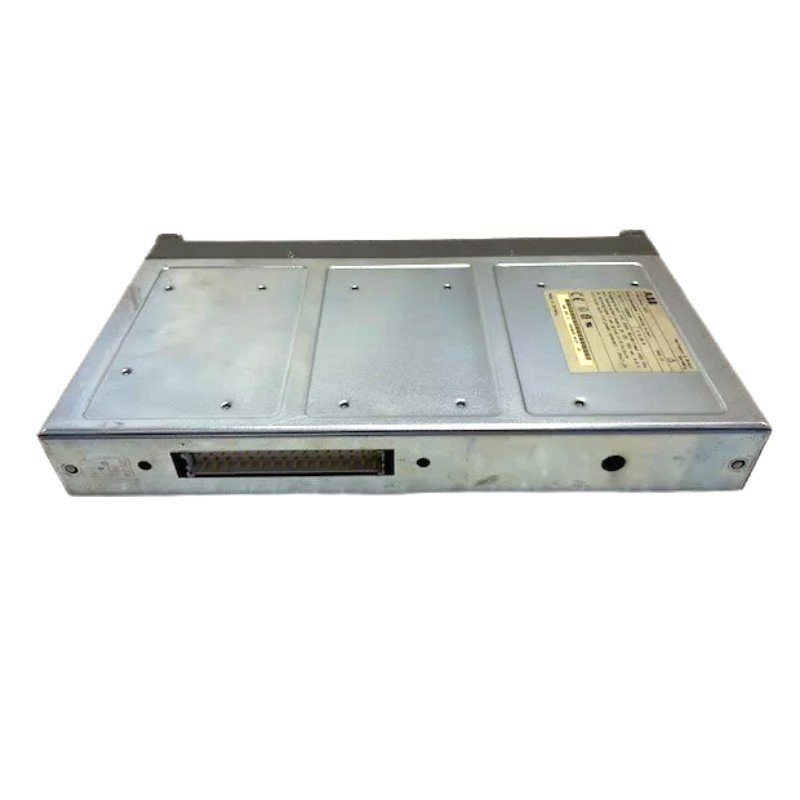

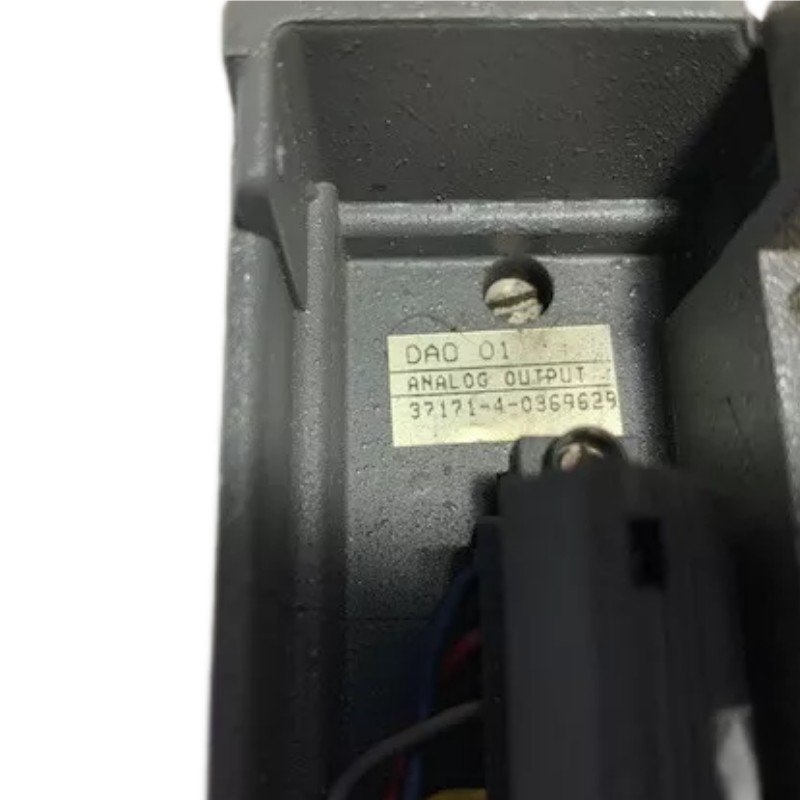

ABB DAO01 P-3717-4-0369629 Freelance 2000 Analog Output Module
Manufacturer: ABB
Product Number: DAO01 (P-3717-4-0369629)
Category: Analog Output Module (Freelance 2000 Series)
Number of Channels: 8
Output Signal Types: 4-20 mA, 0-10 V
Resolution: 12-bit DAC
Accuracy: ±0.1% of full scale
Update Rate: 100 ms per channel
Isolation: 1500 V channel-to-bus isolation
Operating Temperature: -40°C to +70°C
Product Description
The ABB DAO01 P-3717-4-0369629 Freelance 2000 Analog Output Module is a high-performance analog signal output module designed for industrial automation control systems. Part of the ABB Freelance 2000 series, it supports standard analog output signals (e.g., 4-20mA or 0-10V) for precise control of actuators in industrial processes. Known for its high accuracy, reliability, and seamless integration with Freelance 2000 systems, the DAO01 module is widely used in industries such as chemical, power generation, manufacturing, and water treatment.
Key Features
- High-Accuracy Output: Supports analog signal output for industrial-grade control precision.
- Plug-and-Play Compatibility: Seamless integration with Freelance 2000 systems.
- Industrial-Grade Reliability: Suitable for harsh environments, ensuring long-term stable operation.
- Modular Design: Easy to install and maintain, with quick replacement capabilities.
- Wide Applicability: Ideal for various industrial automation scenarios, including process control and equipment monitoring.
Technical Specifications
Dimensions and Weight
| Parameter | Value/Description |
|---|---|
| Width | 203 mm |
| Height | 51 mm |
| Depth | 330 mm |
| Weight | 1.8 kg |
General Information
| Parameter | Value/Description |
| Part Number | P-3717-4-0369629 |
| ABB Type Designation | DAO 01 |
| Catalog Description | Freelance 2000 Analog Output Module |
| Product Type | I-O_Module |
| Minimum Order Qty. | 1 piece |
| Order Multiple | 1 piece |
| Customization | No |
Electrical Characteristics
| Parameter | Value/Description |
|---|---|
| Output Signal Type | 4-20mA / 0-10V |
| Operating Voltage | 24 V DC |
| Power Consumption | 5 W |
| Output Channels | 1 channel |
Environmental Conditions
| Parameter | Value/Description |
|---|---|
| Operating Temperature | -40°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Relative Humidity | 5% to 95% (non-condensing) |
| Protection Class | IP20 |
Certifications and Compliance
| Parameter | Value/Description |
|---|---|
| CE Marking | Yes |
| RoHS Compliance | Compliant with DIRECTIVE/2011/65/EU |
| Industrial Standards | Compliant with IEC 61131-2 |
Industry Applications
The ABB DAO01 P-3717-4-0369629 Freelance 2000 Analog Output Module is widely used in:
- Chemical & Petrochemical: Controls valves and actuators via analog signals.
- Power Generation: Manages boiler controls and pump speed in power plants.
- Manufacturing: Enables temperature, pressure, or flow control in production lines.
- Water Treatment: Regulates pumps and dosing systems in wastewater management.
