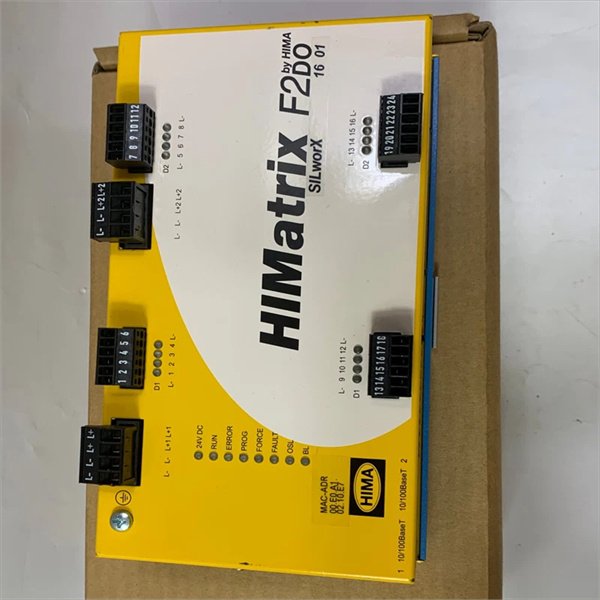

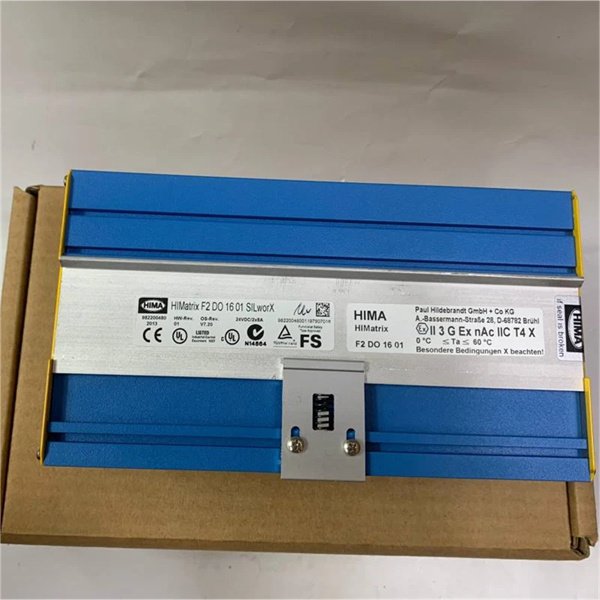

Hima HIMatrix F2 DO 8 Safety Digital Output Module
Manufacturer: HIMA
Product Number: HIMatrix F2 DO 8
Category: Safety Digital Output Module
Number of Channels: 8
Output Type: 24 V DC, 2 A
Safety Integrity Level (SIL): Suitable for safety-critical applications
Operating Temperature: -25°C to +60°C
Product Description
The HIMatrix F2 DO 8 is a safety-related digital output module designed for industrial automation systems. It provides reliable control of digital outputs and meets stringent safety standards, making it suitable for critical applications.
Detailed Parameter Table
| Parameter Name | Parameter Value |
|---|---|
| Product Model | HIMatrix F2 DO 8 |
| Manufacturer | HIMA |
| Product Category | Safety Digital Output Module |
| Output Channels | 8 safety-related relay outputs |
| Output Type | Potential-free normally open contacts |
| Maximum Output Current | 2 A per channel |
| Switching Voltage | ≥ 5 V, ≤ 250 VAC / 250 VDC |
| Switching Current | ≥ 10 mA, ≤ 3 A |
| Response Time | ≥ 20 ms (Ethernet) |
| Communication Interfaces | 2 x RJ-45, 10BASE-T/100BASE-Tx with integrated switch |
| Operating Voltage | 24 VDC (-15% to +20%) |
| Current Input | Max 0.6 A |
| External Fuse | 10 A time-lag (T) |
| Electrical Isolation | Yes |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Humidity Tolerance | Up to 95% (non-condensing) |
| Protection Class | IP20 |
| Dimensions | 207 mm (W) x 114 mm (H) x 86 mm (D) |
| Weight | 1.3 kg |
| Certifications | SIL 3 (IEC 61508), ATEX Ex ia IIC T6 |
Core Advantages and Technical Highlights
High Safety Integrity Level
The HIMatrix F2 DO 8 is certified to SIL 3 (IEC 61508) and ATEX Ex ia IIC T6, making it suitable for high-risk applications.
Redundant Communication Architecture
The module features dual-channel redundancy, ensuring continuous operation even in the event of a primary communication link failure.
Robust and Reliable Design
The HIMatrix F2 DO 8 is designed for harsh industrial environments, with a wide operating temperature range and high electromagnetic compatibility (EMC) standards.
Versatile Communication Capabilities
The module supports multiple communication protocols, including Ethernet, RS-485, CANopen, and Profibus DP, facilitating seamless integration with various industrial systems.
Typical Application Scenarios
The HIMatrix F2 DO 8 is widely used in:
-
Oil and Gas: For emergency shutdown systems (ESD) and fire & gas detection systems.
-
Power Generation: For turbine overspeed protection and generator safety interlocks.
-
Chemical Processing: For controlling safety interlocks in reactors and storage tanks.
Installation Commissioning, and Maintenance Instructions
Installation Preparation
Ensure the environment meets the specified temperature and humidity requirements. Use appropriate tools and safety equipment to secure the module in place. Connect the input and output cables according to the manufacturer’s guidelines.
Maintenance Suggestions
Regularly inspect the module for signs of wear or damage. Keep the unit clean and free from dust to prevent overheating and ensure efficient operation. Perform annual calibration checks and store calibration data in the module’s flash memory.
