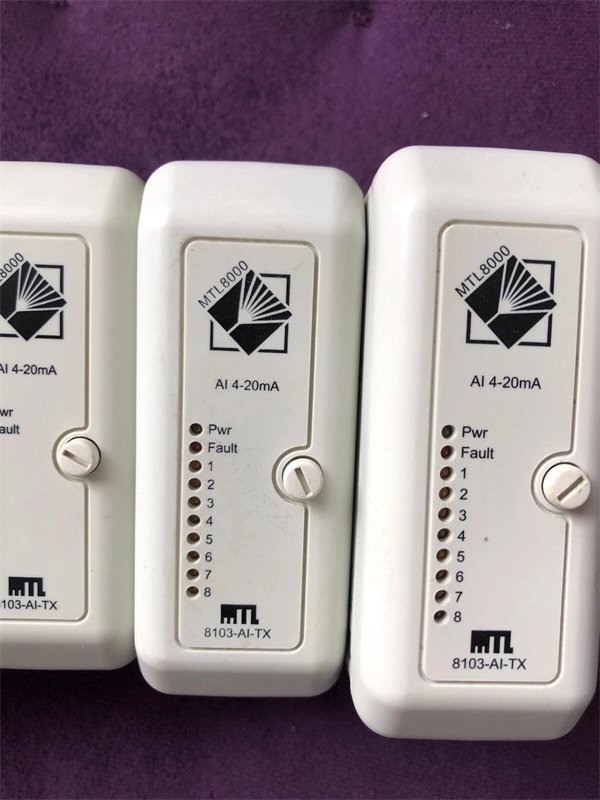

MTL 8103-AI-TX Analog Input Module
Manufacturer: MTL (Eaton)
Product Number: 8103-AI-TX
Category: 8-Channel Analog Input Module (MTL8000 Series)
Number of Channels: 8
Input Signal Types: 4-20 mA
Resolution: 16 bits
Accuracy: ±0.1% of full scale
Isolation: 500 V
Operating Temperature: -20°C to +60°C
Application: Industrial automation and process control
Product Description
The MTL 8103-AI-TX is an 8-channel analog input module designed for industrial automation and process control systems. It is part of the MTL8000 series and is engineered to provide precise and reliable signal acquisition in demanding industrial environments. This module supports single-ended 4-20 mA input channels and is suitable for use with both 2-wire and 4-wire transmitters.
Detailed Parameter Table
| Parameter Name | Parameter Value | |
|---|---|---|
| Product Model | 8103-AI-TX | |
| Manufacturer | MTL Instruments (Eaton) | |
| Product Category | Analog Input Module | |
| Number of Channels | 8 single-ended channels | |
| Input Signal Range | 4-20 mA (2- or 4-wire transmitters) | |
| Accuracy | ±0.1% of span | |
| Resolution | 16 bits | |
| Response Time | 27 ms (max) | |
| Operating Voltage | 24 Vdc (±10%) | |
| Output Voltage (@ 20 mA) | 0.5 V (min) | |
| Output Current | 32 mA (max) | |
| Communication Interface | Railbus (12V) | |
| Field Power | 2-wire Tx: 300 mA (max) | 4-wire Tx: 60 mA (max) |
| Operating Temperature Range | -20°C to +60°C | |
| Humidity Range | 5% to 95% non-condensing | |
| Dimensions (L×W×H) | 42 mm (width) | |
| Weight | 200 g | |
| Certifications | CE, UL, RoHS |
Core Advantages and Technical Highlights
High Precision and Reliability: The 8103-AI-TX features high-precision signal acquisition with an accuracy of ±0.1% of span and a 16-bit resolution, ensuring reliable and precise control. It also includes open and short circuit detection for enhanced safety.
Fast Response Time: With a response time of 27 ms, the module can quickly transmit signal changes to the control system, making it suitable for real-time monitoring and control applications.
Flexible Configuration: The module supports various configurable parameters, including alarms, input filter time constants, and input dead zones, allowing users to tailor the module to specific application requirements.
Hazardous Area Compatibility: The 8103-AI-TX is designed for use in hazardous areas, featuring non-incendive field circuits to ensure safe operation in environments with explosive gases or dust.
Communication and Integration: The module communicates via Railbus and is compatible with other MTL8000 series modules, providing seamless integration into larger control systems.
Typical Application Scenarios
The MTL 8103-AI-TX is widely used in various industrial sectors, including power plants, chemical processing, and manufacturing facilities. It is particularly useful for:
-
Process Control: Monitoring and controlling parameters such as temperature, pressure, and flow rates in chemical plants and power stations.
-
Data Acquisition and Monitoring: Integrating with SCADA systems to monitor and record the operating status of various devices and systems in real-time.
-
Hazardous Area Applications: Providing reliable signal acquisition in environments with explosive gases or dust, ensuring safe and efficient operation.
Installation, Commissioning, and Maintenance Instructions
Installation Preparation: Before installing the MTL 8103-AI-TX, ensure the environment meets the specified temperature and humidity requirements. Prepare the necessary tools, such as a screwdriver and multimeter, and ensure the installation area is free from dust and moisture. Follow the provided installation manual carefully to ensure proper grounding and connection of the module. Always disconnect the power source before starting the installation process to avoid electrical shock.
Maintenance Suggestions: Regularly inspect the 8103-AI-TX for signs of damage or wear, such as loose connections or corrosion. Clean the module periodically to remove dust and debris, which can affect performance and longevity. If any issues are detected, such as signal errors or communication failures, consult the troubleshooting guide or contact a professional for assistance. Replace any damaged components promptly to maintain optimal performance and reliability.
Service and Guarantee Commitment
The MTL 8103-AI-TX is backed by a comprehensive warranty, ensuring customer satisfaction and peace of mind. MTL Instruments offers technical support and service to assist with installation, troubleshooting, and maintenance. Our commitment to quality and customer service ensures that the 8103-AI-TX will deliver reliable performance for years to come.
